Power HD WH-80KG HV Large Scale Servo - 80kg - 0.17sec
Power HD WH-80KG HV Large Scale Servo - 80kg - 0.17sec

Power HD WH-80KG HV Large Scale Servo - 80kg, 0.17s

Brand: Power HD

Part No: HD-WH-80KG


THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.

PLEASE SEE ITEM #HD-WH-80V1 AS A REPLACEMENT

Frequently Bought With

Other items customers often buy with the Power HD WH-80KG HV Large Scale Servo - 80kg - 0.17sec

Fastrax 15T Jumbo Black Aluminium Single Servo Horn (15T Large Scale Savox/Multiplex/Hitec) Fastrax 15T Jumbo Black Aluminium Single Servo Horn (15T Large Scale Savox/Multiplex/Hitec)
$12.72

Description

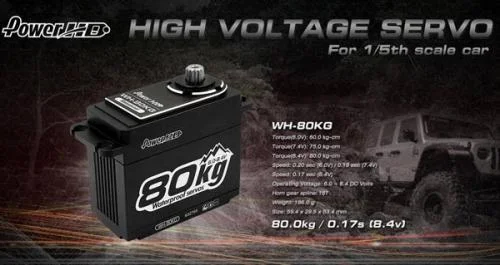

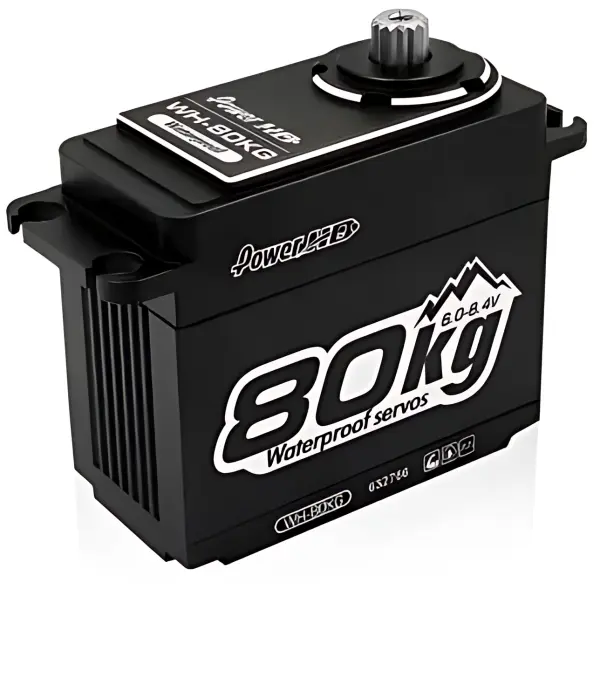

The Power HD WH-80KG (part HD-WH-80KG) is a high-voltage, steel-gear servo built for large scale models. Its oversize aluminium case aids rigidity and heat dissipation, while the 15-tooth spline provides secure horn engagement. Delivering up to 80.0 kg-cm of torque at 8.4V with a fast 0.17s transit time, it offers strong holding power and responsive control in demanding applications.

Features

  • HV operation for strong performance on 6.0–8.4V
  • Durable steel gear train
  • Oversize aluminium case for large scale models
  • 15-tooth output spline

Performance

  • 6.0V: 60.0 kg-cm / 0.20s
  • 7.4V: 75.0 kg-cm / 0.18s
  • 8.4V: 80.0 kg-cm / 0.17s

Specifications

  • Operating voltage (HV): 6.0–8.4V
  • Weight: 186 g
  • Size: 59.4 x 29.5 x 53.4 mm
  • Spline: 15T
  • Brand: Power HD
  • Part number: HD-WH-80KG
  • EAN: 6929188008018
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD WH-80KG HV Large Scale Servo - 80kg - 0.17sec Manuals & Guides

Specifications

HV, Steel Gear - Oversize aluminium casefor large scale models - 15 tooth spline
6.0V : 60.0 kg-cm / 0.20s
7.4V : 75.0 kg-cm / 0.18s
8.4V : 80.0 kg-cm / 0.17 s
HV：6.0 ~ 8.4 Volts
Weight : 186 g
Size：59.4 x 29.5 x 53.4 mm

EAN : 6929188008018



Key Info:
  • Brand: Power HD
  • Part No: HD-WH-80KG
  • Barcode: 6929188008018
  • Max Voltage: 7.4v
  • Gear Material: Metal

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
Would this servo fit in the arms kraton 8s
Jordan Wilson / 17th January 2024

Yes this will fit in that car, you may need to make sure you have both servo mounts available

Si @ Wheelspin Models
will this fit on a losi 5t?
Adam Starzec / 18th April 2023

Yes that should fit fine.

Steve @ Wheelspin Models
Will this fit a Traxxas sledge
Dan / 23rd February 2023

NO, due to the fitment of the Traxxas servo this would not fit that car.

Si @ Wheelspin Models
Hi, will this fit the Xmaxx without cutting the chassis?
Stuart Mcgauley / 22nd January 2023

Due to the mounting style of the servo on the X maxx No, this would not fit as a standard replacement

Si @ Wheelspin Models
