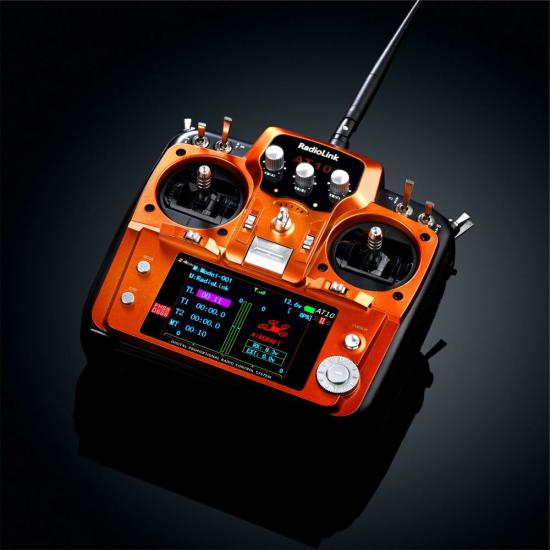

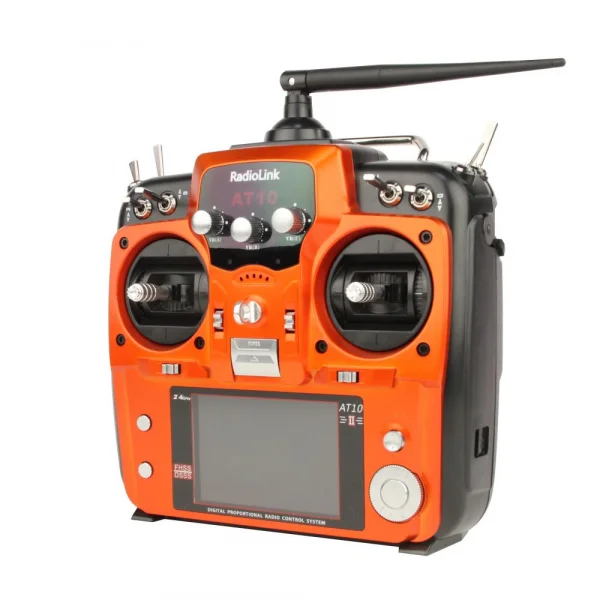

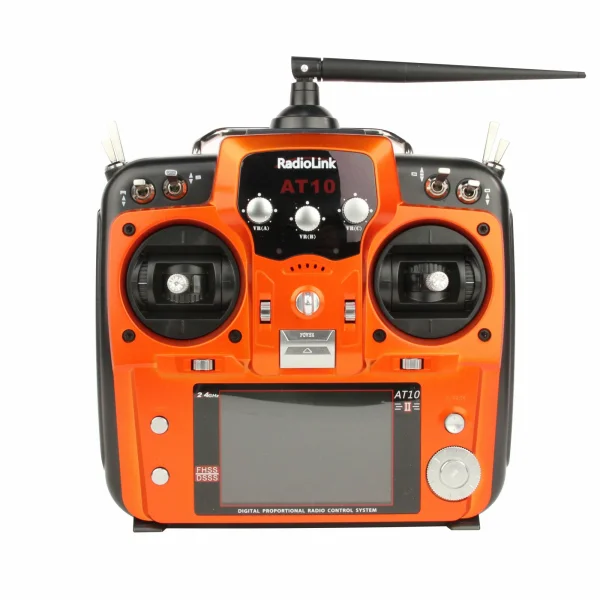

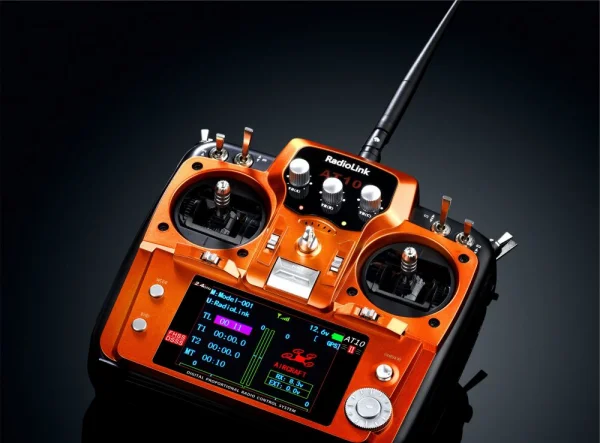

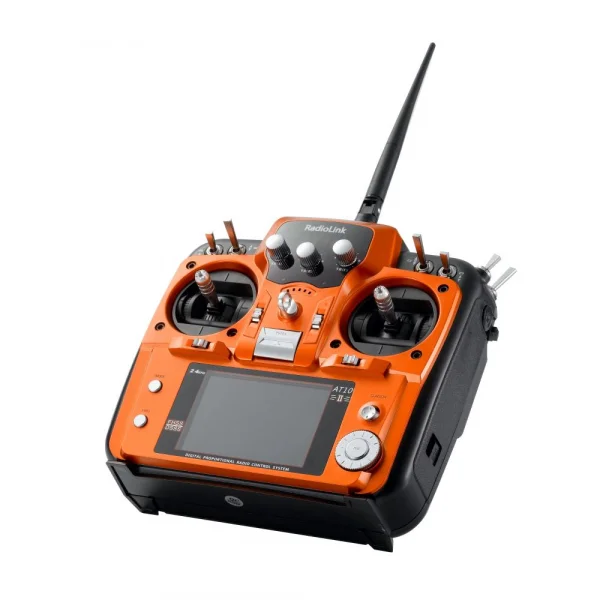

RadioLink AT10II 12 Channel Transmitter with R12DS Receiver
Brand: RadioLink
Part No: RLKT121006
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
The RadioLink AT10II 12 Channel Transmitter with R12DS Receiver brings a capable, telemetry-ready 2.4GHz system to intermediate and experienced pilots. Built on FHSS and DSSS frequency-hopping technology, it offers a fast link, strong interference rejection and confident control. With an intuitive colour LCD interface, deep mixing options and ergonomic design, this RLKT121006 set is designed to make setup straightforward across a wide range of RC aircraft.
Highlights and Capability
- 12 channels with 15-model memory and intuitive programming via colour LCD.
- FHSS & DSSS spread spectrum for robust, responsive control and enhanced interference rejection.
- Telemetry as standard: receiver battery voltage and RSSI; motor pack voltage via the included PRM-01 sensor. GPS telemetry available with the optional TS100 sensor.
- Comprehensive setup tools: end point adjustment, sub trim, servo reverse, dual rates, exponential, throttle cut, fail-safe and three timers.
- Advanced mixing library: 8 programmable mixes, throttle curve/delay, swash ring and 90/120 CCPM; helicopter functions including governor, hover throttle/pitch and revolution mix.
- Fixed-wing and glider functions: flaperon, aileron differential, camber flap/mix, butterfly/spoiler and elevator coupling, snap roll, elevon, V-tail and ailevator.

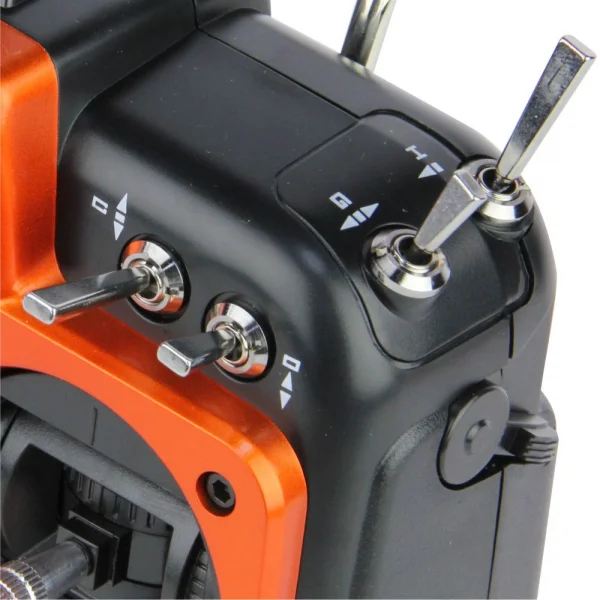

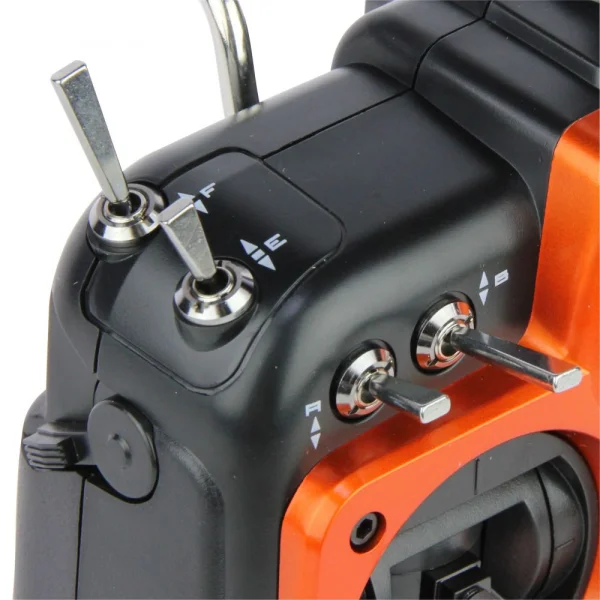

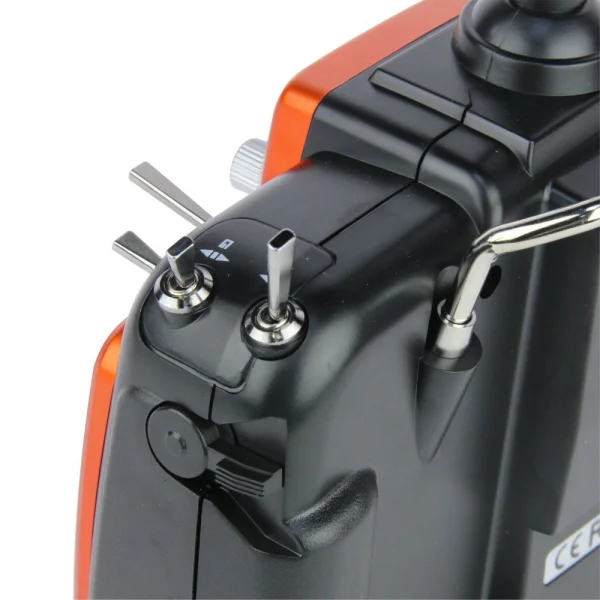

- Control hardware: 4 x two-position switches, 3 x three-position switches, 1 x momentary return switch and 2 x proportional sliders.
- Practical details: mode-change capable, wide 7.4–15V input range, reverse-polarity protection, digital trims, sturdy metal carry handle and firmware updates via micro USB.
- Offers suggested compatibility with S-BUS systems and wireless trainer linking via the optional R8FM module.
- 4096-step resolution for precise servo control.
Model Categories Catered For
- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
What’s Included
- AT10II 2.4GHz 12-channel transmitter
- R12DS 12-channel receiver
- Throttle stick spring retainer
- PRM-01 telemetry voltage sensor (flight pack)
Required to Complete
- 8 x AA-size batteries for the transmitter
Secured by Stripe
RadioLink may well be a name that’s new to you but, rest assured, the protocol and the brand’s assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you’ll not only love for its features and flexibility but one you’ll grow to adore for its comfort, ease of use and solid dependability. And we haven’t even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that’ll raise an enlightened eyebrow, and receiver prices that’ll have you reaching for your wallet, RadioLink has been radio modelling’s the best kept secret of recent times… But not anymore!
An updated version of the popular AT10, the AT10II, 2.4GHz upper mid-range, telemetry-capable transmitter now has 12 channels and, like its predecessor, offers a furure-proof feature-set to suit the intermediate / experienced model pilot. With an expanding hangar comes a requirement for a transmitter with an all-encompassing capability and enough channels to cope with the multi-functionality that complex model aircraft so often demand. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid radio link. But, of course, there’s far more to it than that. If you’re an experienced flyer a quick look at the specification will confirm that this is all the transmitter wants for very little. Moreover, with amazingly competitive receiver pricing you’ll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of the AT10II’s intuitive programming, colour LCD, telemetry features, wireless trainer link capability and striking good looks.
Comprehensive feature list:
Model categories catered for
- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
Special functions
- End Point Adjustment
- Sub Trim
- Servo Reverse
- Gyro Sense
- Dual Rate
- Exponential
- Throttle Cut
- Fail-safe
- Three timers
- Trainer Function
- Servo Monitor
- Trim Step
- Idle Down
- Flaperon
- 8 programmable mixers
- Flap Trim
- Aileron Differential
- Air Brake
- Elevator / Flap Mixing
- Snap Roll
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Throttle Delay
- Gyro Sense
- Servo Speed
- Ailevator Mixing
- Revolution Mix
- Hover Throttle
- Hover Pitch
- High / Low Pitch
- Governor
- Throttle Mix
- Swash Ring
- Camber Flap
- Camber Mix
- Butterfly
- Butterfly / Elevator Mix
- Spoiler Mix
- Flight Conditions
- Specification:
| Length (mm): | 185 |
| Height (mm): | 213 (aerial folded) |
| Width (mm): | 70 (case only) |
| Weight (g): | 859 |
RadioLink AT10II 12 Channel Transmitter with Receiver (Orange) Tech Specs:
RadioLink AT10II 12 Channel Transmitter with Receiver (Orange) Key Features:
- RadioLink may well be a name that's new to you but, rest assured, the protocol and the brand's assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you'll not only love for its features and flexibility but one you'll grow to adore for its comfort, ease of use and solid dependability. And we haven't even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that'll raise an enlightened eyebrow, and receiver prices that'll have you reaching for your wallet, RadioLink has been radio modelling's the best kept secret of recent times But not anymore!
An updated version of the popular AT10, the AT10II, 2.4GHz upper mid-range, telemetry-capable transmitter now has 12 channels and, like its predecessor, offers a furure-proof feature-set to suit the intermediate / experienced model pilot. With an expanding hangar comes a requirement for a transmitter with an all-encompassing capability and enough channels to cope with the multi-functionality that complex model aircraft so often demand. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid radio link. But, of course, there's far more to it than that. If you're an experienced flyer a quick look at the specification will confirm that this is all the transmitter wants for very little. Moreover, with amazingly competitive receiver pricing you'll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of the AT10II's intuitive programming, colour LCD, telemetry features, wireless trainer link capability and striking good looks.Comprehensive feature list:
Model categories catered for- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
Special functions- End Point Adjustment
- Sub Trim
- Servo Reverse
- Gyro Sense
- Dual Rate
- Exponential
- Throttle Cut
- Fail-safe
- Three timers
- Trainer Function
- Servo Monitor
- Trim Step
- Idle Down
- Flaperon
- 8 programmable mixers
- Flap Trim
- Aileron Differential
- Air Brake
- Elevator / Flap Mixing
- Snap Roll
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Throttle Delay
- Gyro Sense
- Servo Speed
- Ailevator Mixing
- Revolution Mix
- Hover Throttle
- Hover Pitch
- High / Low Pitch
- Governor
- Throttle Mix
- Swash Ring
- Camber Flap
- Camber Mix
- Butterfly
- Butterfly / Elevator Mix
- Spoiler Mix
- Flight Conditions
Specification:
Length (mm): 185 Height (mm): 213 (aerial folded) Width (mm): 70 (case only) Weight (g): 859 - 12 Channels.
- 15 Model Memory.
- Colour LCD.
- DSSS & FHSS spread spectrum protocol.
- Rx battery and RSSI (Receiver Signal Strength Indicator) telemetry as standard.
- Mode change capable.
- Wide (7.4 to 15V) voltage range input.

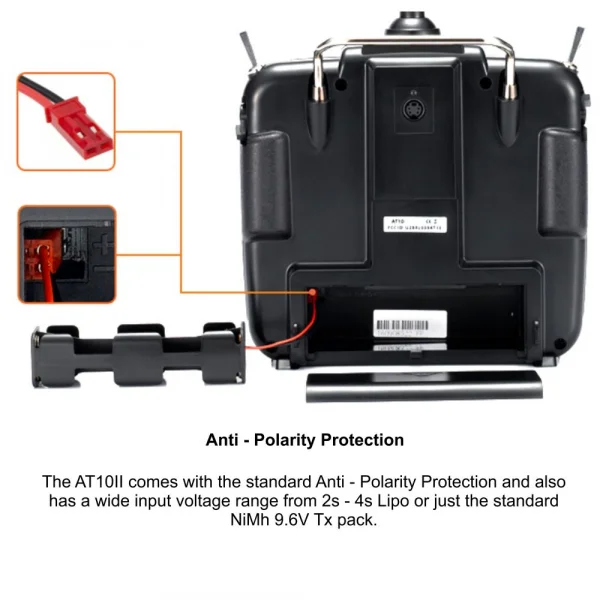

- Tx battery reverse polarity protection.
- Updatable firmware via micro USB port.
- 4096 bit resolution.
- Tx and Rx low battery voltage warning (as standard).
- Motor battery voltage warning (with supplied PRM-01 sensor).
- 90 and 120 CCPM Mixing.
- GPS telemetry (with optional TS100 sensor).
- 4 x two-position, 3 x three-position and 1 x return switch.
- 2 x proportional slider controls.
- Wireless trainer compatibility (with optional R8FM module).
- Intuitive programming.

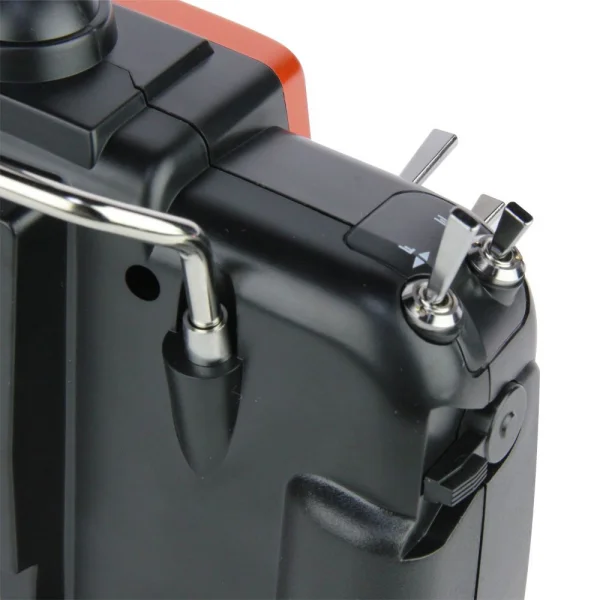

- Sturdy metal carry handle.
- Digital trims.
- Comfortable ergonomic design.
- S-BUS compatible.
What's in the Box:
- 1x AT10II 2.4GHz 12-channel transmitter.
- 1x R12DS 12-channel receiver.
- 1x Throttle stick spring retainer.
- 1x PRM-01 telemetry voltage sensor (flight pack).
Needed to Complete:
- 8 x AA-size batteries for the transmitter
Manuals & Parts Explosions:
RadioLink AT10II 12 Channel Transmitter with Receiver (Orange) Tech Specs:
- Weight: 950g / 33.51oz
- Shipping Weight: 1.06kg / 2.33lbs
- Product Height: 220mm / 8.66in
- Product Length: 180mm / 7.09in
- Channels: 12
- Model Memory: 15
- Colour: Orange
Key Info:
- Brand: RadioLink
- Part No: RLKT121006
- Barcode: 5051121229615
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No only spektrum will link with spektrum transmitters
yes it can , it comes with a tension spring which can be fitted.
No, this is for aircraft, nothing stops you putting it on a car but the throttle stick is not spring loaded so will not return to neutral on its own.
Yes this does have mixing on it.
Out the box yes - but you can configure it for either left or right hand throttle
Yes you can change the mode on these
Yes
The receivers are item R12DS
