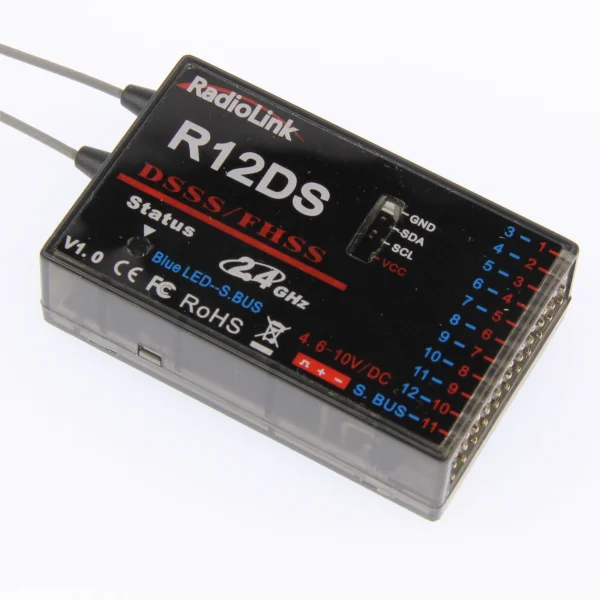

RadioLink R12DS 2.4GHz 12 Channel Receiver
Brand: RadioLink
Part No: RLKR121001
£30.59
RRP £33.99
In Stock: Usually ships same day
The RadioLink R12DS 2.4GHz 12 Channel Receiver (part no. RLKR121001) is a compact, high-resolution receiver designed for versatile radio control setups. It offers S-Bus/PPM and PWM outputs, integrated telemetry, and the RL-Advanced radio protocol for responsive, stable linking in a wide range of RC models.
Key Features

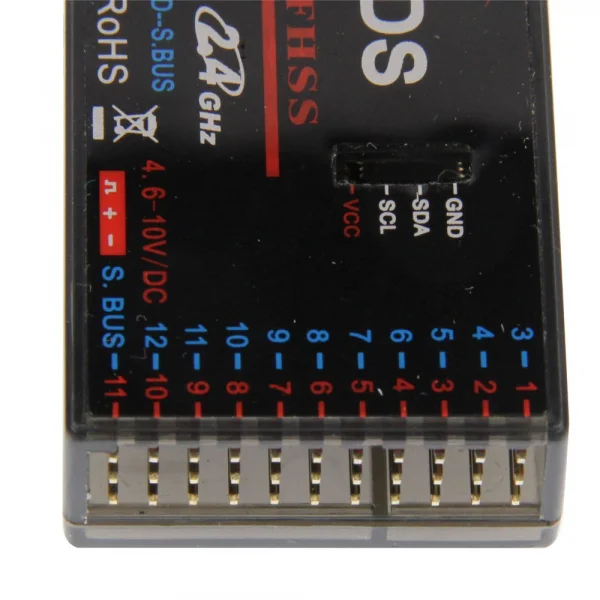

- 12 channels via S-Bus/PPM, plus 12-channel PWM output
- Channel output modes: S-Bus / PPM and PWM
- Precision: 4096 steps, 0.25 microseconds per section
- Integrated telemetry: signal strength (RSSI) and receiver voltage
- External telemetry supported via PRM-01 and PRM-02 modules
- Working voltage: 4.8–10 V
- Working current: 38–45 mA @ 5 V
- Control distance: about 4 kilometres (air). Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations.
- Radio protocol: RL-Advanced
Weights & Dimensions
- Weight: 14 g
- Length: 50 mm
- Width: 32 mm
Suggested Compatibility
- AT9
- AT9S
- AT10
- AT10II
Secure Payments
Secured by Stripe
Key Features
- Channels: 12 channels S-Bus / PPM, 12 channels PWM
- Compatibility: AT9,AT9S, AT10, AT10II
- Channel output: S-Bus / PPM & PWM
- Working current: 38 - 45mA @ 5v
- Precision: 4096 , 0.25us per section
- Telemetry: integrate telemetry sensor including signal strength and voltage
- External telemetry: supported by module PRM-01 and module PRM-02
- Working voltage: 4.8 - 10v
- Control distance: about 4 kilometers air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Weights & Dimensions
| Weight | 14g | 0.49oz |
| Shipping Weight | 0.02kg | 0.04lbs |
| Product Width | 32mm | 1.24in |
| Product Length | 50mm | 1.97in |
- Radio Protocol: RL-Advanced
Key Info:
- Brand: RadioLink
- Part No: RLKR121001
- Barcode: 5051121229578
- Frequency: 2.4Ghz
- Channels: 9+ Channel
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
compatable with futaba FHSS?
David Poulter / 29th August 2019
No, this is not compatible with Futaba transmitters
