RadioLink R8EF 2.4GHz 8-Channel Receiver
Brand: RadioLink
Part No: RLKR081005
£13.49
RRP £14.99
Backorder: Expected 30th July 2026
Request Stock NotificationFinance options available at checkout.
Description

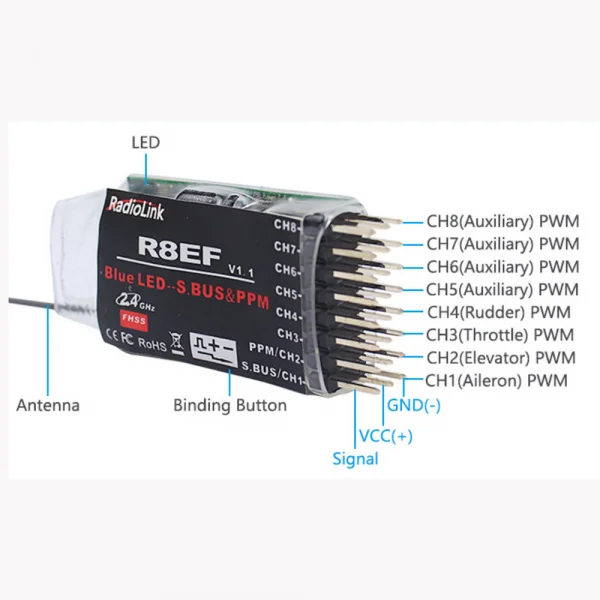

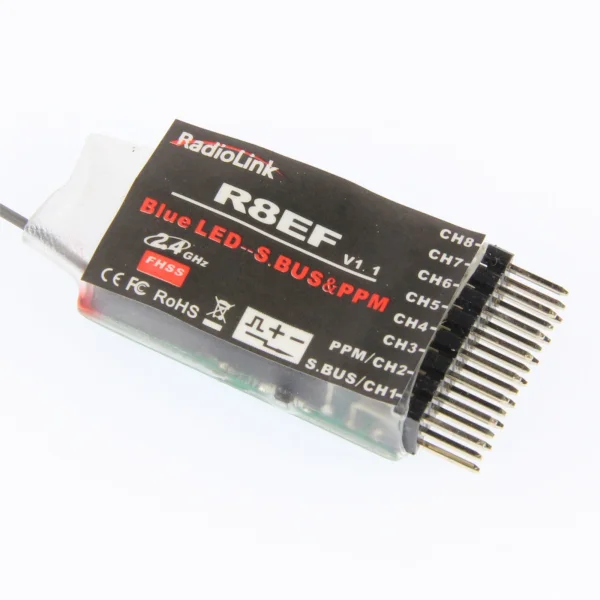

The RadioLink R8EF 2.4GHz 8-Channel Receiver (RLKR081005) is a compact, lightweight RL-Basic protocol receiver designed for reliable multi-channel control in RC models. It offers S-Bus, PPM and PWM output options to suit a wide range of setups while maintaining low latency and high resolution.
Key Features
- Suggested compatibility: RadioLink T8FB transmitter only (RL-Basic protocol)
- Channels: 8
- Working voltage: 4.8V–10V
- Working current: 30mA (input voltage 5V)
- 2048 resolution: 0.5µs per section
- Control distance: 500m ground / 1000m air (actual distance depends on environment)
- S-Bus: output CH1
- PPM: output CH2
- PWM: outputs CH1–CH8; can also be used in conjunction with S-Bus from CH3–CH8
- Radio protocol: RL-Basic
Weights & Dimensions
- Weight: 7g
- Product size: 49mm (L) x 21mm (W) x 11mm (H)
- Shipping weight: 0.01kg
Secure Payments
Secured by Stripe
RadioLink R8EF 2.4GHz 8-Channel Receiver Manuals & Guides
How-To Guides & Articles
Specifications
Key Features
- Compatible with T8FB Tx Only
- Channels: 8 channels
- Working voltage: 4.8v - 10v
- Working current: 30mA (input voltage 5v)
- 2048 precision: 0.5us per section
- Control distance: 500m ground and 1000m air, actual control distance depends on the environment used
- S-Bus: output CH1
- PPM: output CH2
- PWM: output CH1 - CH8, can also be used is conjunction with S-Bus from CH3 - CH8
Weights & Dimensions
| Weight | 7g | 0.25oz |
| Shipping Weight | 0.01kg | 0.02lbs |
| Product Height | 11mm | 0.43in |
| Product Width | 21mm | 0.83in |
| Product Length | 49mm | 1.91in |
- Radio Protocol: RL-Basic
Key Info:
- Brand: RadioLink
- Part No: RLKR081005
- Barcode: 5051121229523
- Frequency: 2.4Ghz
- Channels: 8 Channel
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Write a Review
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
will this work with the radiolink rc8x transmitter to be used in a rc car thanks Wayne Rogers
Wayne / 22nd February 2024
Yes that will work but this is the recommended one RLKR081007
Steve @ Wheelspin Models
Can the RadioLink R8EF Receiver supplied with the Tx be used for model boats or will I need to order a different receiver?
Thank you.
Rob / 17th June 2020
Yes you could use it with a boat if you wish
Ben @ Wheelspin Models
