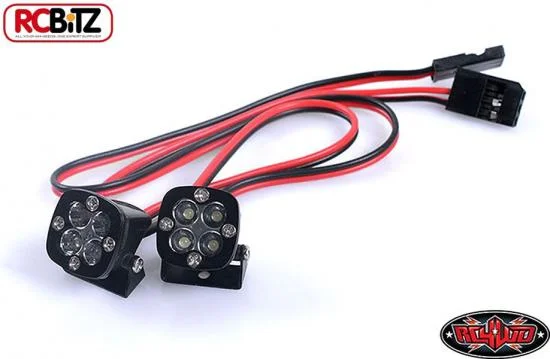

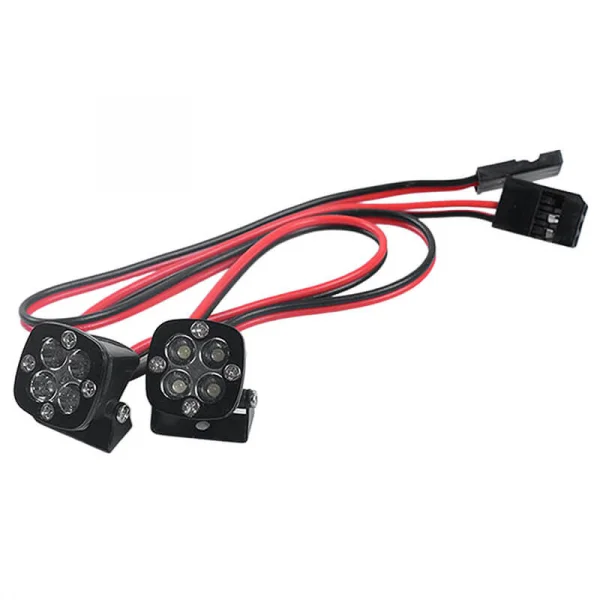

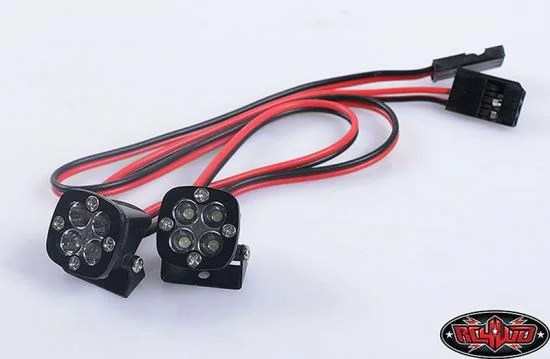

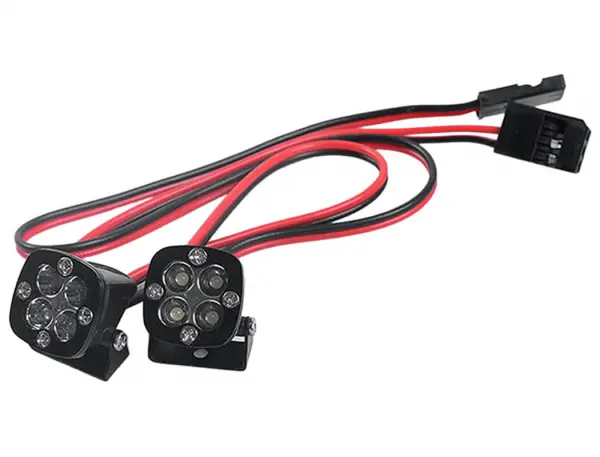

RC4WD 1:10 Baja Designs Squadron Pro LED Lights

Bring scale realism and serious illumination to your 1:10 build with the licensed RC4WD 1:10 Baja Designs Squadron Pro LED Lights (Z-E0066). Compact, lightweight and versatile, these four-LED pods deliver super-bright output and include adjustable brackets to fine-tune the beam angle. Designed by RC4WD in partnership with Baja Designs, they’re a great fit for a wide range of scale trucks and crawlers, with power options suited to 2S and 3S LiPo.

Each light features a standard receiver-style plug for simple routing, with optimal brightness achieved when powered directly from your battery. A Baja Designs decal sheet is included to finish the look.

Features & Specifications

• Licensed Baja Designs scale light pods
• Plastic moulded housing
• Adjustable bracket for rotating light
• 4 individual LED bulbs for super bright lighting
• Standard receiver plug; connects to extra channel on receiver
• Connects directly to battery; capable of 11.1V (3S)
• 2mm mounting holes
• Overall length: 0.57in / 14.5mm
• Light bar width: 0.52in / 13.4mm
• Overall height: 0.57in / 14.7mm
• Light bar height: 0.55in / 14.2mm
• Weight: 0.1oz / 3g

What’s Included

• 2x RC4WD 1/10 Baja Designs Squadron Pro LED Lights
• 1x Baja Designs decal sheet

Replacement Hardware

• M2 x 6mm Steel Socket Head Cap Screws (Black) (Z-S0611)
• M1.4 x 3mm Phillips Button Head (Silver)
• M1.2 x 3mm Phillips Flat Head (Silver)

Optional Parts

• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)
• RC4WD Strobe Lighting Unit (Z-S1573)

Notes

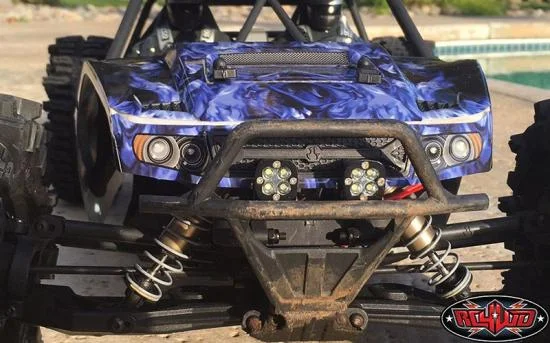

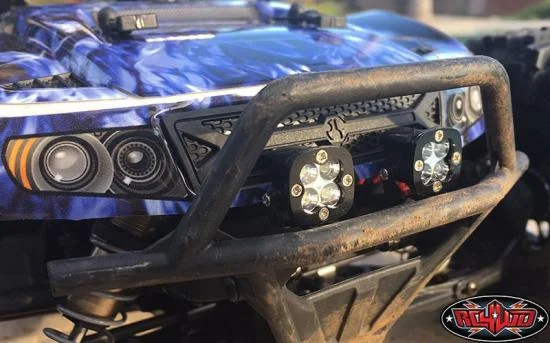

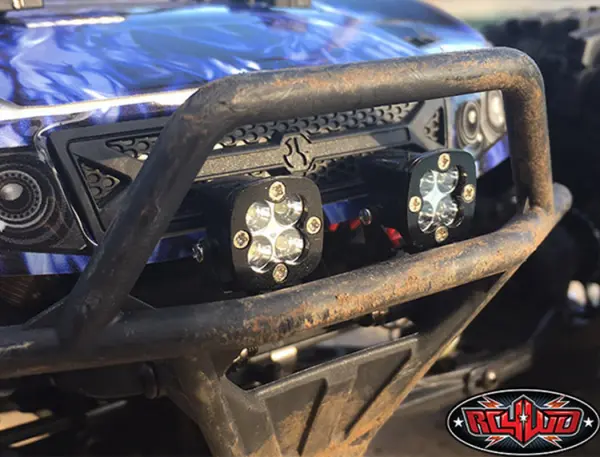

• Suggested compatibility: Axial Yeti 1/10. Shown installed with Axial Yeti 1/10 for example (vehicle not included).
• For full brightness, power directly from a 2S or 3S LiPo, or use a BEC to supply sufficient power. The receiver alone may not provide enough current.
• Mounting hardware available as M2 SHCS / M2 BHCS.
• Recon G6 Certified. Baja Designs is a registered trademark used under licence to RC4WD.
