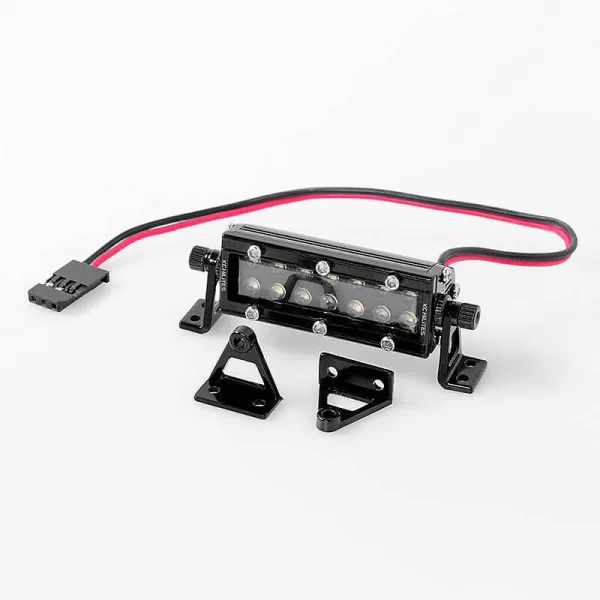

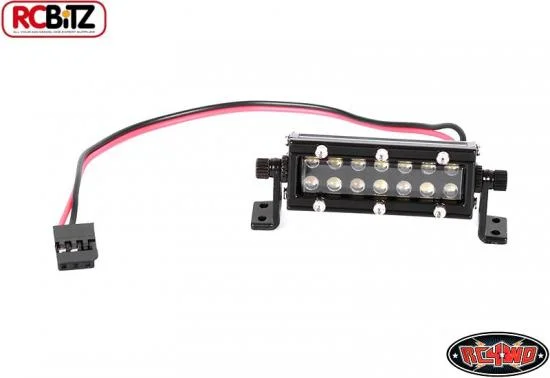

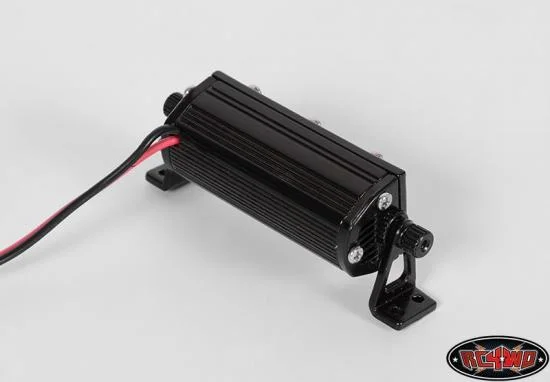

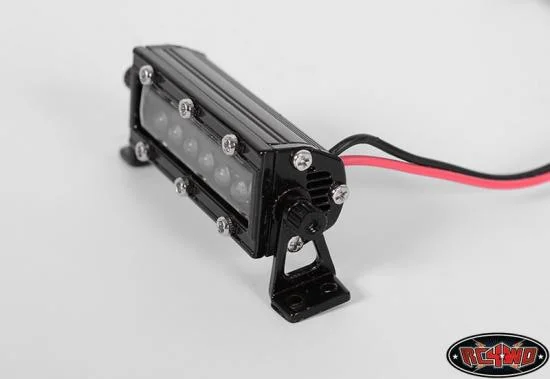

RC4WD 1:10 High Performance LED Light Bar (40mm)

RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5")
This is the all new Licensed KC HiLiTES Light Bar. These have been Officially Licensed by the KC HiLiTES Company and are only available from RC4WD and our Dealers. Will make any project look better and add much needed lighting.
Specifications:

• Cast Molded Housing
• Reversible "L" brackets to fit many applications
• Adjustable "L" brackets for rotating light
• 14 Individual LED bulbs
• Super Bright Lighting
• Vented on side to dissipate heat
• Works with up to 11.1v lipo with use of a BEC to regulate voltage below 7.4 volts
• Standard Receiver Plug
• 2mm Mounting Holes
• Overall Length: 2.2in / 56mm
• Light Bar Width: 1.57in / 40mm
• Overall Height: 0.81in / 20.8mm
• Light Bar Height: 0.63in / 16.2mm
• Weight: 0.88oz / 25g

Detail like no other lights out there! We leave our competition in the dark.
Shown installed with Tough Armor front Bumper for G2 Cruiser (Z-S1606) for example (Not Included)
Shown installed with Tough Armor front Bumper for G2 Cruiser (Z-S1606) and RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)
What's Included:

• 1x RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5")
• 2x Light Mounts

• 1x KC HiLiTES Decal Sheet

Replacement Hardware:

• 6x M1.5 x 6mm SHCS (Silver) (Z-S1012)
• 6x M1.6 x 6mm Phillips Button Head (Silver) (Z-S1387)
• RC4WD Light Bar Knurled Nuts (Z-S1484)

Optional Parts:

• Y Harness with Tamiya Connectors for Light Bars (Z-S1601)
• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)
• RC4WD Strobe Lighting Unit (Z-S1573)


Notes:

• Use medium grade thread lock on "L" bracket nut to prevent loss and to keep the light in position.
• Mounting hardware can be found here. M2 SHCS / M2 BHSC
• Unit needs to be directly connected to battery of 7.4 volts. Can also be connected to 11.1volts with use of BEC.
• While the light bar comes with a standard receiver plug, this is only for ease of use. The receiver will not provide enough power for the light bar causing it to be dim. If you want the light to be brighter, you will need to power it directly from your battery or use a BEC to get more power to your receiver.
• Fits Tough Armor front Bumper for G2 Cruiser (Z-S1606)
• Fits Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
• Fits RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
• Fits RC4WD Rampage Front Recovery Bumper (Z-S0997)
• Fits Tough Armor Wide Winch Bumper with Winch Bar (Z-S1162)
• Fits RC4WD Rampage Front Double Tube Bumper with Hoop for Trail Finder 2 SWB (Z-S1558)
• Fits Tough Armor Tube Front Winch Bumper for Vaterra Ascender (Z-S1575)
• Fits Tough Armor Winch Bumper with Grill Guard to fit Axial SCX10 (Z-S0160)
• Fits Tough Armor Stubby Front Bumper to fit Axial SCX10 (Z-S0641)
• Fits Tough Armor Competition Stinger Bumper for Axial SCX10 (Z-S0640)
• Fits RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
• Fits RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
• Fits Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)

KC HiLiTES and the KC HiLiTES name are registered trademarks of KC HiLiTES Company. The KC and KC HiLiTES logo is property of KC HiLiTES Company and used under license to RC4WD.

Key Info:

• Brand: RC4WD
• Part No: Z-E0054
• Barcode: 639302580301
