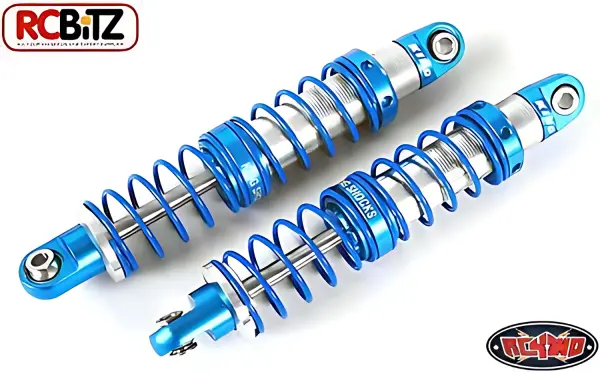

RC4WD King Off-Road Scale Dual Spring Shocks (80mm)
Brand: RC4WD
Part No: Z-D0035
Shadow Stock: Usually ships next day
Give your scale crawler a premium suspension upgrade with the RC4WD King Off-Road Scale Dual Spring Shocks (80mm). Officially licensed by King Off-Road Shocks and machined from billet aluminium, these dampers deliver a realistic look and a durable, dual-spring design ready for rocky terrain. Part number Z-D0035 supplies a matched pair.
Key Features

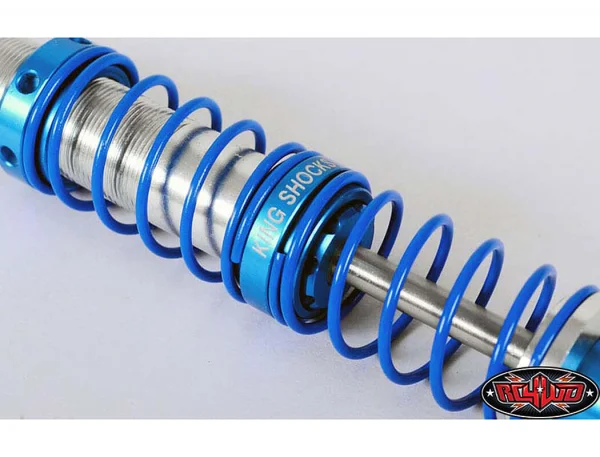

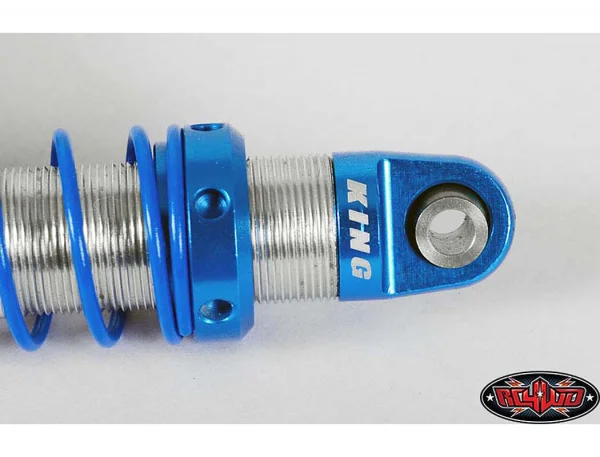

- Officially licensed King Off-Road design with King markings on the cap and retainer ring
- Machined billet aluminium construction
- Dual spring design for a detailed scale appearance
- Built to handle rock crawling and tough trail use
Specifications
- Hole-to-hole (compressed): 2.40in / 61mm
- Hole-to-hole (uncompressed): 3.14in / 80mm
- Overall length: 3.49in / 88.8mm
- Travel length: 0.74in / 19mm
- Shock body OD: 0.39in / 10mm
- Spring body OD: 0.57in / 14.5mm
- Shaft diameter: 0.13in / 3.5mm
- Weight (each): 0.65oz / 18g
What’s Included

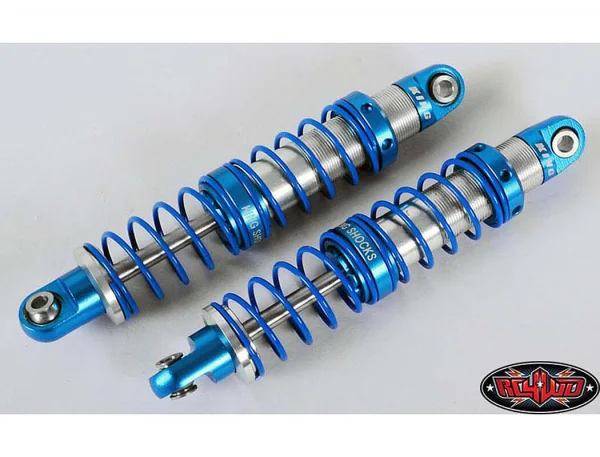

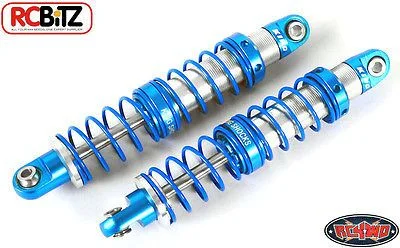

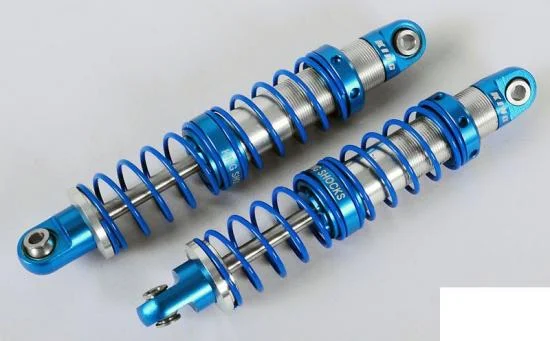

- 2x RC4WD King Off-Road Scale Dual Spring Shocks (80mm)
Notes & Suggested Compatibility

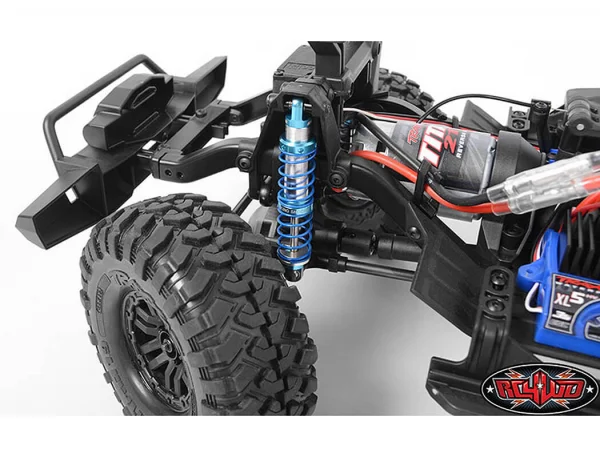

- Shown installed on Traxxas TRX-4 with 2mm Black Spacer with M3 Hole (Z-S0600) and 3mm Black Spacer with M3 Hole (Z-S0806) for example only (spacers not included).
- Suggested compatibility includes: RC4WD Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc"), RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001), and Traxxas TRX-4 when used with both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 holes.
- Apply blue (medium) thread lock to the bottom shock shaft rod end before installation.
Replacement Parts
- Center Spring Retainer for King Offroad Shocks (Z-S0706)
- Lower Spring Retainer for King Offroad Shocks (Z-S0707)
- Shock Ball End for Bottom of King Offroad Shocks (Z-S0708)
- Replacement Shock Shafts for King Shocks (80mm) (Z-S0786)
- Shock Cap for Top of King Offroad Shocks (Z-S0866)
- Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
Optional Parts
- RC4WD 80mm King Scale Shock Spring Assortment (Z-S1121)
- Shock Cap for Top of King Offroad Shocks (Z-S0866)
Secured by Stripe
RC4WD King Off-Road Scale Dual Spring Shocks (80mm)
These are the all new Licensed Scale Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Specifications:
- Machined Billet Aluminum
- King Listed on Top and Retainer Ring
- Dual Spring Design
- Hole to Hole (Compressed): 2.40in / 61mm
- Hole to Hole (Uncompressed): 3.14in / 80mm
- Overall Length: 3.49in / 88.8mm
- Travel Hength: 0.74in / 19mm
- Shock Body OD: 0.39in / 10mm
- Spring Body OD: 0.57in / 14.5mm
- Shaft Diameter: 0.13in / 3.5mm
- Weight: 0.65oz / 18g
Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)
What's Included:
- 2x RC4WD King Off-Road Scale Dual Spring Shocks (80mm)
Notes:
- Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc")
- Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
- Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
- Fit Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
Replacement Parts:
- Center Spring Retainer for King Offroad Shocks Z-S0706
- Lower Spring Retainer for King Offroad Shocks Z-S0707
- Shock Ball End for Bottom of King Offroad Shocks Z-S0708
- Replacement Shock Shafts for King Shocks (80mm) Z-S0786
- Shock Cap for Top of King Offroad Shocks Z-S0866
- Rebuild Kit for Scale King, ARB & Superlift Shocks Z-S0788
- RC4WD 80mm King Scale Shock Spring Assortment (Z-S1121)
- Shock Cap for Top of King Offroad Shocks (Z-S0866)
Key Info:
- Brand: RC4WD
- Part No: Z-D0035
- Barcode: 091037075567
