RC4WD Superlift Superide 80mm Scale Shock Absorbers
Brand: RC4WD
Part No: Z-D0012
£36.09
RRP £37.99
Out Of Stock
Request Stock NotificationThe RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012) are licensed by Superlift Suspension Systems and bring authentic scale looks with dependable performance. CNC machined from billet aluminium with a smooth white painted finish, these shocks feature a new internal spring design and come ready to handle rocky trails and detailed scale builds.
Features & Specifications
- Licensed from Superlift Suspension Systems
- CNC machined, billet aluminium construction
- Smooth white painted finish
- Internal spring design with new internal layout
- Included Superlift decal
- Uses shock boots (see Notes)
- Hole to hole (compressed): 2.38in / 60.5mm
- Hole to hole (uncompressed): 3.14in / 80mm
- Overall length: 3.5in / 89mm
- Travel length: 0.76in / 19.5mm
- Shock body diameter: 0.39in / 10mm
- Shaft diameter: 0.137in / 3.48mm
- Decal size (length): 0.98in / 25mm
- Decal size (width): 0.31in / 8mm
- Each weight: 0.38oz / 11g
What’s Included
- 2x RC4WD Superlift Superide 80mm Scale Shock Absorbers
- 2x Superlift Superide SS Decal 9.3mm x 28mm (Blue)
- 2x Superlift Superide Decal 9.3mm x 28mm (Yellow)
- 2x Superlift Superide Decal 5.6mm x 19mm (Blue)
- 2x Superlift Superide Decal 5.6mm x 19mm (Yellow)
- 1x Superlift Decal Sheet
Optional Parts
- Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)
Replacement Parts
- Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
Notes
- Black Rubber Boot: Z-S0891
- Red Rubber Boot: Z-S0948
- Yellow Rubber Boot: Z-S0962
- Blue Rubber Boot: Z-S0961
- Use blue (medium) thread lock on the bottom shock shaft rod end during installation.
Suggested Compatibility
- Traxxas TRX-4 when used with 2mm Black Spacer with M3 Hole (Z-S0600) and 3mm Black Spacer with M3 Hole (Z-S0806)
- Shown installed for example on RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
- Shown installed for example on RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Other Sizes
- RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
- RC4WD Superlift Superide 100mm Scale Shock Absorbers (Z-D0032)
Secure Payments
Secured by Stripe
RC4WD Superlift Superide 80mm Scale Shock Absorbers
This is the all new Licensed Scale Shock to hit the market. Licensed from Superlift Suspension Systems. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.
Specifications:
- CNC Machined
- Billet Aluminum
- Smooth White Painted Finish
- Internal Spring Design
- New Internal Design
- Included Superlift Decal
- Uses Shock Boots (details below)
- Hole to hole (Compressed): 2.38in / 60.5mm
- Hole to hole (Uncompressed): 3.14in / 80mm
- Overall Length: 3.5in / 89mm
- Travel Length: 0.76in / 19.5mm
- Shock body: 0.39in / 10mm
- Shaft Diameter: 0.137in / 3.48mm
- Decal Size (Length): 0.98in / 25mm
- Decal Size (Width): 0.31in / 8mm
- Each Weight: 0.38oz / 11g

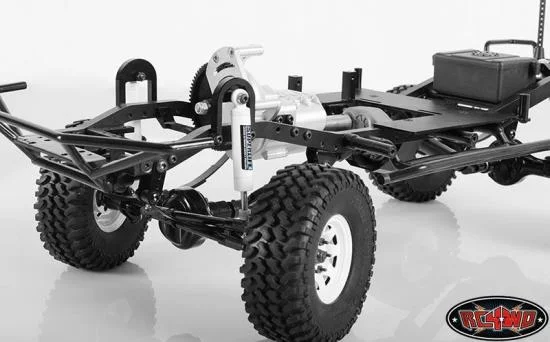

Shown installed on the RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) for example (Not Include)
Different Shocks boots shown installed on 80mm Superlift shock for example (Not Included)

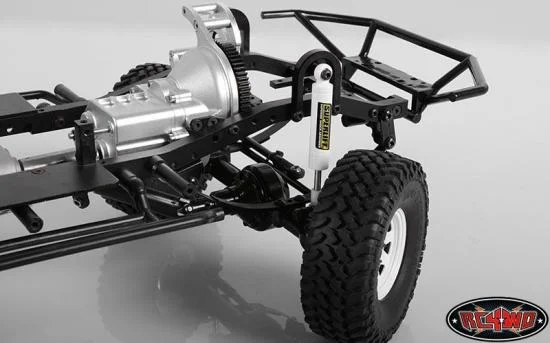

Shown installed with RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)
Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)
What's Included:
- 2x RC4WD Superlift Superide 80mm Scale Shock Absorbers
- 2x Superlift Superide SS Decal 9.3mm x 28mm (Blue)
- 2x Superlift Superide Decal 9.3mm x 28mm (Yellow)
- 2x Superlift Superide Decal 5.6mm x 19mm (Blue)
- 2x Superlift Superide Decal 5.6mm x 19mm (Yellow)
- 1x Superlift Decal Sheet
Optional Parts:
- Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)
Replacement Parts:
- Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
- For Black Rubber Boot Z-S0891
- For Red Rubber Boot Z-S0948
- For Yellow Rubber Boot Z-S0962
- For Blue Rubber Boot Z-S0961
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
Other Sizes:
- RC4WD Superlift Superide 90mm Scale Shock Absorbers Z-D0015
- RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032
Key Info:
- Brand: RC4WD
- Part No: Z-D0012
- Barcode: 610373636890
