S6260 High Speed HV Dig Servo
Brand: Spektrum
Part No: SPMSS6260
Out Of Stock
Request Stock NotificationThe Spektrum S6260 High Speed HV Digital Servo (SPMSS6260) is a standard-size, high-voltage surface servo engineered for dependable performance on 6.0–8.4V systems. It combines an aluminium case for efficient heat dissipation with a 7075 aluminium hard-anodised output shaft/main gear and steel internal gears. NMB dual main bearings and aluminium mounting tabs add strength and precision, while a removable wire harness makes custom lead lengths and maintenance straightforward. The waterproof construction helps keep you running in challenging conditions.
Suggested compatibility: 1/10–1/8 scale RC surface vehicles where fast response and reliable torque are required.
Key Features
- Removable wire harness with different lengths available
- 7075 aluminium hard-anodised output shaft/main gear with steel internal gears
- Aluminium case for effective heat dissipation
- Aluminium mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof design
- 1-year limited warranty
Specifications
- Operating voltage: 6.0–8.4V (HV)
- Maximum servo torque: 167 oz-in (12.0 kg-cm) @ 6.0V; 210 oz-in (15.1 kg-cm) @ 7.4V; 241 oz-in (17.4 kg-cm) @ 8.4V
- Current draw (stall): 4900 mA @ 6.0V
- Current draw (idle): 9.8 mA @ 6.0V
- Servo type: Digital
- Size category: Standard
- Bearing: Dual (NMB)
- Gear type: Metal
- Spline count: 23 teeth
- Rotation range: 120°
- Connector wire length: 200 mm (7.87 in)
- Wire gauge: 22 AWG
- Material: Metal / Plastic

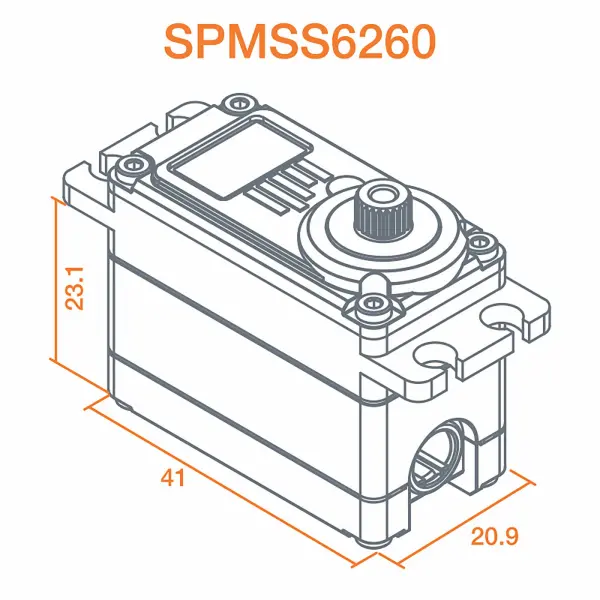

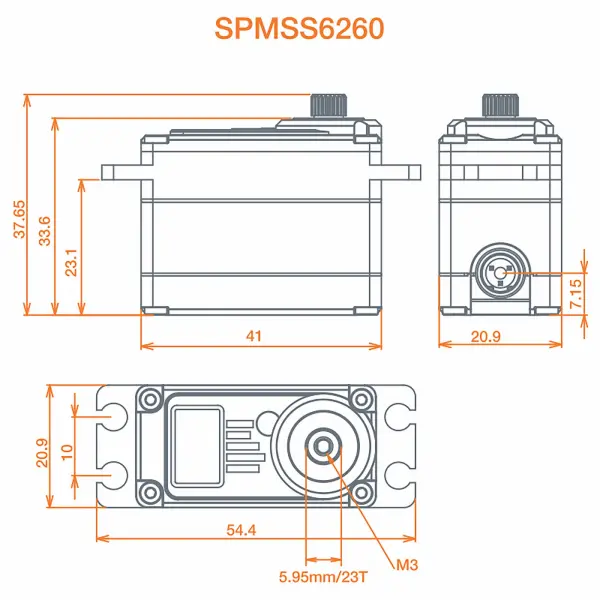

- Dimensions (L x W x H): 41.0 x 20.8 x 31.8 mm
- Weight: 65.2 g (2.3 oz)
- Application: Surface
Secured by Stripe
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
S6260 High Speed HV Dig Servo Features:- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
S6260 High Speed HV Dig Servo Specfications:
- Current Draw Stall: 4900mA @ 6.0V
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 22 AWG
- Material: Metal / Plastic
- Programmable: No
- Servo Size Category: Standard
- Maximum Servo Torque: 167 oz-in (12.0kg-cm) @ 6V; 210 oz-in (15.1kg-cm) @ 7.4V; 241 oz-in (17.4kg-cm) @ 8.4V
- Connector Wire Length: 7.87 in (200mm)
- Current Draw Idle: 9.8 mA @ 6.0V
- Product Width: 0.82 in (20.8mm)
- Part Type: Electronics
- Product Application: Surface
- Product Height: 1.25 in (31.8mm)
- Servo Type: Digital
- Application: Surface
- Product Weight: 2.3 oz (65.2g)
- Spline Count: 23 Teeth
- Product Length: 1.61 in (41mm)
- Rotation Range: 120 deg
Key Info:
- Brand: Spektrum
- Part No: SPMSS6260
- Barcode: 605482585269
- Fitment: Option Part
