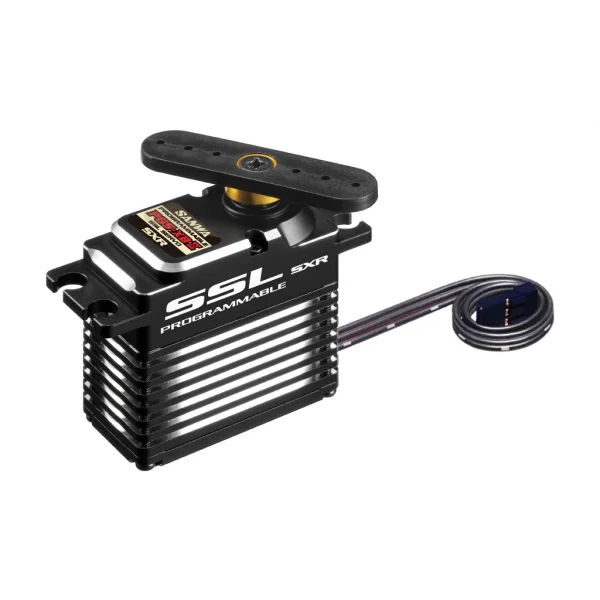

Sanwa PGS-XB2 Servo

The Sanwa PGS-XB2 is a high-torque, brushless programmable servo designed for fast response and robust durability. Built around Sanwa’s SXR (Sanwa Xtreme Response) technology and SSL programmability, it delivers precise control with telemetry support and a full aluminium case for improved heat dissipation. Part number SCH-SA107A54563A.

Key Features

• FH5U: SXR (Sanwa Xtreme Response) mode-compatible
• SSL-compatible programmable servo
• PGS Setting Gear-compatible for detailed configuration
• Super Response (SSR) and High Response (SHR) modes
• Li-Po 2-cell compatible
• High torque type, brushless motor
• Full aluminium case with AL heat sink
• Full metal gears (strengthening gears)
• Black harness

Performance Specs

• Speed: 0.11 sec/60° (7.4V), 0.14 sec/60° (6.0V)
• Torque: 21.1 kg/cm (7.0V), 17.9 kg/cm (6.0V)
• Dimensions: 40.5 x 20.5 x 38.7 mm
• Weight: 72 g

Programming & Telemetry

Settings can be adjusted wirelessly from compatible SSL radios or via the PGS Setting Gear. Telemetry for internal temperature, current, voltage and servo position can be transmitted to the radio. Initial setting on the Setting Gear is necessary.

Adjustable Parameters

• SSL-CH (SSL channel setting)
• STRETC (stretcher adjustment)
• BOOST (boost adjustment)
• D-Band (dead band adjustment)
• MV-MID (middle torque adjustment)
• MV-END (later torque adjustment)
• BREAK (brake adjustment)
• MV-HOLD (power adjustment over the whole range)
• MV-FRQ (feeling adjustment over the whole range)
• MAX-PW (maximum duty adjustment)

Note: PGS Setting Gear is required for setting.

Suggested Compatibility

• Radios using CODE 10, such as M12S, EXZES ZZ and MT-44
• Not suggested for CODE 5 radios such as M12, EXZES Z, MT-4S, MT-4 and MT-S
