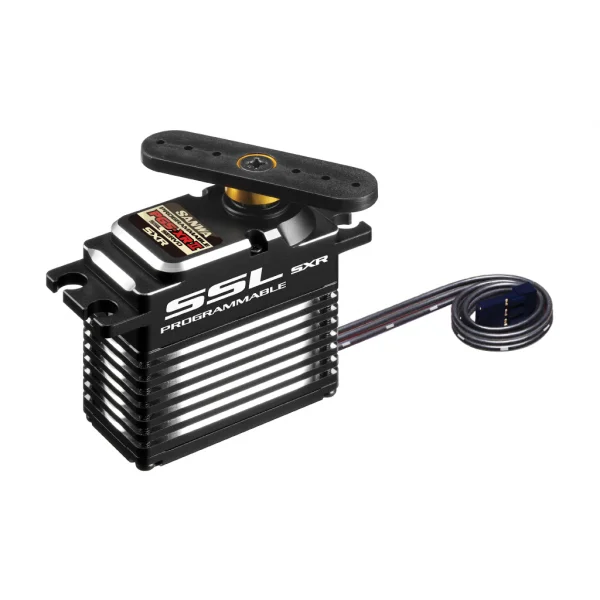

Sanwa PGS-XR2 Servo

The Sanwa PGS-XR2 Servo (SCH-SA107A54566A) is a high-torque, brushless, programmable servo designed for fast, precise control with advanced telemetry support. It is compatible with FH5U SXR mode and supports SSL for on-the-fly adjustments, plus SSR and SHR response modes. Built for durability and consistent performance, it features a full aluminium case, strengthened full metal gears, an aluminium heat sink and a black harness.

Key Features

• FH5U: SXR mode-compatible
• SSL-compatible programmable servo
• PGS Setting Gear-compatible
• Super Response (SSR) and High Response (SHR) modes
• Li-Po 2-cell compatible
• High torque type with brushless motor
• Full aluminium case with AL heat sink
• Full metal gear (strengthening gears)
• Black harness

Programming, Telemetry And Adjustment

Programmable via SSL with wireless setting from the radio, or by connecting to Sanwa Setting Gear. Telemetry can report temperature, current, voltage and position back to the radio. Initial setting on Setting Gear is necessary. Setting Gear is necessary for setting.

Adjustable Parameters

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)
• MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (MAX Duty Adjustment)

Performance Specifications

• Speed: 0.09 sec/60 (7.4V); 0.11 sec/60 (6.0V)
• Torque: 17.3 kg/cm (7.4V); 14.0 kg/cm (6.0V)

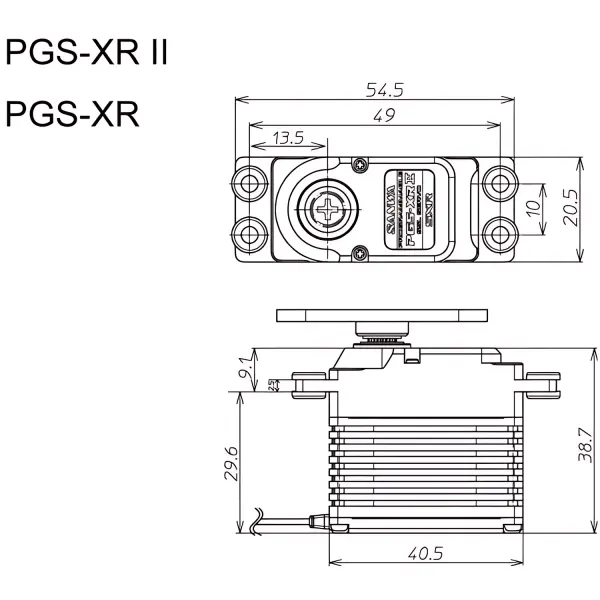

• Dimensions: 40.5 x 20.5 x 38.7 mm
• Weight: 72 g

Suggested Compatibility

• CODE 10 systems: M12S, EXZES ZZ, MT-44
• CODE 5 systems (M12, EXZES Z, MT-4S, MT-4, MT-S) are not suggested
