Seagull Edge 540V3 Aerobatic 35-40cc ARTF Plane SEA383A
Brand: Seagull
Part No: SEA383A
Usually ships same day
Save with a Combo Package
Our recommended kit, bundled at a combined priceSeagull's recommended gear to go with your Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware — bundled together for your convenience.
1× D625MW Wide Voltage Super Speed Servo2221050
5× Hitec D954SW Wide Voltage Coreless Steel Gear Digital Servo - 29kg - 0.12s2221018
2× Radient Futaba HD Extension Lead with Clip 500mmRDNAC010204
1× Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol EngineRCGF40TS
1× Stinger Engines 20x8 Beech Wood PropellerRCGF20X8BWP
Customers Also Buy
Popular with customers who buy products like the Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware
Description
The Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware, part number SEA383A, is an ARTF radio-controlled aerobatic aeroplane with a 1.96m wingspan, built for 3D and precision flying. It is a 1:3.7 scale, semi-scale model in an orange colour scheme, aimed at experienced pilots and rated at advanced level.
The airframe is made from balsa and plywood with carbon fibre reinforcement in key structural areas, and it arrives factory assembled and covered in Oracover film. The fitted alloy hardware, pull-pull rudder system, painted dural undercarriage and spring-tensioned steerable tail wheel are all part of the package, along with colour-coordinated glass fibre wheel spats, a factory-painted glass fibre cowl and a plastic spinner.
Large control surfaces and wide throws give plenty of control authority, while the airframe is described as stable and predictable through aggressive manoeuvres. It is designed around a 35-40cc petrol engine or an equivalent high-power electric setup. The wing comes off for storage and transport, a large canopy hatch gives access to the fuselage, and optional screw-on wingtip fences are provided. It is recommended for ages 14 and over and for use at a designated R/C model flying site.
The real Edge 540 is a well-known unlimited-class aerobatic aircraft, flown in events such as the Red Bull Air Race, and this model follows its lightweight construction and symmetrical wing layout.
What's Included
- Carbon reinforced fuselage, assembled and covered
- 2-piece wing set, assembled and covered
- Tail set, assembled and covered
- Clear canopy and painted pilot figure
- Painted glass fibre cowl
- Hardware pack and steerable tail wheel unit
- Instruction manual
Required to Complete
- 35-40cc petrol, nitro or electric equivalent power system
- Propeller to suit the chosen engine
- 6-channel transmitter and receiver
- 6 suitable servos
- Protective foam for the radio system
Specifications
- Flying weight: approx. 5.9kg / 13lb
- Length: 1,790mm / 71in
- Wingspan: 1,970mm / 77.5in
- Wing area: 66dm2 / 1023in2
Secured by Stripe
Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware Manuals & Guides
Specifications
Purpose-built for serious 3D and precision aerobatics, the Edge 540 V3 delivers uncompromising performance with a sleek semi-scale look. Featuring a 1.96m (77.5") wingspan, this ARTF model is crafted from balsa and plywood with carbon fibre reinforcements in key structural areas. Lightweight, strong, and responsive, it's designed for experienced flyers pushing the limits of sport and 3D flight.
The V3 comes fitted with durable alloy hardware, pull-pull rudder system, robust landing gear, and a factory-painted fibreglass cowl. It's designed for 35–40cc petrol engines or an equivalent high-power electric setup. Control authority is exceptional thanks to large surfaces and wide throws, while the airframe remains stable and predictable through aggressive manoeuvres.
About the original:
The Edge 540 is one of the most recognisable aerobatic aircraft in the world, designed for unlimited-class competition and flown by top pilots in events like the Red Bull Air Race. Its lightweight construction, symmetrical wing, and powerful engine combination make it a benchmark in precision aerobatics and freestyle flight performance.
Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware Key Features:
- Designed for freestyle aerobatic flight.
- Ultra lightweight, high-quality balsa, ply and carbon fibre construction.
- Beautifully covered in genuine Oracover film.
- Factory painted glass fibre engine cowl.
- Easy wing removal assists storage and transportation.
- Full hardware pack included.
- Quality painted dural undercarriage.

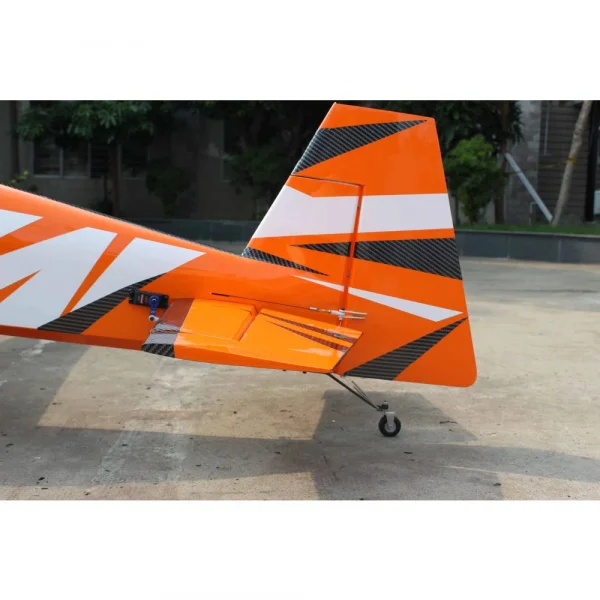

- Spring tensioned steerable tail wheel assembly.
- Colour-coordinated glass fibre wheel spats.
- Large canopy hatch offers impressive fuselage access.
- Optional screw-on wingtip fences.
- Quality plastic spinner.
What's in the Box:
- 1x Factory assembled & covered, carbon reinforced fuselage.
- 1x Factory assembled & covered 2-piece wing set.
- 1x Factory assembled & covered tail set.
- 1x Clear canopy moulding.
- 1x Painted pilot figure.
- 1x Factory painted glass fibre cowl.
- 1x Comprehensive hardware pack (screws, horns, pushrods, fuel tank etc.).
- 1x Steerable tail wheel unit.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 35 - 40cc petrol engine, nitro, or electric equivalent.
- 1x Propeller to suit chosen engine.
- 1x 6-Channel computer transmitter and receiver combo.
- 6x Suitable high-quality servos.
- 1x Protective foam for radio system.
Seagull Edge 540V3 Aerobatic (35-40cc) 1.96m (77.5in) Carbon Reinforced, Alloy Hardware Tech Specs:
- Approx. Flying Weight: 5.9kg / 13lbs
- Product Length: 1,790mm / 71in
- Product Wingspan: 1,970mm / 77.5in
- Product Wing Area: 66dm2 / 1023in2
- Scale: 1:3.7
- Completion Level: ARTF
- Experience Level: Advanced
- Age Recommendation: 14+
- Recommended Usage Environment: Designated R/C model flying site
- Channels: 6
- Colour: Orange
- Material: Array
Key Info:
- Brand: Seagull
- Part No: SEA383A
- Barcode: 5051121274301
- Assembly Level: ARTF (Almost RTF)
- Power: Petrol
- Flying Style:
• Scale
• Sport
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
Couple of small issues, the tailplane joiner tube would not fit through the fuz tube, by sanding to make it fit the tube was so thin it broke out of the fuz . One of the wing fastener plate had broken away but a drop glue sorted that. Otherwise a great kit, goes together well and looks great.
The guys at wheel spin sorted an delivery issue caused by the Royal Mail very professionally and promptly so 5 stars for the service from wheelspin
