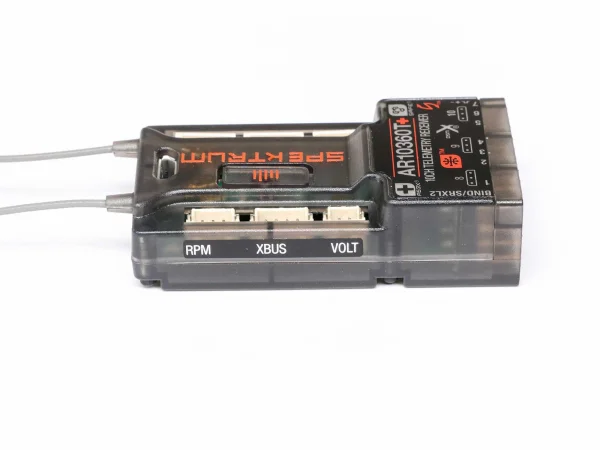

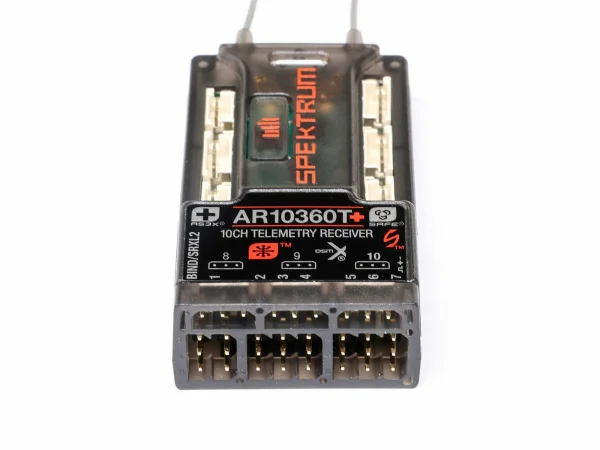

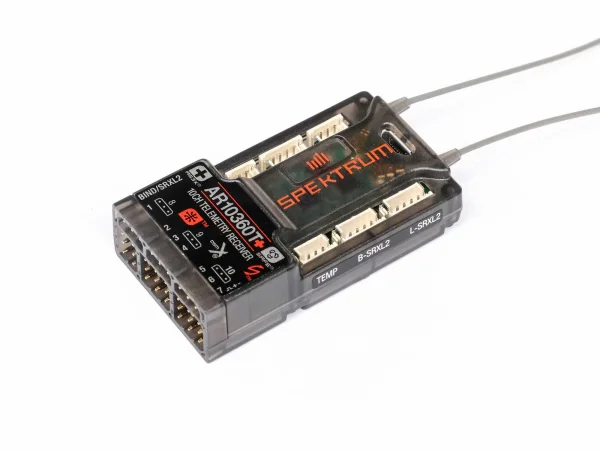

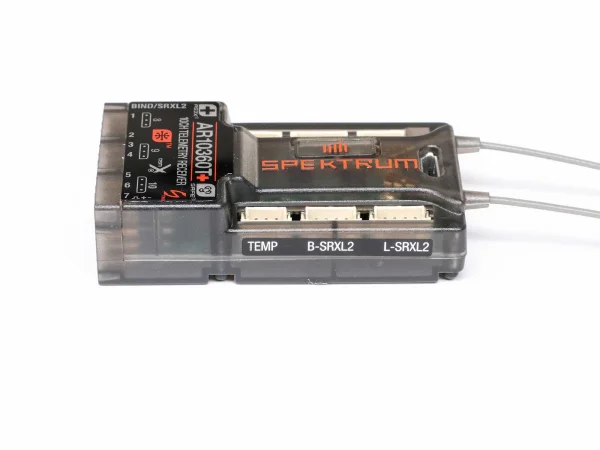

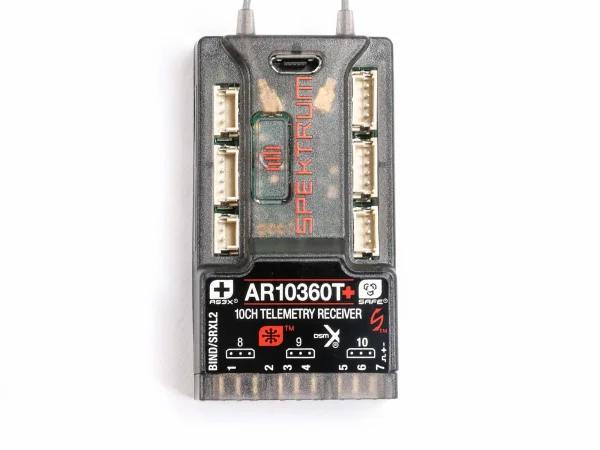

Spektrum AR10360T+ DSMX 10 Channel AS3X And SAFE Telemetry Receiver
Brand: Spektrum
Part No: SPM-1034
In Stock: Usually ships same day
The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.
Go to www.spektrumrc.com for the latest receiver updates.
Spektrum AR10360T+ 10-Channel Telemetry Receiver Features- Compatible with all Spektrum DSM2 and DSMX transmitters
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors
- VOLT, RPM, and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
- XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy, and more
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- End pin output pins for easy and compact installation
- Forward Programming capable of setting individual failsafe parameters per channel, programming AS3X+ and SAFE parameters, and more
- Micro USB port for firmware updating and model setup sharing capability
AR10360T DSMX 10-Channel AS3X And SAFE Telemetry Receiver Specfications:
- Antenna Length: 7.32" (186 mm)
- Application: Airplane, Sailplane
- Band: 2.4GHz
- Bind Method: Bind Button
- Channels: 10
- Failsafe: Yes
- Forward Programming: Yes
- Input Voltage: 3.5V–9V
- Integrated Variometer: Yes
- Modulation: DSMX/DSM2
- Product Application: Air, Sailplanes
- Product Height: 0.59" (15 mm)
- Product Length: 2.16" (55 mm)
- Product Weight: 18 g (0.63 oz)
- Product Width: 1.18" (30 mm)
- Programmable: Yes
- Range: Full
- Remote Receiver Ports: 2
- Serial Out: SRXL2
- Technology: AS3X+, SAFE
- Telemetry: Yes
- Telemetry Range: Full-Range Integrated
- (1) Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
- (1) Spektrum Flight Pack Voltage Sensor
- (1) Product Manual
- (1) Telemetry Capable DSMX Transmitter
- Servo Extension(s) May Be Required
Secured by Stripe
- Brand: Spektrum
- Part No: SPM-1034
- Barcode: 0660132945657
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Fitment: Option Part
- Extra Features:
• Stability System
• Telemetry Capable
