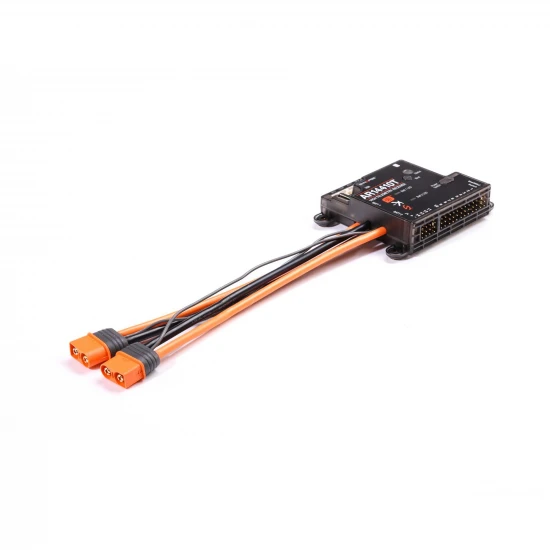

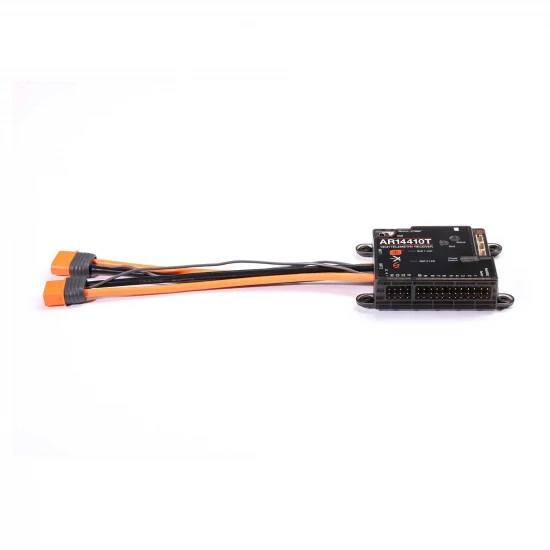

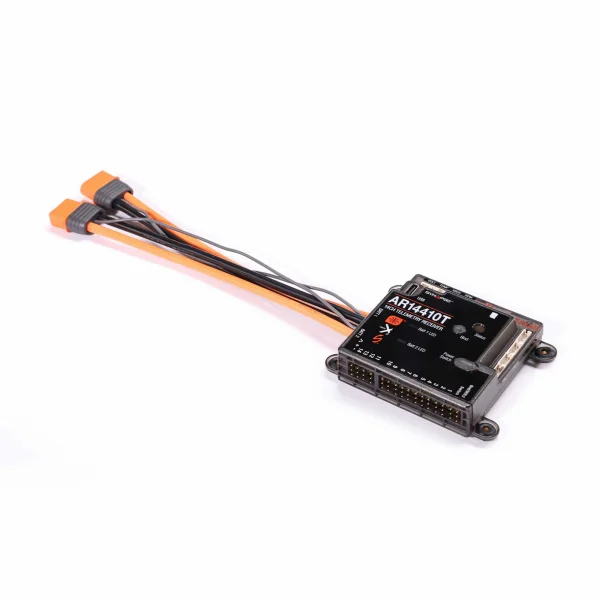

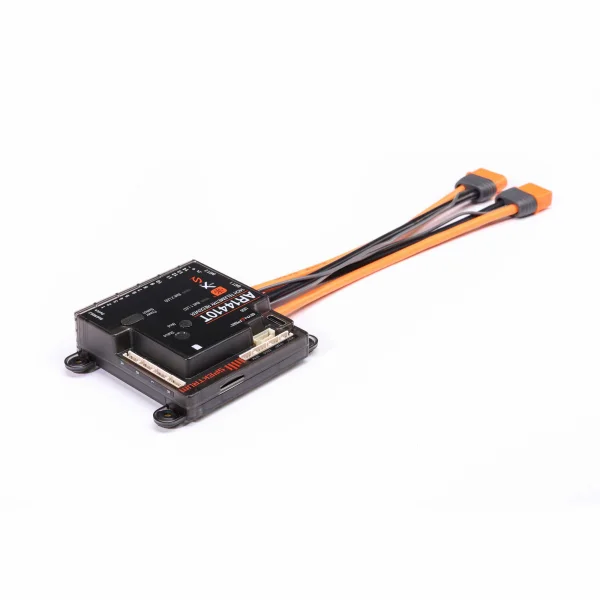

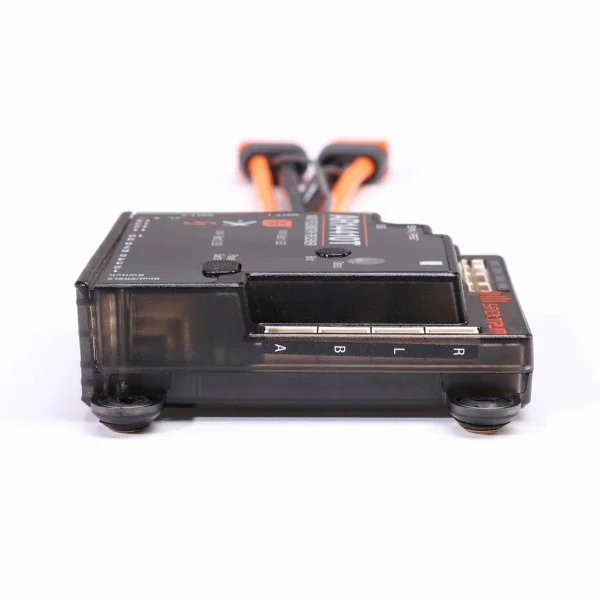

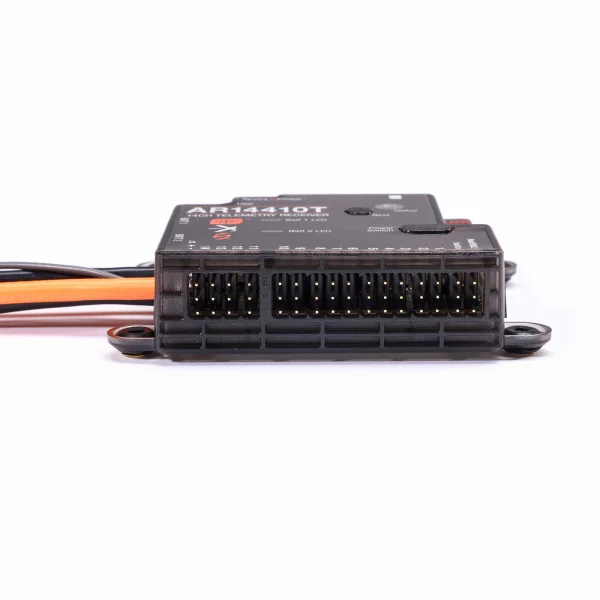

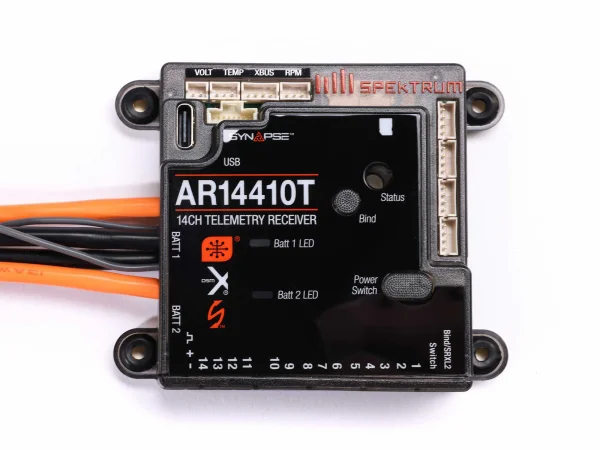

Spektrum AR14410T 14 Channel PowerSafe Telemetry Receiver

The AR14410T is a 14-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or 13AWG battery leads with IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.

Using an optional micro-SD card, the AR14410T can store flight data for later review as a CSV file. It also has a new, push-button PowerSafe LED soft switch or can be powered on and off through the on-board button. Additionally, the system can be put in sleep mode from a compatible Spektrum transmitter and woken up between flights and can be powered off from your compatible Spektrum transmitter as well. Bind can be initiated through the button or a bind plug. The AR14410T can be updated easily through the USB-C connection.

• Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)
• Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides helpful information during start up, warnings and mode indicators
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
• Capable of high-speed 11ms frame rates
• Binding is easier than ever with four options to initiate the bind process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

Spektrum AR14410T 14 Channel PowerSafe Telemetry Receiver Specfications:

• Application: Air
• Band: 2.4GHz
• Bind Method: Bind Button, Bind Plug
• Channels: 14
• Data Port: Yes
• Failsafe: Yes
• Input Voltage: 3.5-12.6V
• Integrated Variometer: Yes
• Modulation: DSMX/DSM2
• Product Height: 1.75" (44 mm)
• Product Length: 2.6" (66 mm)
• Product Weight: 2.7oz (76g)
• Product Width: 2.4" (61 mm)
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 4
• Resolution: 2048
• Serial Out: SRXL2
• Technology: AS3X+
• Telemetry: Yes
• XPlus Compatible: Yes

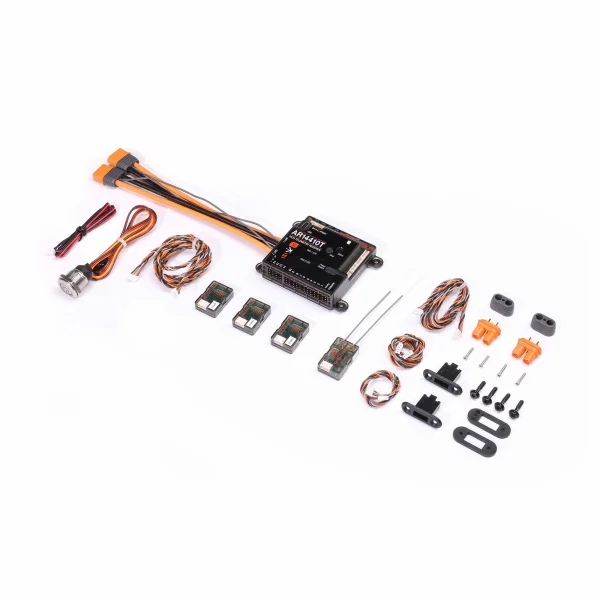

• (1) AR14410T 14 Channel PowerSafe Receiver
• (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
• (3) SPM9747 SRXL2 DSMS Remote Receivers
• (1) 9" SRXL2 Remote Receiver Extension
• (1) 12" SRXL2 Remote Receiver Extension
• (1) 24" SRXL2 Remote Receiver Extension
• (1) 36" SRXL2 Remote Receiver Extension
• (2) Battery IC3 Connectors
• (2) Charge Receptacles
• (1) Aircraft Telemetry Volt Sensor
• (1) Soft Switch
• (1) Instruction Manual

• Brand: Spektrum
• Part No: SPMAR14410T
• Barcode: 0605482179666
• Frequency: 2.4Ghz
• Channels: 9+ Channel
• Fitment: Option Part
• Extra Features: Telemetry Capable
