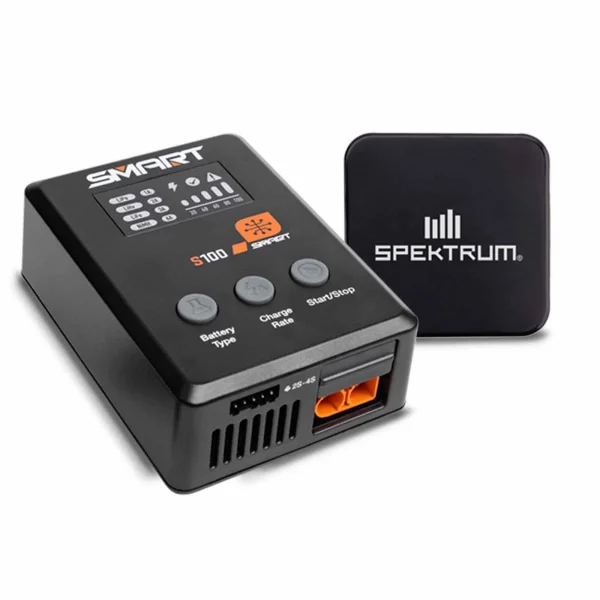

Spektrum S100 100W USB-C Smart Charger Combo With 65W USB-C GaN Power Supply

The Spektrum™ S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the battery is connected. With its up to 100W power, new user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S100 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery* with the S100 charger. The S100 is a convenient charging solution for those new to RC.

The Spektrum™ 65W Power Block stands out from traditional USB-C converters with its ability to deliver higher power in such a small size. This compact device, powered by Gallium Nitride electronic components, is perfect for converting AC input power to USB-type DC output. Its foldable AC input terminals make it easy to store.

*The Spektrum™ S100 Smart USB-C Charger is unable to charge non-Smart NiMH batteries.

• Gallium Nitride technology: Gallium Nitride (GaN) components waste less power and produce less heat, resulting in higher efficiency operation
• Compact size: A small but powerful design delivers power without the bulk of other power blocks

• Fast power: 65-watt USB power delivery
• Portability: The design includes a foldable plug for travel-friendly portability
• Safety features: Integrated over-voltage, overheating, and short-circuit protection to keep connected devices safe

S100 1x100W USB-C Smart Charger - 65W USB-C GaN Power Supply Specfications:

• Application: RC Model Battery Charger
• Battery Balance Connector: JST-XH
• Battery Temperature Monitoring: Yes
• Battery Type: LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell)
• Connector Type: IC3, IC5
• Display: LED
• Input Voltage: DC 5.0 - 20.0V, USB-C
• Integrated Balancing: Yes - Internal Balancer & External Adapter
• Low Input Voltage Protection: Yes
• Maximum Charge Rate: 1A / 2A / 3A / 6A User Selectable
• Over Current Protection: Yes
• PC Connectivity: Yes

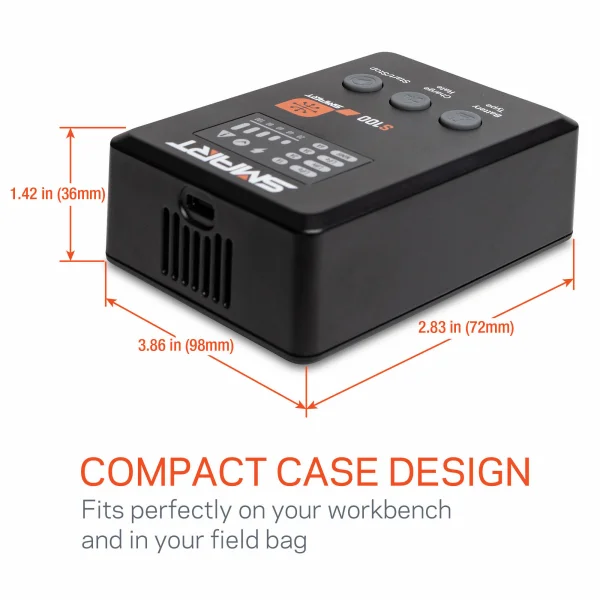

• Product Height: 1.42" (36 mm)
• Product Length: 3.86" (98 mm)
• Product Width: 2.83" (72 mm)
• Programmable: Yes
• Selectable Charge Rate: Yes
• Short Circuit Protection: Yes
• Software Updates: Yes
• Technology: Smart
• Thermal Protection: Yes

• (1) Spektrum™ S100 1x100W USB-C Smart Charger
• (1) Spektrum™ 65W Power Block

• Brand: Spektrum
• Part No: SPMXC2090PI
• Barcode: 0660132999391
• Input Voltage:
  • 240V (UK mains)
  • USB
• Included Connectors:
  • IC3
  • IC5
  • XH LiPo Balancers
• Chemistry: LiPo
• Fitment: Option Part
• Fitment: Standard Part
