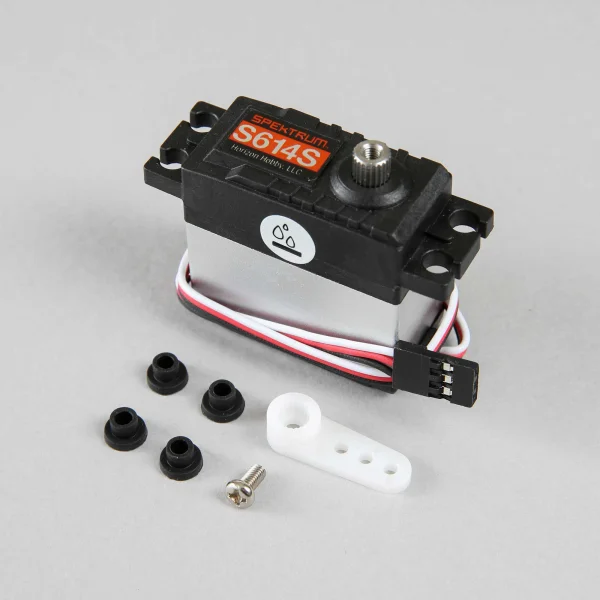

Spektrum S614S 15kg Steel Gear Waterproof Servo - 23T

Spektrum S614S 15kg Steel Gear Servo (23T)

Brand: Spektrum

Part No: SPMS614S

£35.99 RRP £39.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Fits These Models (21)

Show all 21 models

Frequently Bought With

Other items customers often buy with the Spektrum S614S 15kg Steel Gear Waterproof Servo - 23T

HPI Plazma 1.5V Alkaline AA Battery (4Pcs) HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
£3.32

Description

The Spektrum S614S (SPMS614S) is a standard-size digital surface servo delivering up to 201.4 oz-in (14.5 kg-cm) of torque at 6.0V. Built with steel gears, dual bearings and a 23-tooth spline, it offers dependable performance in a robust, water-resistant package for surface RC applications.

Key Specifications

  • Maximum torque: 201.4 oz-in (14.5 kg-cm) at 6.0V
  • Operating/input voltage: 6.0V
  • Servo type: Digital with brushed motor
  • Gear material/type: Steel, metal
  • Bearings: Dual
  • Spline count: 23-tooth
  • Size category: Standard
  • Application: Surface
  • Water-resistant: Yes
  • Connector: Universal with 10.4" (264 mm) lead
  • Dimensions (L x W x H): 1.8" x 0.8" x 1.6" (46 x 20 x 41 mm)
  • Weight: 2.2 oz (62 g)
  • Programmable: No
  • Overload protection: No
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Spektrum S614S 15kg Steel Gear Waterproof Servo - 23T Manuals & Guides

Specifications

S614S 15kg Steel Gear WP Servo 23T Specfications:

  • Maximum Servo Torque: 201.4oz-in (14.5kg-cm) at 6.0V
  • Product Length: 1.8" (46 mm)
  • Gear Material: Steel
  • Motor Type: Brushed
  • Servo Operating Voltage: 6.0V
  • Bearing: Dual
  • Bushing Or Bearing: Bearing
  • Gear Type: Metal
  • Input Voltage: 6.0V
  • Product Height: 1.6" (41 mm)
  • Servo Type: Digital
  • Programmable: No
  • Servo Size Category: Standard
  • Application: Surface
  • Overload Protection: No
  • Product Weight: 2.2 oz (62g)
  • Spline Count: 23 - Tooth
  • Water-Resistant: Yes
  • Connector Wire Length: 10.4" (264 mm)
  • Product Width: 0.8" (20 mm)
  • Connector Type: Universal



Key Info:
  • Brand: Spektrum
  • Part No: SPMS614S
  • Barcode: 605482726808
  • Max Voltage: 6v (NiMh)
  • Gear Material: Metal
  • Fitment: Option Part
  • Fitment: Standard Part

Additional Categories:

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
Could you use this on the typhon 3s as an upgrade?
Chris Brown / 7th September 2022

Yes you could.

Steve W @ Wheelspin Models
Hi I have an Losi LMT and it uses this servo, is there a upgrade/better servo I can buy?
Andrew Mash / 30th August 2021

Sure, something like say SAV-SW0231MG or SAV-SW1210SG would make a great upgrade.

They are the same size, but use a 25T horn (not 23T) - so you'd just need to change the servo horn (they include a couple)

Ben @ Wheelspin Models
