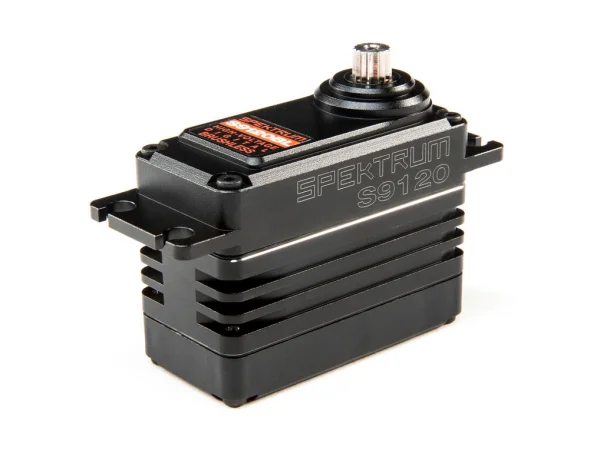

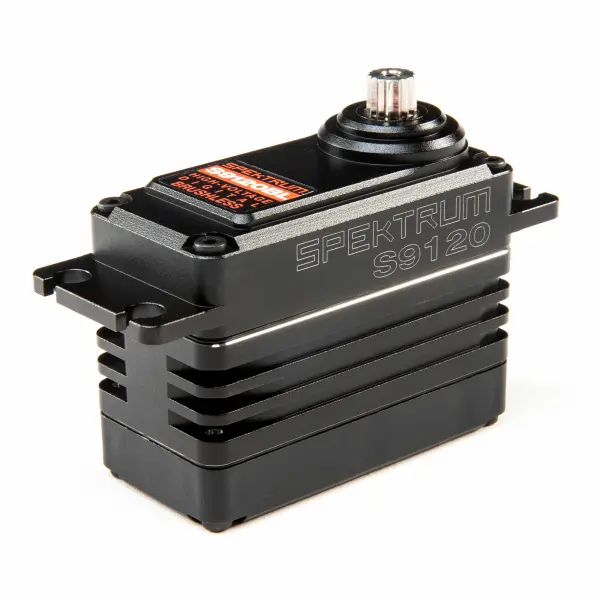

Spektrum S9120BL 1:5 Torque Metal Large Scale Servo

Operating in the rough and tumble environment of 1/5 scale, a servo’s performance is pushed to the maximum. The S9110BL and S9120BL servos have been designed to give 1/5 enthusiasts huge torque and brushless motor precision, taking their driving experiences to a new level.

Starting with a new case design with improved support for pins holding the gears, and a new aluminum top plate with re-designed bearing house, the S9110 and S9120 have been design for improved durability. A new brushless motor design will give more power than any previous Spektrum servos – the high torque S9120 is rated at 1454 oz-in of torque at 8.4v, while the high speed S9110 is rated at 1224 oz-in of torque. The S9110 keeps a similar speed of 0.14 sec/60⁰ at 8.4, while having almost 60% more torque than the previous version! Additional improvements include a sleek new stealth black design and new thicker 18awg wire detachable connector. What’s more, both are already race proven, the S9110BL and S9120 having won the 2020 1/5 Worlds Buggy Class at So Cal Nitro.

No matter if you choose the higher speed S9110BL or the higher torque S9120BL, these servos will give higher performance and additional control whether racing your 1/5 vehicle on the track or bashing through dunes.

Spektrum S9120BL 1:5 Torque Metal Large Scale Servo Specfications:

• Maximum Servo Torque: 1173oz-in (84.47 kg-cm) @ 6.0V, 1209 oz-in (87.06 kg-cm) @ 7.4V, 1453.5 oz-in (104.66 kg-cm) @ 8.4V
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Connector Wire Length: 6 in (152mm)

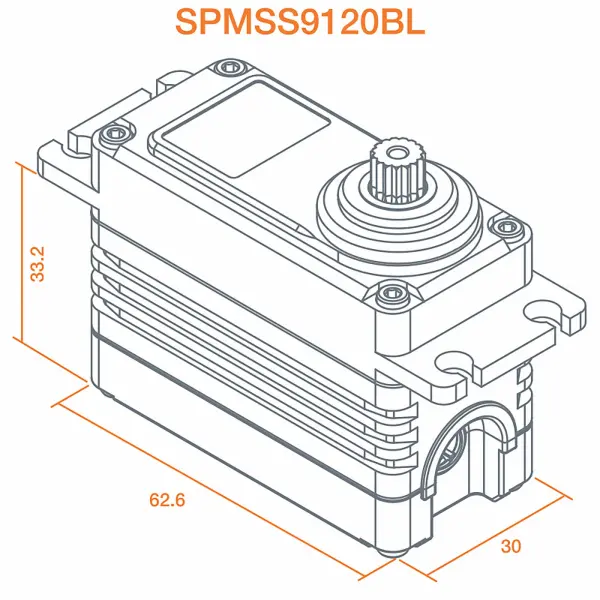

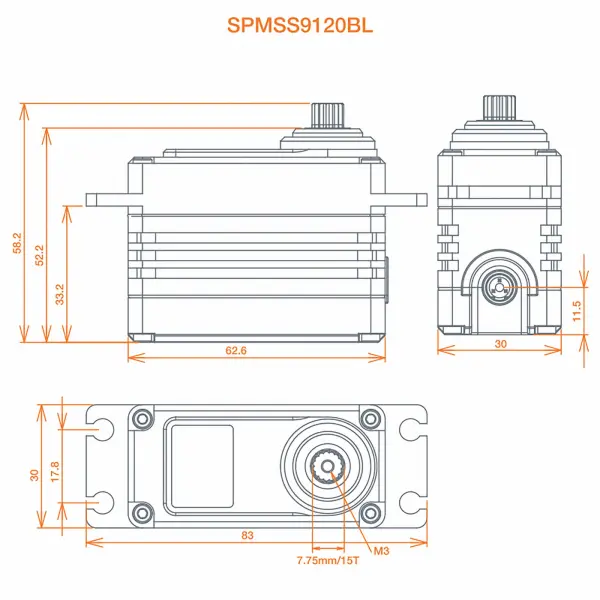

• Product Width: 1.18 in (30mm)
• Type: Surface
• Motor Type: Brushless
• Servo Operating Voltage: 6.0 - 8.4V (HV)
• Servo Size Category: Large Scale
• Product Length: 2.47 in (62.7mm)
• Deadband: Micro sec: Product Height 1.84 in (27.2mm) Application 1/5 scale off-road Product Weight 6.3 oz (178.6g) Spline Count 15 - Tooth Compatibility Compatibility Status Manufacturer Model Fitment 1/5 DBXL 2.0 4X4 Gas Buggy RTR Losi - LOS05008 Standard Parts Optional Parts 1/5 DBXL-E 2.0 4WD Desert Buggy Brushless RTR with Smart Losi - LOS05020 Standard Parts Optional Parts 1/5 DBXL-E 2.0 4X4 Desert Buggy Brushless RTR with Smart Losi - LOS05020V2 Standard Parts Optional Parts 1/5 Desert Buggy XL-E 4WD Electric RTR with AVC Losi - LOS05012 Standard Parts Optional Parts 1/5 K&N DBXL 4WD Buggy Gas RTR Losi - LOS05010 Standard Parts Optional Parts 1/5 KRATON 4WD EXtreme Bash Roller, Black ARRMA - ARA5208 Standard Parts Optional Parts 1/5 KRATON 4X4 8S BLX Brushless Speed Monster Truck RTR ARRMA - ARA110002 Standard Parts Optional Parts 1/5 Monster Truck XL 4WD RTR with AVC Losi - LOS05009 Standard Parts Optional Parts 1/5 OUTCAST 4WD 8S BLX Stunt Truck RTR ARRMA - ARA5810 Standard Parts Optional Parts 1/5 OUTCAST 4X4 EXtreme Bash Roller Stunt Truck, Black ARRMA - ARA5210 Standard Parts Optional Parts 1/6 SCX6 Jeep JLU Wrangler 4X4 Rock Crawler RTR Axial - AXI05000 Standard Parts Optional Parts 1/6 SCX6 Trail Honcho 4X4 Rock Crawler RTR Axial - AXI05001 Standard Parts Optional Parts 1/6 Super Baja Rey 2.0 4X4 Desert Truck Brushless RTR Losi - LOS05021 Standard Parts Optional Parts 1/6 Super Rock Rey V2 4X4 Rock Racer Brushless RTR Losi - LOS05016V2 Standard Parts Optional Parts SLR300 3-Channel SLT Receiver Single Protocol Spektrum - SPMSLR300 Optional Parts SR2100 DSMR 3-Channel Micro Race Receiver with Built in Antenna Spektrum - SPMSR2100 Optional Parts SR215 DSMR 2-Channel Sport Receiver  Spektrum - SPMSR215 Optional Parts SR315 DSMR 3-Channel Sport Receiver Spektrum - SPMSR315 Optional Parts SR515 DSMR 5-Channel Sport Receiver Spektrum - SPMSR515 Optional Parts SR6110AT DSMR 6-Channel AVC Telemetry Surface Receiver Spektrum - SPMSR6110AT Optional Parts No results for your given fitment filters Support Manuals & Support Instruction Manual Spektrum Servo Comparison Chart Replacement Parts Optional Parts Get Info From Communities RC 101 Buying Guides Troubleshooting Downloads How-To's FAQ Will this servo fit into the arrma 1/5 kraton 8s exb roller Yes, you will have to use the large scale mount that is included with the roller. Club Points Information icon-close Horizon Hobby RC Club: The points displayed are points you will earn based on your membership level and the cost value of the product. Be sure you are Signed In to your account to see the most accurate points you will earn on your purchase. Points are awarded and available for use once your order has shipped complete. Points per $1 Spent Standard Legend Elite 5 15 20 2000 points = $5 Discount Points displayed here do not include Bonus Points for select product. If the product is marked with the Bonus Points badge you will also earn the extra "Bonus Points" points listed in the banner in addition to the calculated points displayed .about-strong { color: #333; line-height: 2.5em; margin-bottom: 0; margin-top: 0; font-weight: 500; border-top: 1px solid; -o-border-image: linear-gradient(90deg, #333 40px, transparent 0, transparent) 100% 1; border-image: linear-gradient(90deg, #333 40px, transparent 0, transparent) 100% 1; } HORIZON HOBBY, WHERE RC MEMORIES LIVE. Who We Are. At Horizon Hobby, our personal goal is to inspire dreams and build memories. We take pride in providing the best hobby store experience for our customers, whether that’s online, at RC events, or in the RC community with RC cars, RC planes, RC boats, and so much more. Our Values. Our purpose is simple: deliver WOW moments. By pursuing the best experience through our portfolio of RC cars, helicopters, airplanes, boats, and more, we bring the RC community together in every city, town, and country. We are radio control innovators and Driven is our middle name. Our Promise. Our promise to our customers is creating one-of-a-kind experiences that keeps you coming back for more. We are more than an online hobby store. Our RC cars and trucks, RC airplanes and helicopters, and other radio control products are with you at home, on the go, and with your friends. We bring the fun. Our policies are top notch: Same Day Shipping Free Shipping Over $99 Expert Product Support Easy Returns .footer-text-alert { color: #333333; font-size: 1.125rem; font-weight: 500; margin-bottom: 0.5rem; } Sign up & save 10% on your next order!* Be the first to know about new products, deals, and events. 10% discount does not apply to E-Gift Cards or discounted items. *Some exclusions may apply. First time subscribers only. Your discount code will be emailed to you. SIGN UP Sign up for Horizon Hobby Text Alerts! Never miss out - text HOBBY to 44721Learn More Shop New Releases Our Brands Spektrum Certified Used Fan Gear E-Gift Card Vehicle Finder RC Club Bonus Points Shop Local Find a Wishlist Trains Support Technical Product Support RC Blog Order Status Repairs Product Registration Check E-Gift Card Balance Shipping, Billing & Returns Event Donations Train Support Know Before You Fly Get Help Company Info Our Story Contact Us Horizon Brands RC Club Horizon Hobby Visa Card RC Events Calendar Careers Purchasing & Dealer Inquiries Hobbies for Good Racer Payout Program Affiliate Program Legal Privacy Policy Terms & Conditions Site Map Compliance Patents Product Recalls Trademarks Copyright © Horizon Hobby, LLC const d = new Date(); let year = d.getFullYear(); document.getElementById("footeryear").innerHTML = year; if (document.getElementById("rccpromoCountdown") !== null) { // Set the date we're counting down to var countDownDate = new Date("August 21, 2024 23:59:59 GMT-0600").getTime(); // Update the count down every 1 second var x = setInterval(function () { // Get today's date and time var now = new Date().getTime(); // Find the distance between now and the count down date var distance = countDownDate - now; // Time calculations for days, hours, minutes and seconds var days = Math.floor(distance / (1000 * 60 * 60 * 24)); var hours = Math.floor( (distance % (1000 * 60 * 60 * 24)) / (1000 * 60 * 60) ); var minutes = Math.floor((distance % (1000 * 60 * 60)) / (1000 * 60)); var seconds = Math.floor((distance % (1000 * 60)) / 1000); // Output the result in an element with id="rccpromoCountdown" document.getElementById("rccpromoCountdown").innerHTML = days + "d " + hours + "h " + minutes + "m " + seconds + "s "; // If the count down is over, write some text if (distance < 0) { clearInterval(x); document.getElementById("rccpromoCountdown").innerHTML = "EXPIRED"; } }, 1000); } if (document.getElementById("promo-cd") !== null) { // Set the date we're counting down to var countDownDate = new Date("July 28, 2024 23:59:59 GMT-0600").getTime(); // Update the count down every 1 second var x = setInterval(function () { // Get today's date and time var now = new Date().getTime(); // Find the distance between now and the count down date var distance = countDownDate - now; // Time calculations for days, hours, minutes and seconds var days = Math.floor(distance / (1000 * 60 * 60 * 24)); var hours = Math.floor( (distance % (1000 * 60 * 60 * 24)) / (1000 * 60 * 60) ); var minutes = Math.floor((distance % (1000 * 60 * 60)) / (1000 * 60)); var seconds = Math.floor((distance % (1000 * 60)) / 1000); // Output the result in an element with id="promo-cd" document.getElementById("promo-cd").innerHTML = days + "d " + hours + "h " + minutes + "m " + seconds + "s "; // If the count down is over, write some text if (distance < 0) { clearInterval(x); document.getElementById("promo-cd").innerHTML = "EXPIRED"; } }, 1000); } pageContext = {"title":"Product Detail","type":"product","ns":"product"}; (function () { var merchantConfig = { csp: false }; var siteId = '3ed49bd3aa79'; function t(t,n){for(var e=t.split(""),r=0;r>8&255]+c+e[n>>16&15|64]+e[n>>24&255]+c+e[63&r|128]+e[r>>8&255]+c+e[r>>16&255]+e[r>>24&255]+e[255&o]+e[o>>8&255]+e[o>>16&255]+e[o>>24&255]},i=function(){if(window.Uint32Array&&window.crypto&&window.crypto.getRandomValues){var t=new window.Uint32Array(4);return window.crypto.getRandomValues(t),{d0:t[0],d1:t[1],d2:t[2],d3:t[3]}}return{d0:4294967296*Math.random()>>>0,d1:4294967296*Math.random()>>>0,d2:4294967296*Math.random()>>>0,d3:4294967296*Math.random()>>>0}},c=function(){var t="",n=function(t,n){for(var e="",r=t;r>0;--r)e+=n.charAt(1e3*Math.random()%n.length);return e};return t+=n(2,"0123456789"),t+=n(1,"123456789"),t+=n(8,"0123456789")};return t.safeGenerateNoDash=function(){try{var t=i();return o(t.d0,t.d1,t.d2,t.d3,!1)}catch(t){try{return n+c()}catch(t){}}},t.isValidNumericalToken=function(t){return t&&t.toString().length=9&&parseInt(t,10).toString().length=9},t.isValidUUIDToken=function(t){return t&&32===t.toString().length&&/^[a-z0-9]+$/.test(t)},t.isValidFGUToken=function(t){return 0==t.indexOf(n)&&t.length>=12},t}(),R={uDF:"UDF",dUAL:"dUAL",uAS:"UAS",mLd:"1",eTlu:"2",eUoe:"3",uS:"4",uF:"9",tmos:["T5","T10","T15","T30","T60"],tmosSecs:[5,10,15,30,60],bIR:"43",uB:"u",uBr:"b",cP:"c",nIL:"i",s:"s"};try{var B=I();try{B.id&&(V.isValidNumericalToken(B.id)||V.isValidUUIDToken(B.id)||V.isValidFGUToken(B.id))?window.ftr__ncd=!1:(B.id=V.safeGenerateNoDash(),window.ftr__ncd=!0),B.ts=window.ftr__startScriptLoad,F(B),window.ftr__snp_cwc=!!_.read(p),window.ftr__snp_cwc||(C=D);for(var G="for"+"ter"+".co"+"m",M="ht"+"tps://c"+"dn9."+G,O="ht"+"tps://"+B.id+"-"+siteId+".cd"+"n."+G,j="http"+"s://cd"+"n3."+G,N=[M,O,j],H=0;H // insyncCustomCssSrc: "", // Optional: Pass any other reference if needed //insyncContextParams: { // any-other-reference: "" //}, }; var insyncWebchatScript = document.createElement("script"); var insyncWebchatJsSrc = "https://dbrd449anfbv4.cloudfront.net/insync_webchat_"+insyncChatbotConfig.insyncEnv+".js"; insyncWebchatScript.setAttribute("src", insyncWebchatJsSrc); insyncWebchatScript.onload = function(){ insyncSetChatEnv(insyncChatbotConfig); }; document.head.appendChild(insyncWebchatScript); //
• Product Height: 1.84 in (27.2mm)
• Application: 1/5 scale off-road
• Product Weight: 6.3 oz (178.6g)
• Spline Count: 15 - Tooth
• 1/5 DBXL 2.0 4X4 Gas Buggy RTR Losi - LOS05008 Standard Parts Optional Parts : 1/5 DBXL-E 2.0 4WD Desert Buggy Brushless RTR with Smart Losi - LOS05020 Standard Parts Optional Parts
• 1/5 DBXL-E 2.0 4X4 Desert Buggy Brushless RTR with Smart Losi - LOS05020V2 Standard Parts Optional Parts : 1/5 Desert Buggy XL-E 4WD Electric RTR with AVC Losi - LOS05012 Standard Parts Optional Parts
• 1/5 K&N DBXL 4WD Buggy Gas RTR Losi - LOS05010 Standard Parts Optional Parts : 1/5 KRATON 4WD EXtreme Bash Roller, Black ARRMA - ARA5208 Standard Parts Optional Parts
• 1/5 KRATON 4X4 8S BLX Brushless Speed Monster Truck RTR ARRMA - ARA110002 Standard Parts Optional Parts : 1/5 Monster Truck XL 4WD RTR with AVC Losi - LOS05009 Standard Parts Optional Parts
• 1/5 OUTCAST 4WD 8S BLX Stunt Truck RTR ARRMA - ARA5810 Standard Parts Optional Parts : 1/5 OUTCAST 4X4 EXtreme Bash Roller Stunt Truck, Black ARRMA - ARA5210 Standard Parts Optional Parts
• 1/6 SCX6 Jeep JLU Wrangler 4X4 Rock Crawler RTR Axial - AXI05000 Standard Parts Optional Parts : 1/6 SCX6 Trail Honcho 4X4 Rock Crawler RTR Axial - AXI05001 Standard Parts Optional Parts
• 1/6 Super Baja Rey 2.0 4X4 Desert Truck Brushless RTR Losi - LOS05021 Standard Parts Optional Parts : 1/6 Super Rock Rey V2 4X4 Rock Racer Brushless RTR Losi - LOS05016V2 Standard Parts Optional Parts
• SLR300 3-Channel SLT Receiver Single Protocol Spektrum - SPMSLR300 Optional Parts : SR2100 DSMR 3-Channel Micro Race Receiver with Built in Antenna Spektrum - SPMSR2100 Optional Parts
• SR215 DSMR 2-Channel Sport Receiver  Spektrum - SPMSR215 Optional Parts : SR315 DSMR 3-Channel Sport Receiver Spektrum - SPMSR315 Optional Parts
• SR515 DSMR 5-Channel Sport Receiver Spektrum - SPMSR515 Optional Parts : SR6110AT DSMR 6-Channel AVC Telemetry Surface Receiver Spektrum - SPMSR6110AT Optional Parts
