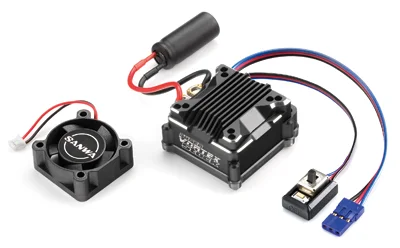

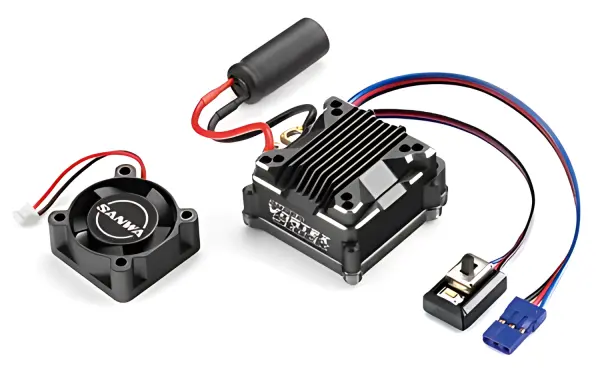

Super Vortex Stock ESC - SVZ Stock

The Sanwa Super Vortex Stock ESC – SVZ Stock (SA107A54393A) is a competition-focused speed controller specialised for stock-class motors. Designed to maximise motor power with exceptionally low resistance, it offers refined throttle control and robust protection features for consistent performance within a compact footprint.

Key Features

• Model specialised for stock motor applications
• Suggested compatibility with SSR and SSL protocols
• New function with suggested compatibility for CODE 10 on Sanwa M12S and Exzes ZZ transmitters
• Suggested compatibility with 30 mm and 25 mm cooling fans
• Black almite treatment for a premium, durable finish
• Extensive tuning options: Punch, Feel, Turbo, Boost Start, Boost Acceleration, and Neutral Dead Band

Protection And Control

• Engineered to help maximise motor output through reduced loss resistance and efficient control
• Improved heat protection control alongside normal operating safeguards
• Multi Protection System: protection from low voltage, abnormal sensor cable, motor lock, body overheat (abnormal heat), and motor overheat
• Motor overheat protection has suggested compatibility only when using a motor with a temperature sensor
• Multi battery-compatible via user-set cut-off voltage

Specifications

• Nominal input voltage: 3.7 V–7.4 V
• Dimensions: 32.0 × 35.5 × 19.7 mm (excluding protrusions)
• Rated current: 670 A
• Resistance loss: 0.00038 Ω

With its blend of precise throttle feel, advanced boost/turbo parameters, and comprehensive protection, the Super Vortex Stock SVZ provides a strong platform for stock-class racing. The compact size aids installation, while the low internal resistance helps deliver efficient, repeatable power delivery in demanding track conditions.
