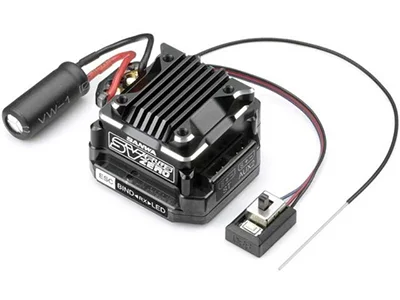

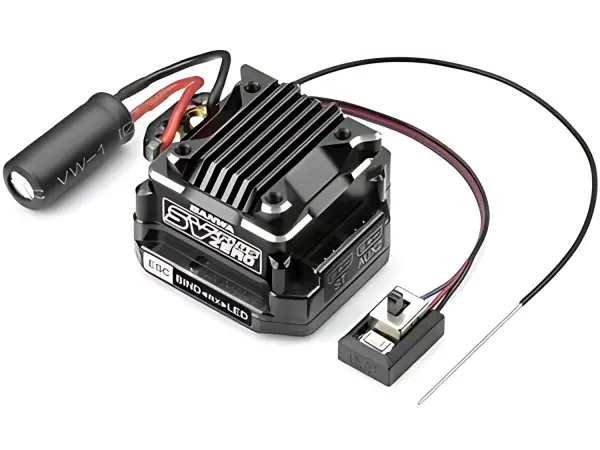

SV-Plus Zero ESC

The Sanwa SV-Plus Zero ESC brings advanced tuning and integrated radio performance together, featuring a built-in RX-472 receiver with 2.4GHz FHSS4. Designed for precise car control, it offers eight programming modes, comprehensive brake and feel adjustments, and SSL function. Boost Zero Indication supports regulations requiring "boost off", with verification via connection to the throttle (TH) channel and blue LED flashing.

Key Features

• Built-in receiver (RX-472) with 2.4GHz frequency hopping spread spectrum (FHSS4).
• Back Cancel and Boost Zero Indication.
• SSR/SHR/NOR automatic recognition and indication.
• 8 programming mode.
• Full Brake Rate, Neutral Brake Rate.
• Drive Feel, Neutral Brake Feel, Brake Feel.
• Boost Timing (Advanced Timing), Turbo, Power Mode.
• SSL function.
• Meets the requirements of the regulation "boost off" (checked via TH channel connection and blue LED flashing).

Specifications

• Nominal Input Voltage: 6.0–7.4V
• Rated Current: 740A
• Resistance Loss: 0.00038Ω
• Dimensions: 36.6 x 37.8 x 26.9 mm

Protection And Design

• Multi-Protection System: protection against low voltage, sensor cable trouble, motor lock, body overheat, and motor overheat (motor overheat compatible only with motors that have a built-in temperature sensor).
• Direct Copper Designed Terminal for power wire connection to minimise loss.

Additional Notes

• Reduction of resistance loss and upgraded control efficiency aim to manage temperature increase and core functions.
• Cut-off voltage setting enables suggested compatibility with multi-battery setups.
• Part number: SCH-SA107A41265A.
