SV-Plus Zero ESC for EU

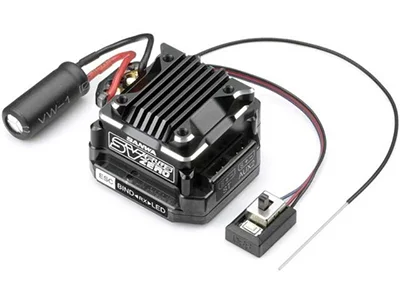

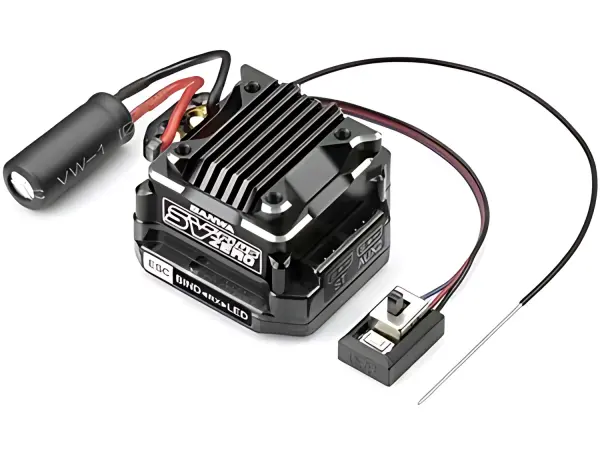

The Sanwa SV-Plus Zero ESC for EU integrates an RX-472 2.4GHz FHSS4 built-in receiver and advanced tuning options in a compact footprint. With SSL support, boost zero indication and eight programming modes, it delivers precise control over throttle, braking and overall drive characteristics. Part number SCH-SA107A41268A.

Control parameters include Full and Neutral Brake Rate, Drive Feel, Neutral Brake Feel and Brake Feel, alongside Boost Timing (advanced timing), Turbo and Power Mode. It meets the requirements of regulations that require “boost off”, with verification via TH channel connection and a blue LED flashing indication.

Key Features

• Built-in RX-472 receiver with 2.4GHz frequency hopping spread spectrum (FHSS4)
• SSL function support
• Boost Zero Indication; meets “boost off” regulation requirements
• Back Cancel function
• SSR/SHR/NOR automatic recognition and indication
• Eight programming modes for detailed setup
• Full Brake Rate and Neutral Brake Rate adjustment
• Drive Feel, Neutral Brake Feel and Brake Feel tuning
• Boost Timing (Advanced Timing), Turbo and Power Mode
• Verification via TH channel connection with blue LED flashing

Protection & Efficiency

• Multi-Protection System: low voltage, sensor cable trouble, motor lock, ESC overheat and motor overheat protection (motor overheat compatible only with motors that have a built-in temperature sensor)
• Direct copper designed terminal for reduced loss via direct power wire connection
• Cut-off voltage setting enables compatibility with multi-battery setups
• Supplied with cooling fan

Specifications

• Nominal input voltage: 6.0–7.4V
• Rated current: 740A
• Resistance loss: 0.00038Ω
• Dimensions: 36.6 × 37.8 × 26.9 mm

What’s Included

• Sanwa SV-Plus Zero ESC with built-in RX-472 receiver
• Cooling fan
