Tamiya Monster Beetle Trail (GF-01TR)

Trail Beetle
This R/C model assembly kit creates a vehicle which offers an excellent off-road drive. Molded in detailed ABS plastic, its racy body is inspired by customized Volkswagen Beetles, and features exaggerated fenders, a simplified rear end, triple auxiliary lights and more. Metal-plated parts recreate headlights, auxiliary lights and the rear depiction of the engine. The GF-01TR chassis provides a dynamic off-road drive.

GF-01TR: Awesome Traction
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilizes friction dampers, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip. The chassis utilizes a 'square' setup with similar tread and wheelbase lengths.

- The Monster Beetle Trail offers immense traction that will take it over all kinds of obstacles.


- Molded in ABS plastic, the body offers plenty of detail. Metal-plated parts add another layer of realism.


- The front is adorned with triple auxiliary lamps, which are metal-plated parts with stickers for decoration.

- Depictions of engine and muffler are also metal-plated parts. The body also features a sporty roll bar.


- Use the included putty in the gear differentials to help endow this model with superb traction.


- All wheels have hub reduction units, which slow down drive shaft output for greater torque.


- Left: The chassis has higher ground clearance that further boosts its capabilities on tough terrain.

- Right: At the core of the GF-01TR chassis is a slimline monocoque which doubles as a gear case.



- Left: Take a closer look at the complex drivetrain, shown here in this profile view of the chassis.

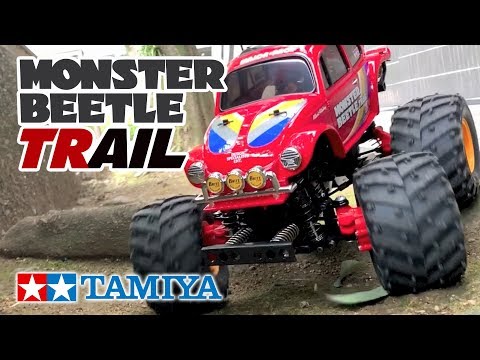

- Right: Watch the Monster Beetle Trail as it takes on some tough obstacles in this preview video.


Specifications

- Length: 333mm, Width: 270mm, Height: 215mm
- Wheelbase: 174mm　
- Tread: 210mm (Front & Rear)
- Tire Width/Diameter: 68/115mm (Front & Rear)
- Monocoque Frame
- 3-Bevel Differential Gears
- 2-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- Gear Ratio = 37.35:1 (using kit standard 18T pinion gear)
- Type 540 Motor
- Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger

• Brand: Tamiya
• Part No: HC-58672
• Barcode: 4950344065936
• Scale: 1:10
• Power Source: Electric - Brushed
• Vehicle Type: Monster Truck
• Surface Type: Off Road
• Build Level: Unassembled (Kit)
