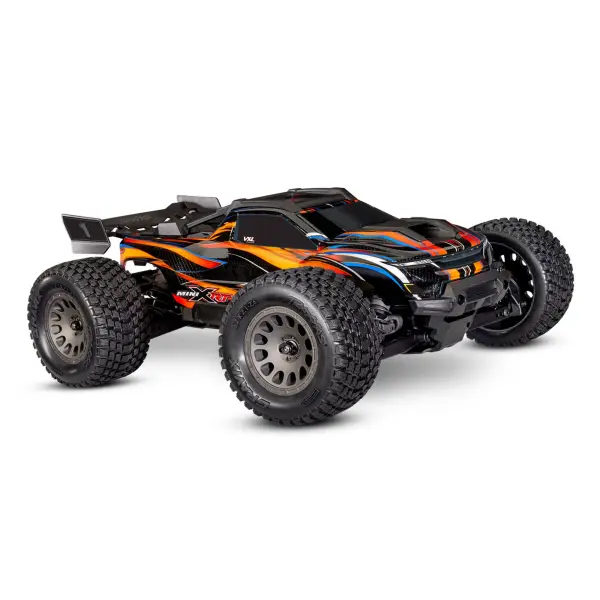

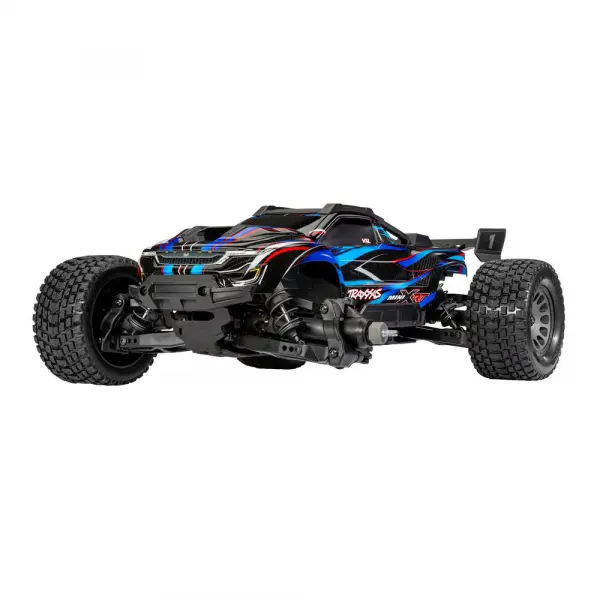

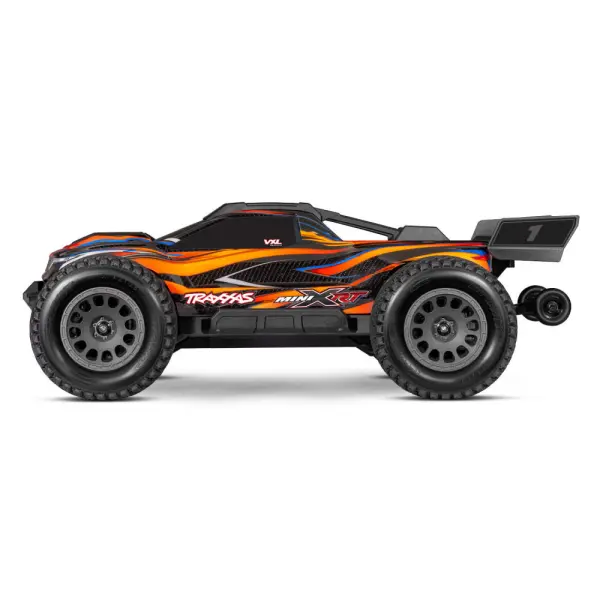

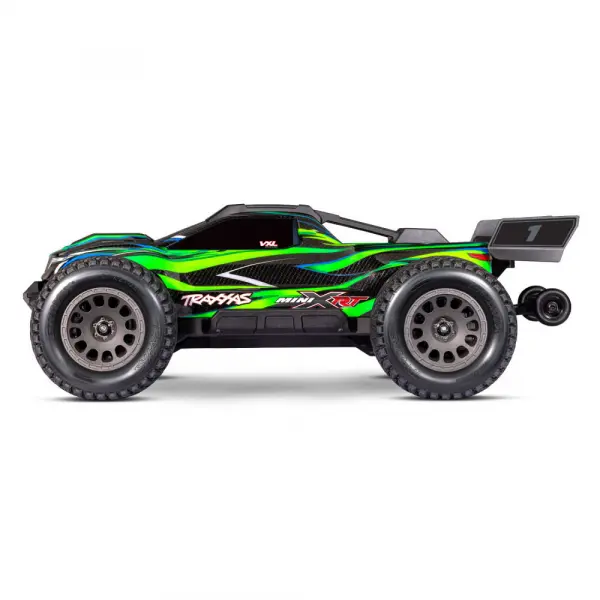

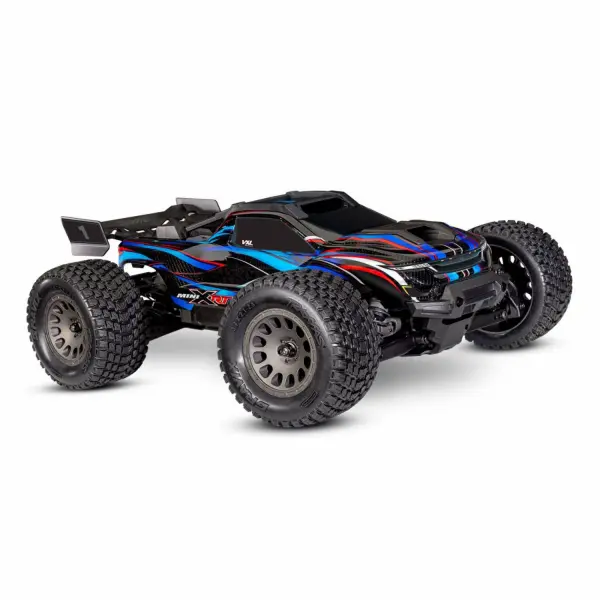

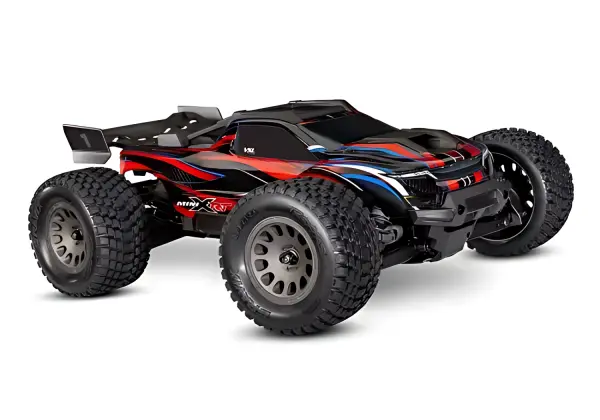

Traxxas Mini XRT

Extreme 3s Performance. Compact Size.

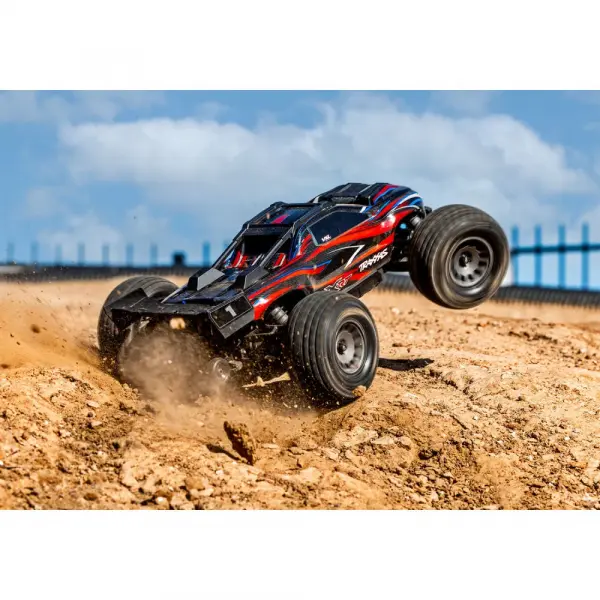

Mini XRT® is a true rocket with full 1/10 scale Velineon® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 55+ mph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Bred For Performance

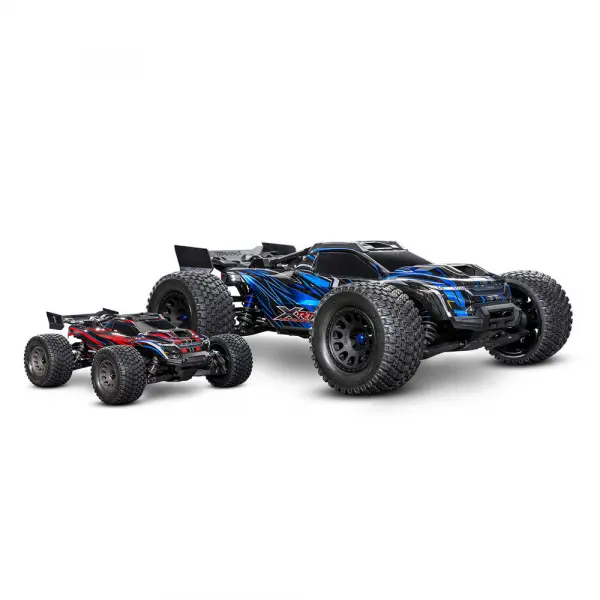

Like its X-series™ counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 55 mph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.

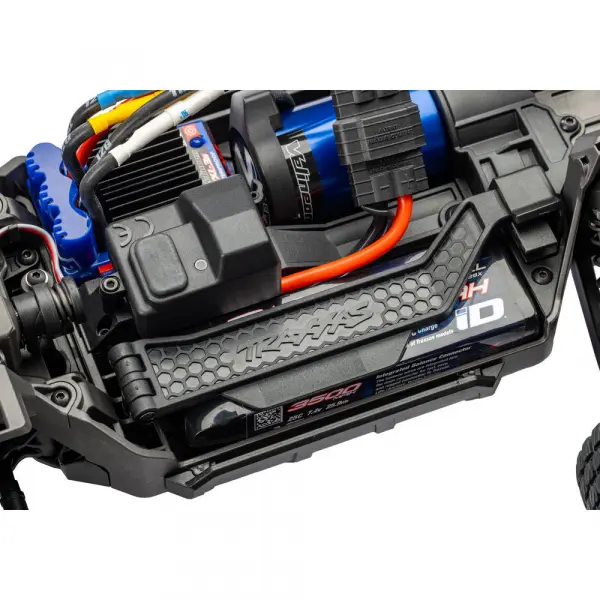

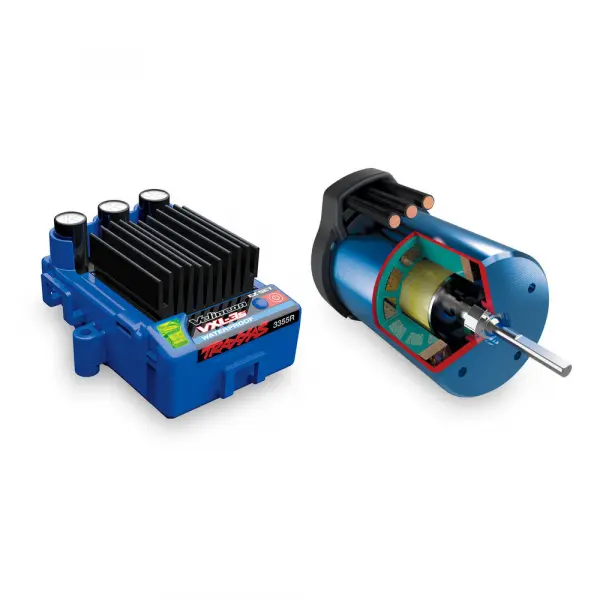

1/10 Scale VXL-3s Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.

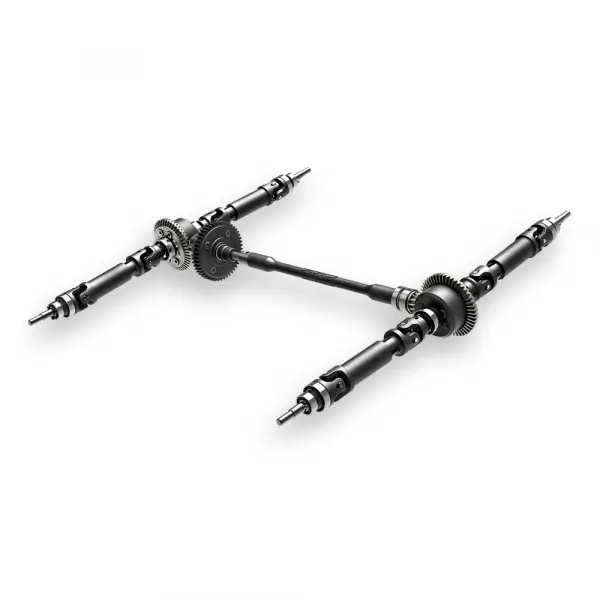

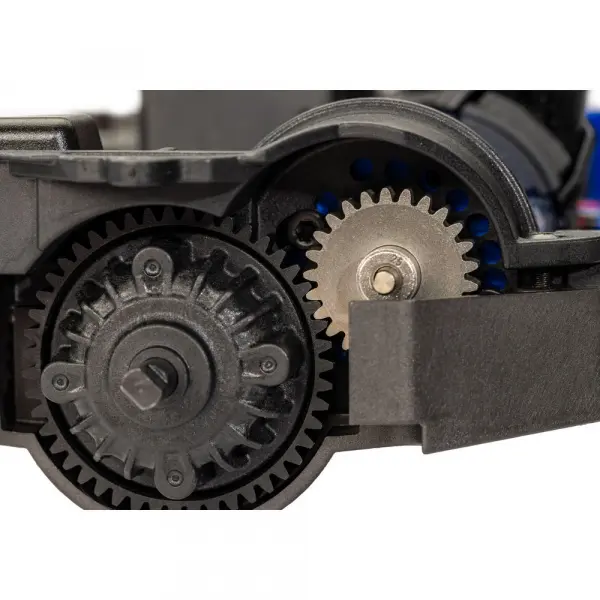

1/10 Scale 4X4 Driveline

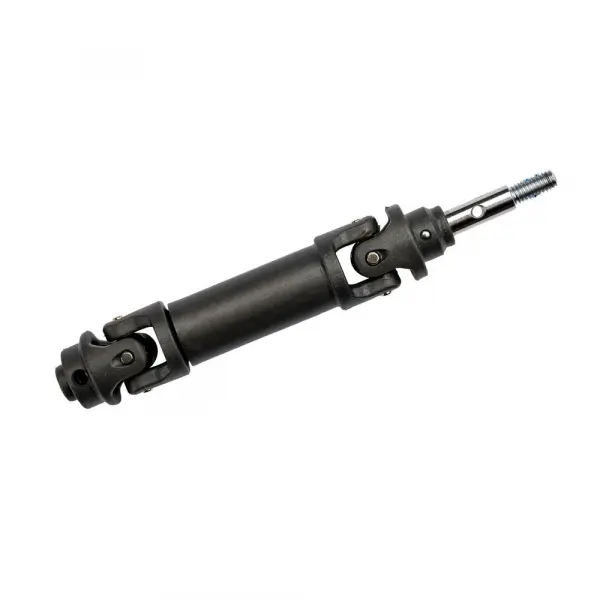

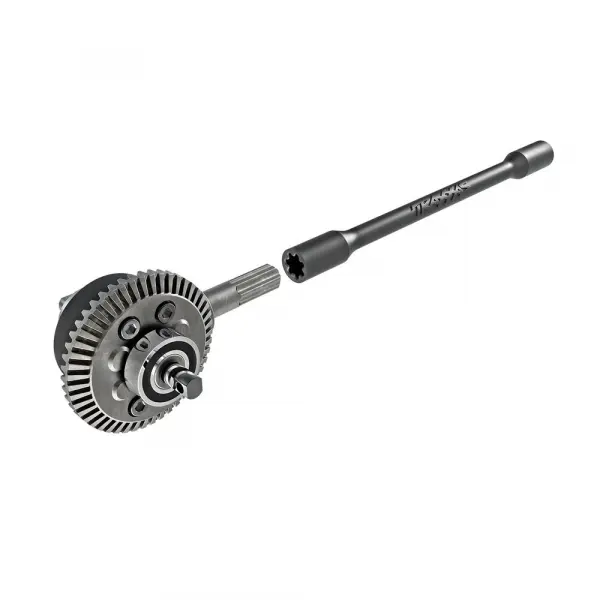

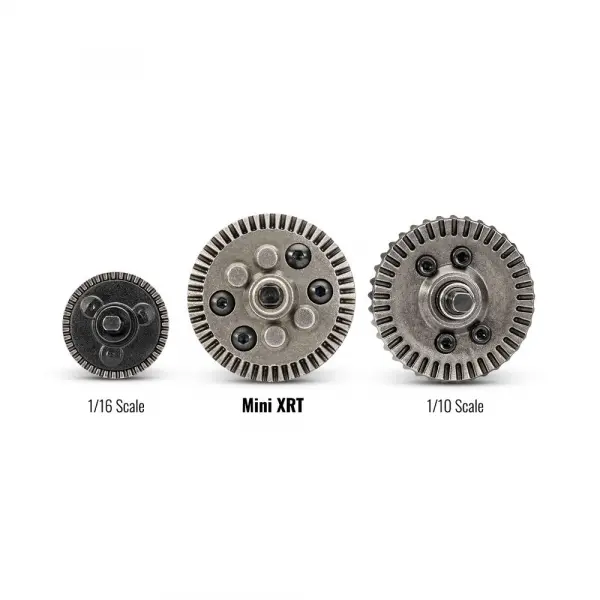

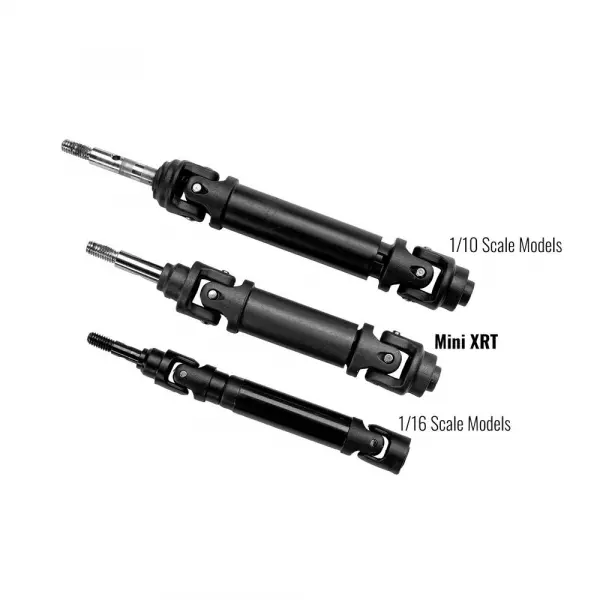

Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

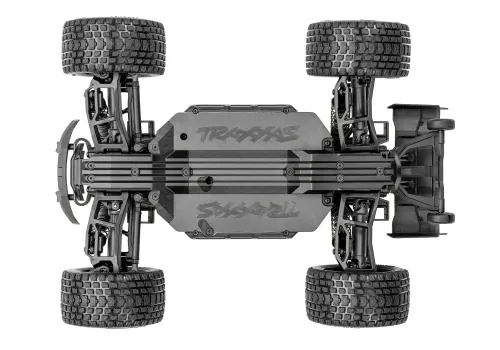

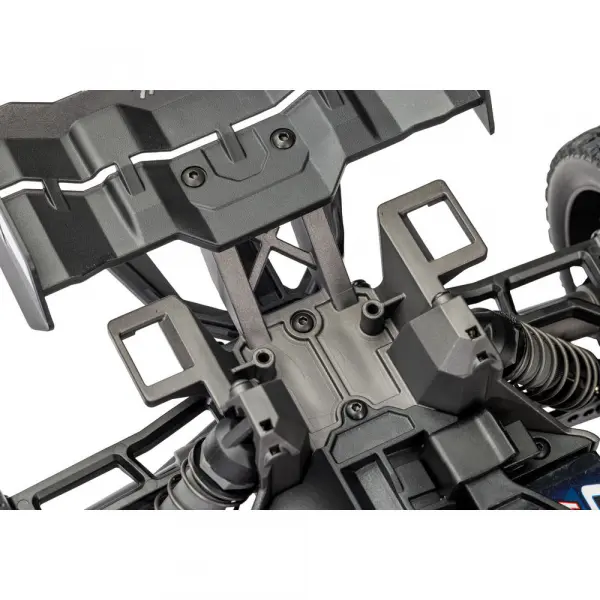

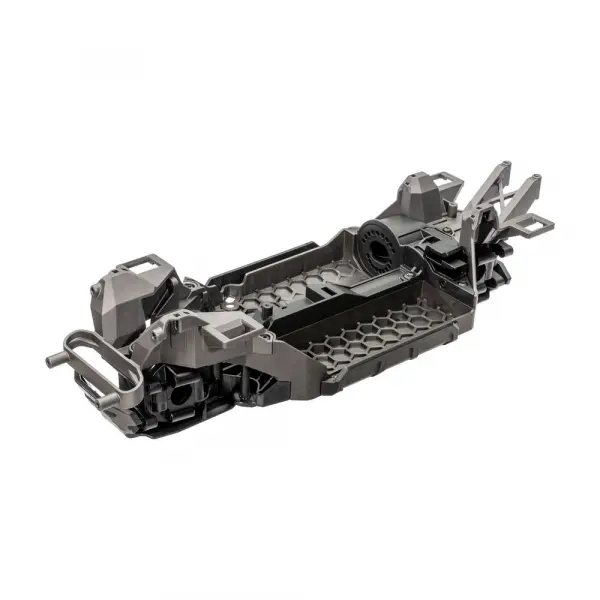

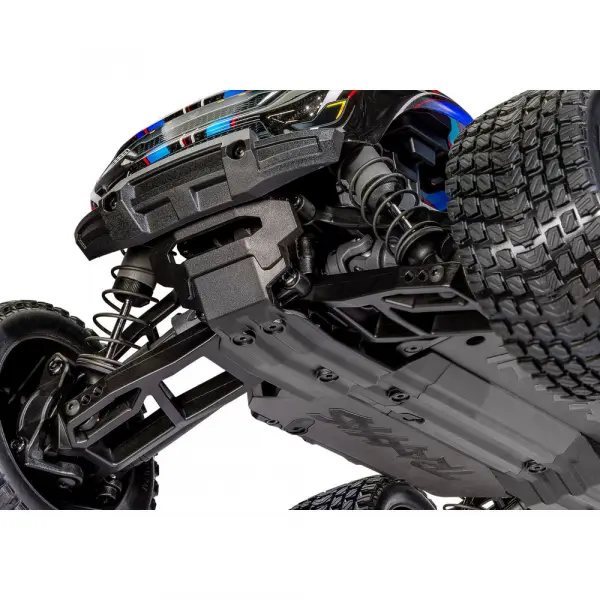

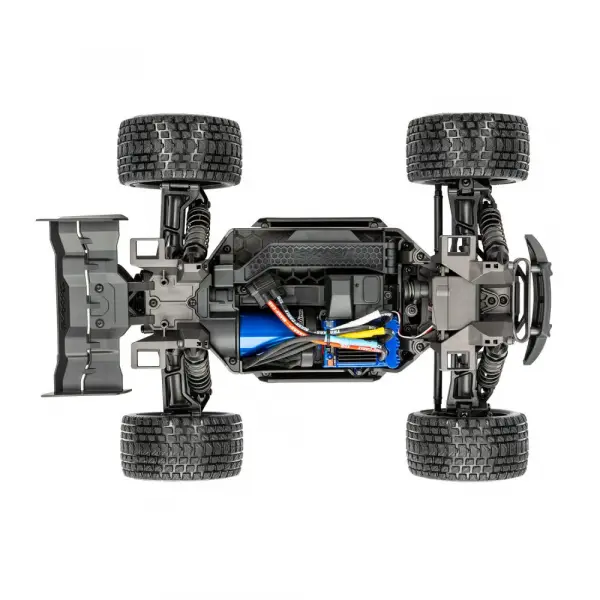

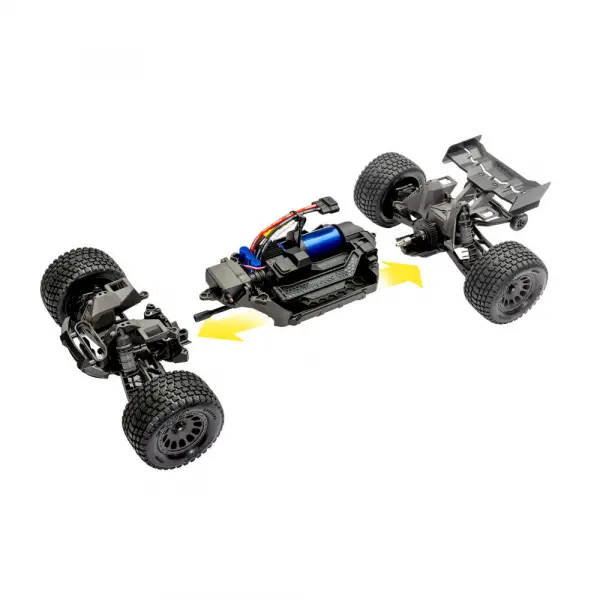

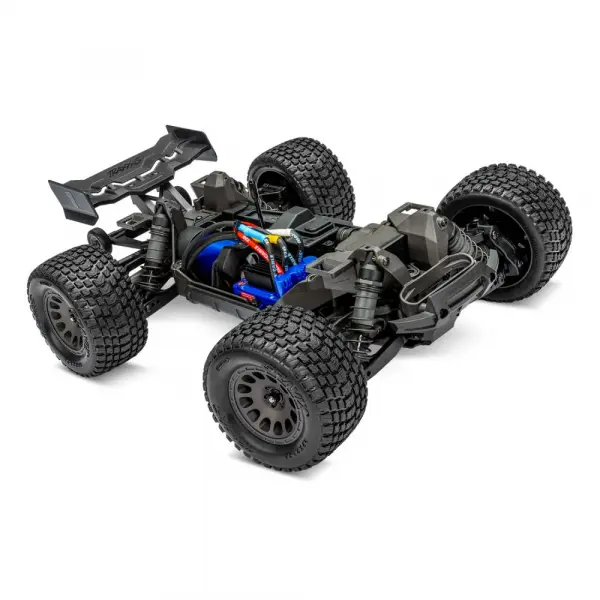

Maxx Chassis Technology

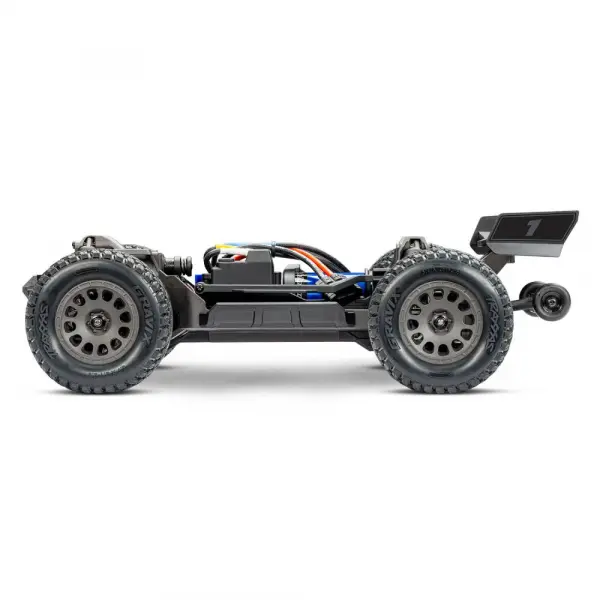

Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

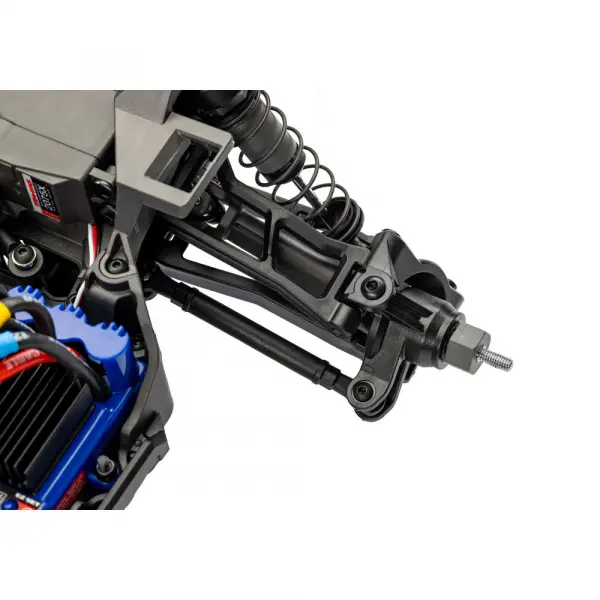

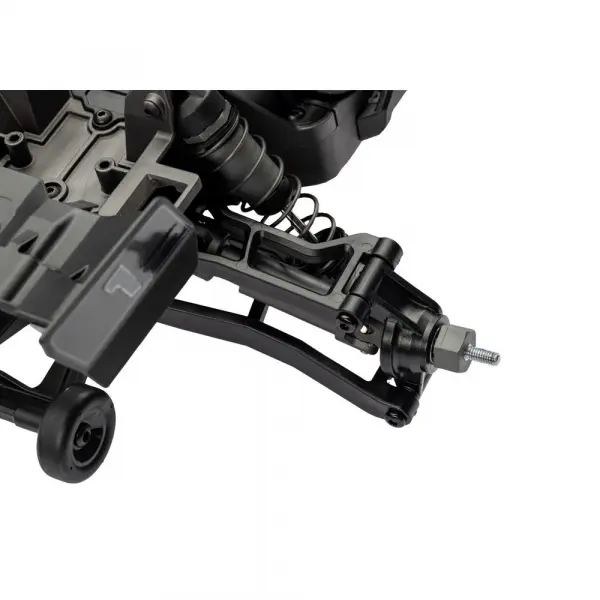

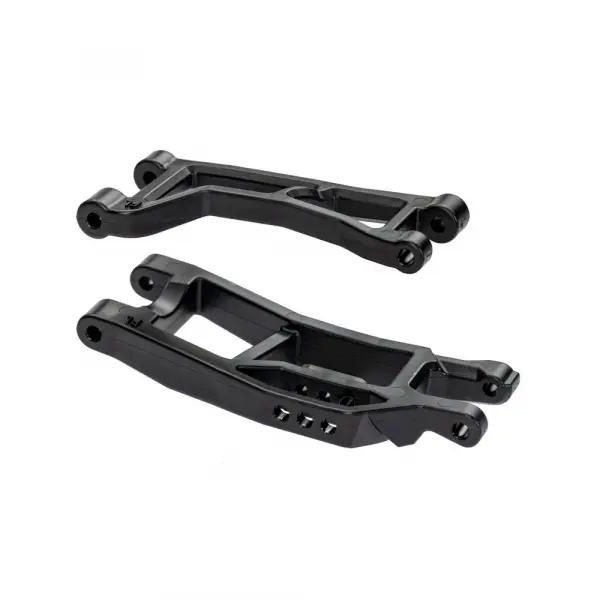

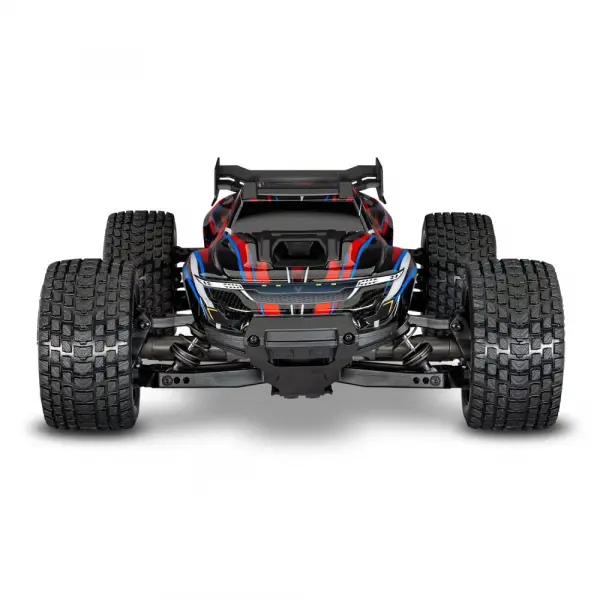

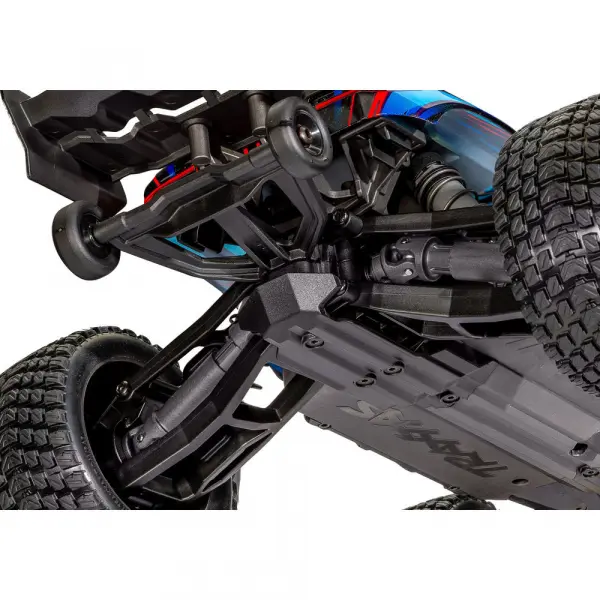

WideMaxx Suspension

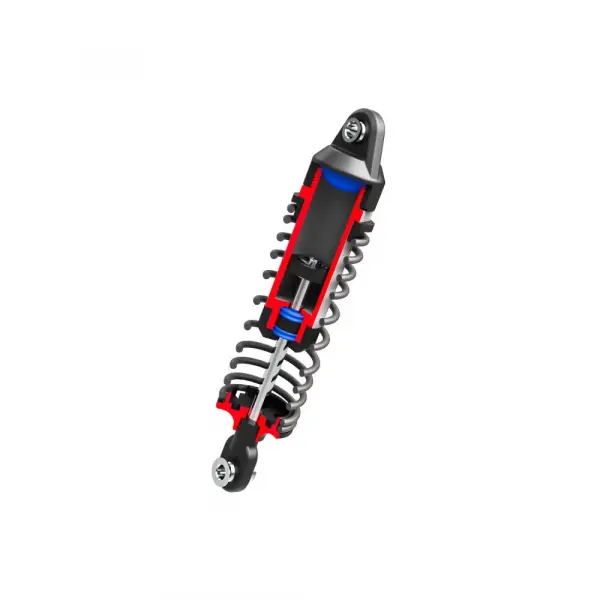

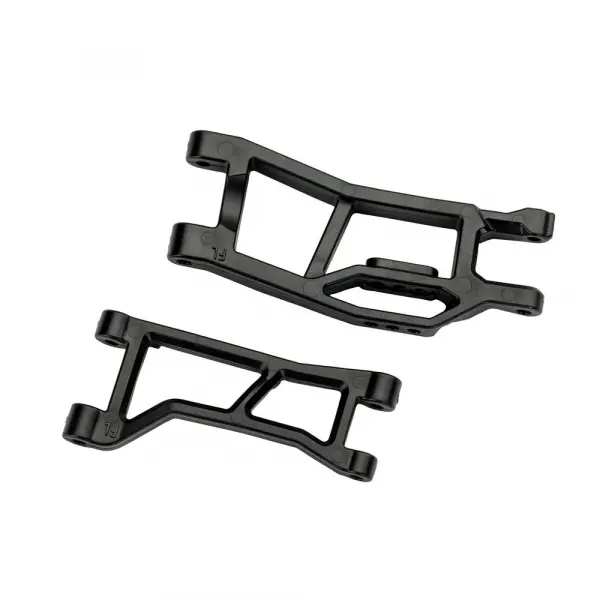

Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.

Traxxas Mini XRT Key Features

• Velineon VXL-3s brushless power system
• 40+ mph with included 2s LiPo battery
• Traxxas ID Charger included
• 55+ mph with 3s LiPo battery (upgrade option, 3s LiPo TRA2824X not included)

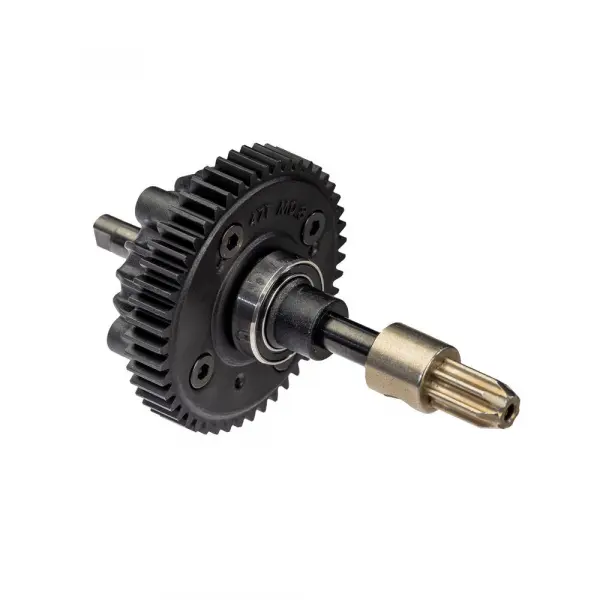

• High-performance center differential
• High-torque, metal-gear 2075X servo
• New WideMaxx suspension
• TQi radio system with TSM®

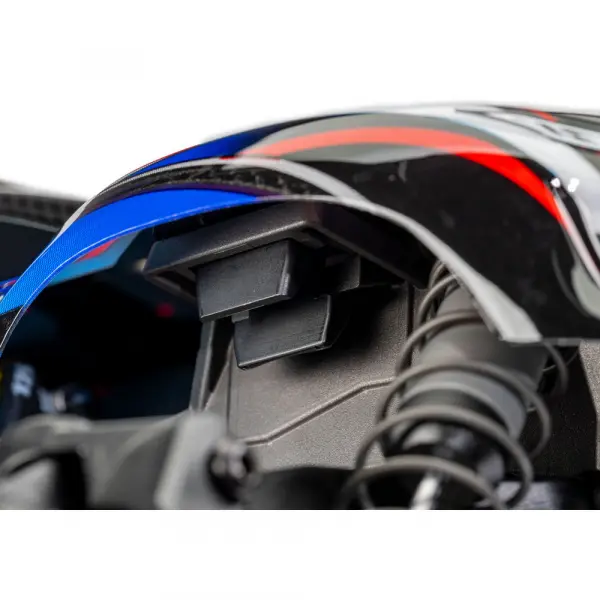

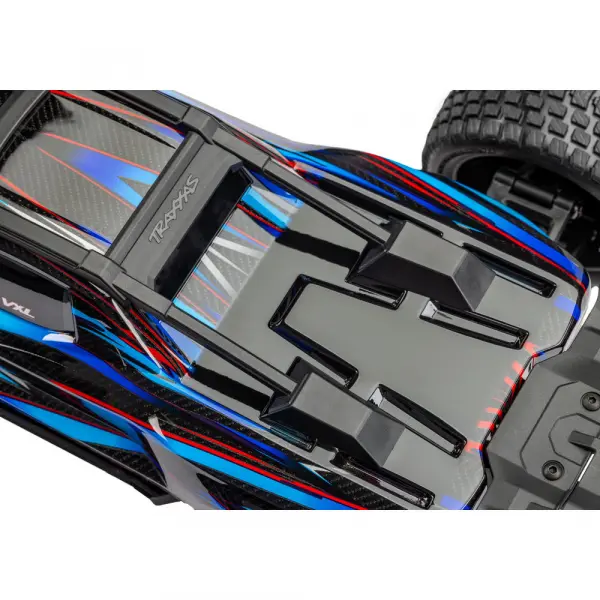

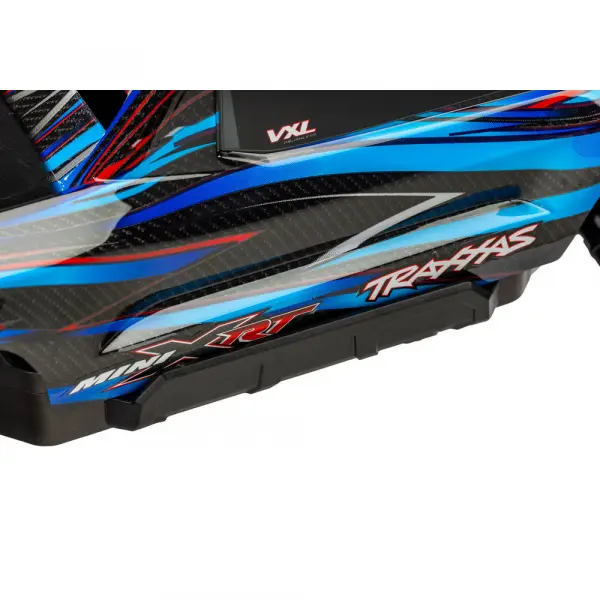

• Clipless body retention

Traxxas Mini XRT Specs:

• Length: 14.8 inches (376 mm)
• Front Track: 11 inches (279 mm)
• Rear Track: 11 inches (279 mm)
• Ground Clearance: 1.06 inches (27 mm)
• Weight: 3.99 pounds (1.81 kg)
• Height: 5 inches (127 mm)
• Wheelbase: 8.66 inches (220 mm)
• Shock Length: 3.45 inches (88 mm)
• Tire Diameter: 3.7 inches (94 mm)
• Wheel Diameter: 2.1″ (53 mm) outer, 2.6″ (66 mm) inner
• Speed Control: VXL-3s brushless ESC
• Motor (electric): Velineon 3500 (3500 Kv)
• Transmission: Direct-drive with center differential
• Overall Drive Ratio: 7.36:1
• Differential Type: Planetary, steel gear
• Gear Pitch: 32
• Chassis Structure/Material: Composite modular tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD

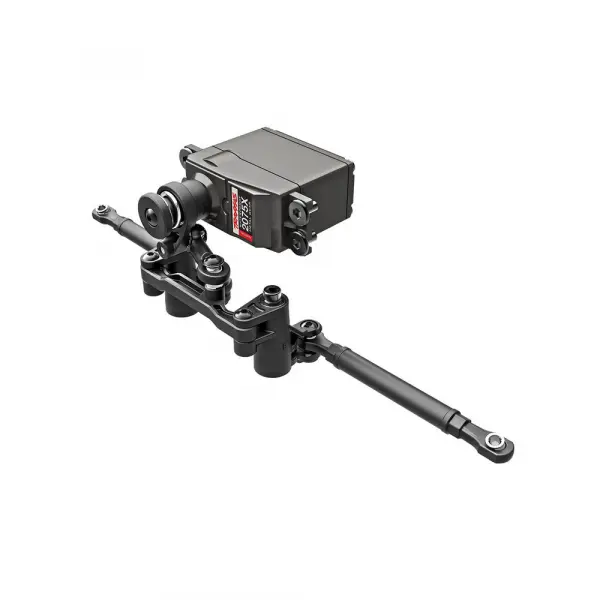

• Steering: Double-shear bellcrank

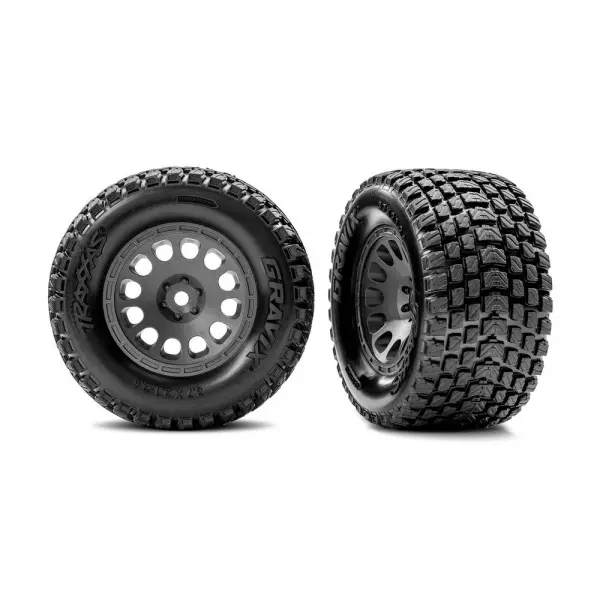

• Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
• Radio System: TQi 2.4 GHz high output(2-channel) w/ TSM

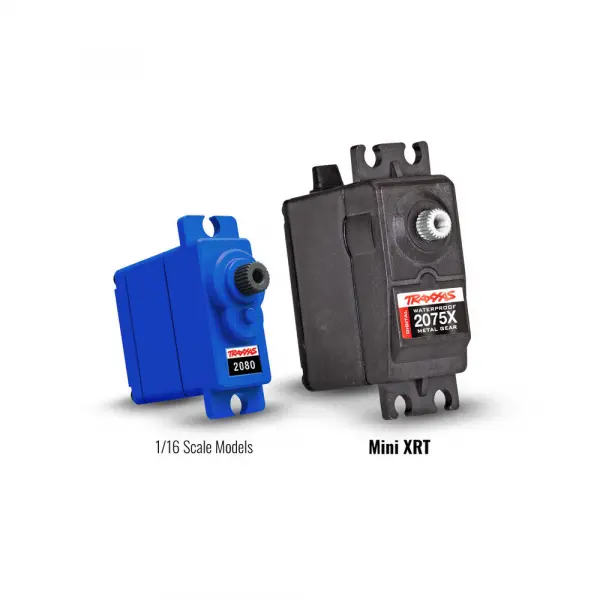

• Servo: Waterproof high-torque, metal-gear 2075X
• Top Speed: 55+ mph
• Skill Level: 1
• Battery Tray: 113 mm L x 41 mm W x 22 mm H
• Required Batteries: 4 “AA” (transmitter)

What’s In The Box:

• Mini XRT Ready-To-Race monster truck
• Velineon VXL-3s brushless power system
• 3500 mAh 2-cell LiPo battery
• 2-amp USB-C charger
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
• Charging Accessories: Power adapter 2912 and power cable 2916 recommended for peak charging performance.
