Vanquish URB Jimmy's 4x4 Moonbuggy Kit SCH-VPS09029A
Brand: Vanquish
Part No: SCH-VPS09029A
Out of stock
Request Stock NotificationFinance options available at checkout.
Description

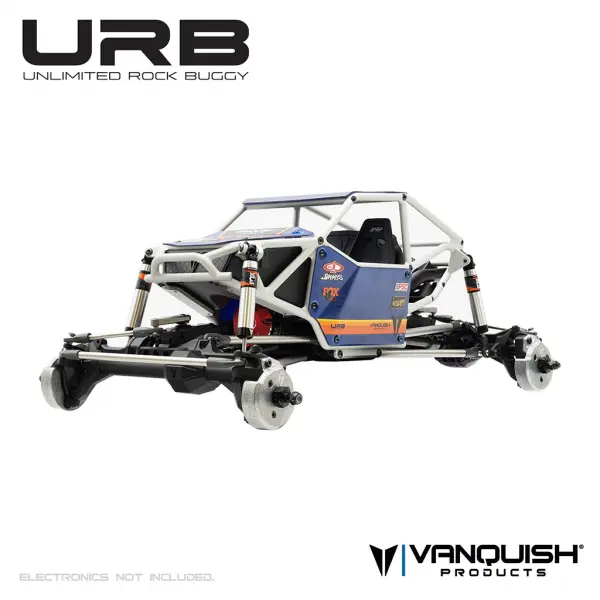

The Vanquish URB Jimmys 4x4 Moonbuggy, part SCH-VPS09029A, is an unassembled 1/10 scale 4WS buggy kit for trail and rock-crawling builds. The kit combines an officially licensed Jimmy's 4x4 aluminium cage with Vanquish's URB platform, giving builders a detailed base for a customised radio-controlled vehicle. Wheels, tyres and electronics are not included, and the completed model shown in some product images is for demonstration only.

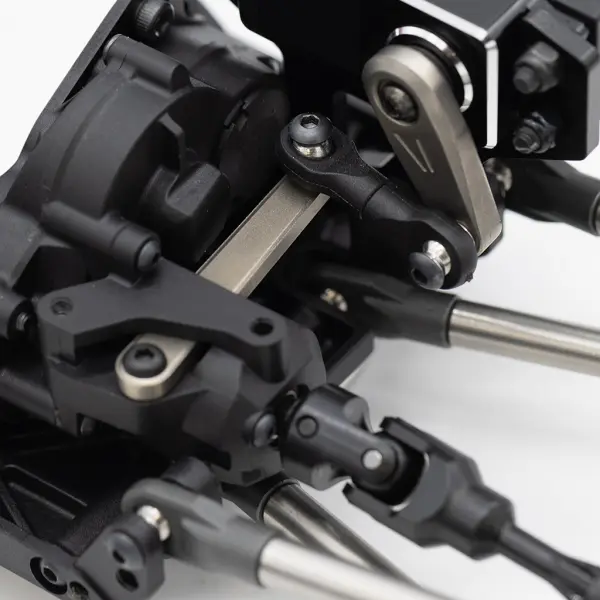

At the centre of the drivetrain is the LFD transmission, which uses precision-machined hardened 48P gears and hardened steel shafts in a compact design. Its integrated dig unit can disengage the rear drivetrain to provide tighter turning capability. The front and rear F10W axles are 15.5 mm wider than standard F10 portals, while the driver-side offset pumpkin layout helps maintain ground clearance and steering angle at both ends. Four-wheel steering is part of the platform.

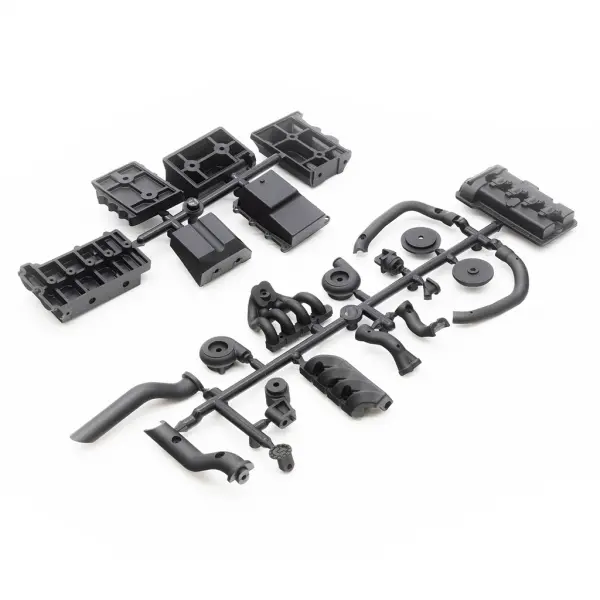

The FOX S8I scale rock crawler shocks are oil-filled and feature dual internal springs, precision pistons and seals. With an eye-to-eye length of 110 mm, their layout supports a lower centre of gravity while allowing the tyres to move down over uneven ground. The kit also includes a detailed engine for painting, plus an interior ready for customisation and a scale driver.
Specifications
- Scale: 1/10
- Overall width, hex to hex: 215.5 mm
- Wheelbase: 339 mm
- Front axle ratio: 5.25:1
- Rear axle ratio: 5.78:1
- Final overdrive: 9.6%
- Shock length: 110 mm
Required to Complete
- Tools and paint
- 2.2-inch tyres
- 2.2-inch wheels; suggested compatibility includes Vanquish Products or SLW hub-compatible wheels
- Transmitter and receiver
- Standard-length 540 motor
- Steering servo and low-profile dig servo; 25T servo horns are included
- ESC and battery
Secured by Stripe
Specifications

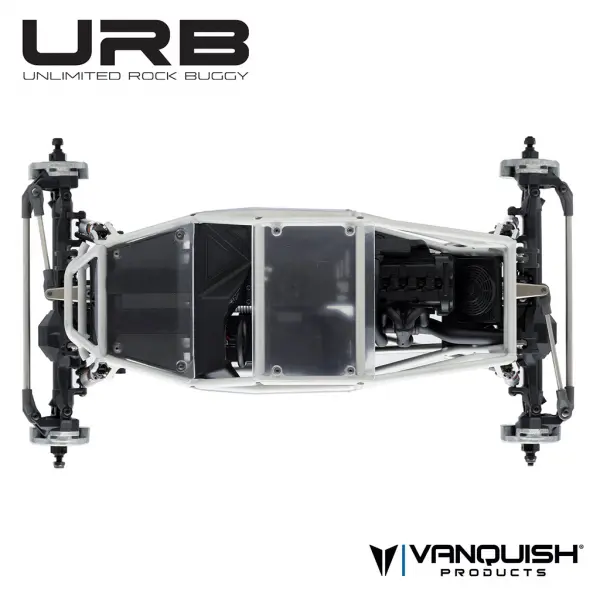

The URB (Unlimited Rock Buggy) platform was developed with buggy lines and trails in mind. Paired with an officially licensed Jimmy's 4x4 aluminum cage, this 4WS buggy kit is ready for the trails! Be sure to gather paint, electronics, wheels and tires and get ready for an incredible build!
At the heart of the URB drivetrain is the all-new LFD transmission. Featuring a lightweight set of precision-machined, hardened 48P gears, hardened steel shafts, and a compact, purpose-built design, the LFD transmission delivers exceptional durability, smooth operation, and precise performance. The LFD transmission features an integrated dig unit that allows the rear drivetrain to be disengaged, providing enhanced maneuverability and tighter turning capability.

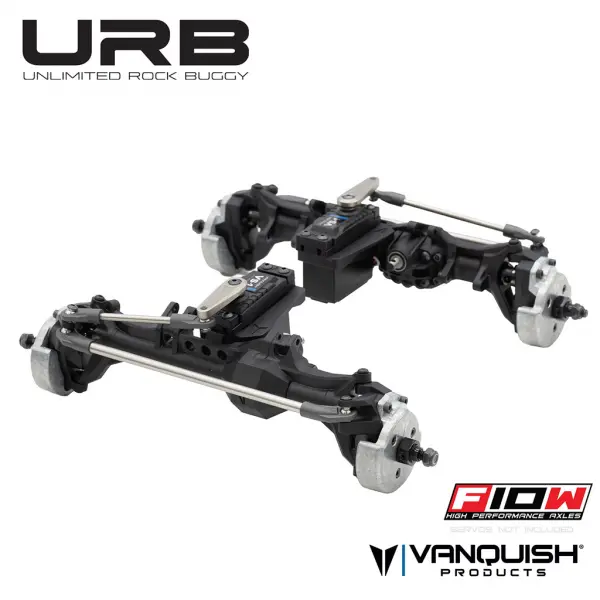

Connecting the wheels to the transmission is an all new set of F10W axles. The F10W axles feature a wider, stronger platform for enhanced performance. At 15.5 mm wider than our standard F10 Portals, they provide increased stability without sacrificing ground clearance. The front and rear driver-side off-set pumpkin design, optimizes both ground clearance and steering angle for maximum capability at each end of the vehicle.
Vanquish Products is proud to share its partnership with FOX. Collaborating on our S8I Scale Rock Crawler Shocks, Vanquish Products is able to replicate the look and performance of a 1:1 counterpart FOX shock. Inside each S8I oil-filled shock are dual internal springs matched with high precision pistons and seals combining for a total of 110mm of length eye-to-eye. This results in a lower center of gravity and ensures tires can still travel downward for traction on uneven surfaces.
To complete the realism, a detailed engine ready for your paint job is included. In the cabin is an interior ready for your customization and your scale driver.
Specifications
1/10th Scale
Overall Width Hex to Hex - 215.5mm (8.4”)
Wheelbase - 339mm (13.3”)
Front Axle Ratio 5.25:1
Rear Axle Ratio - 5.78:1
Final Overdrive 9.6%
110mm Shocks
Required Items
TOOLS
PAINT
2.2” TIRES
2.2" WHEELS (VANQUISH PRODUCTS OR SLW HUB COMPATIBLE WHEELS REQUIRED)
TRANSMITTER / RECEIVER
540 MOTOR (STANDARD LENGTH)
STEERING SERVO (25T SERVO HORN INCLUDED IN KIT)
DIG - LOW PROFILE SERVO (25T SERVO HORN INCLUDED IN KIT)
ESC
BATTERY
Disclaimer
Please note: This is an unassembled kit, and wheels, tires, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.
Key Info:
- Brand: Vanquish
- Part No: SCH-VPS09029A
- Barcode: 5051294222154
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Vehicle Type: Rock Crawler
- Build Level: Unassembled (Kit)
