Vanquish VRD Carbon - Kit
Brand: Vanquish
Part No: SCH-VPS09015
Out Of Stock

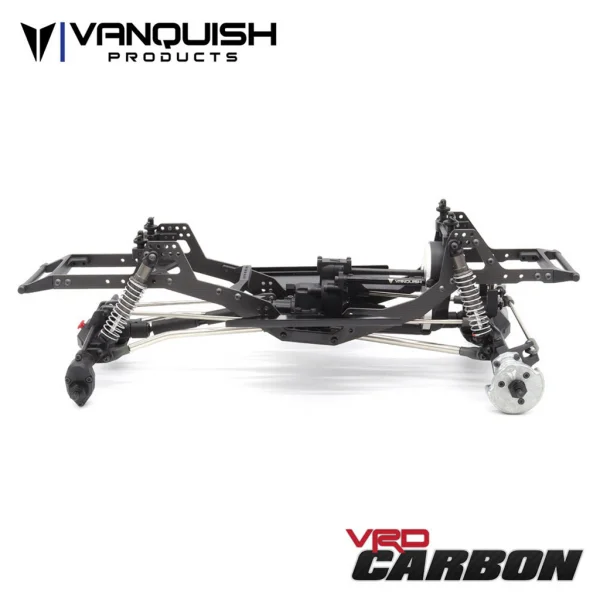

Request Stock NotificationThe Vanquish VRD Carbon Kit (part number SCH-VPS09015) is a competition-focused 1/10 crawler platform developed by experienced RC rock crawling designers. Centred around a lightweight-spec VFD transmission and updated F10 competition-inspired portal axles, it delivers predictable handling, low centre of gravity and tuning flexibility for demanding terrains.
Key Features
- Lightweight Spec VFD Transmission with machined aluminium motor plate
- 3mm matte carbon fibre frame rails with 6° flat skid plate
- 37% final overdrive (VFD + front overdrive portal gears)
- F10 portal axles with servo-on-axle front and 4-link
- Brass weight tubes in both axles; alloy heavy portal knuckle weights
- Lightweight machined chromoly VFD transmission gears
- Machined spool, ring and pinion gears in axles
- Chromoly universal axle shafts
- Incision S8E shocks with hard anodised bodies
- Stainless steel links with HD bent rear lowers and Incision Pro M4 rod ends
- Stamped aluminium rock sliders
- Adjustable multi-point body mounting system

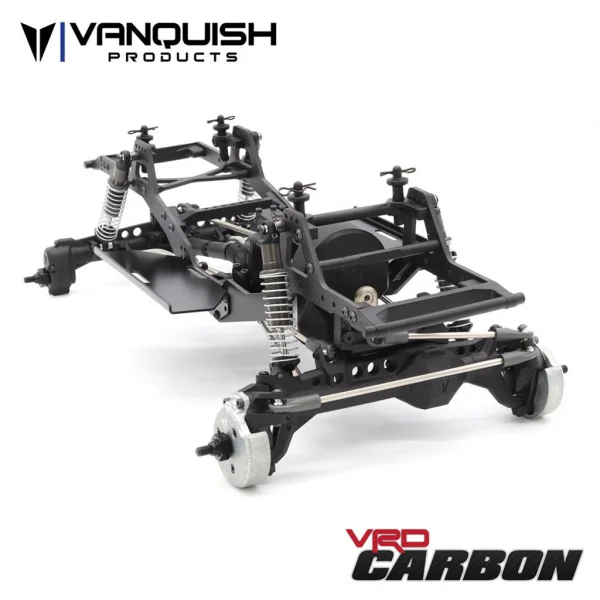

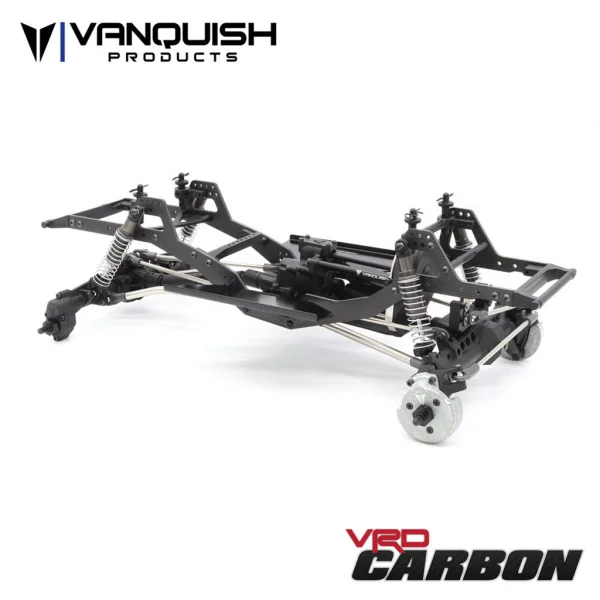

Chassis

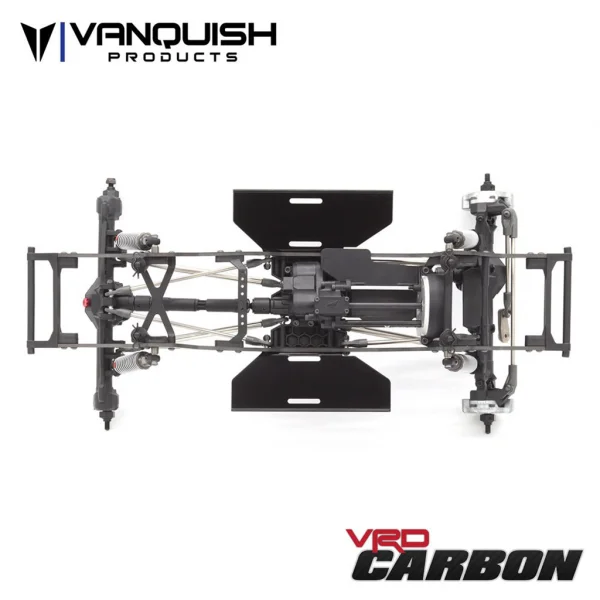

The VRD Carbon chassis uses new moulded components to create a highly tunable layout. Multiple shock and body mounting positions simplify body fitment, while minimalist interchangeable bumpers and stamped aluminium rock sliders provide protection and flat mounting areas for electronics or battery placement.
Drivetrain
The lightweight-spec VFD transmission minimises mass without sacrificing durability, featuring machined aluminium bearing plates and lightweight chromoly gears. A built-in 21% T-case overdrive pairs with front overdrive portal gears (rear standard ratio) to achieve a 37% final overdrive. Brass weight tubes and alloy knuckle covers bias weight low and forward for confident climbing.
Suspension
Incision S8E shocks include multiple length tuning rod ends for an adjustable range of 85–95mm. Heavy-duty stainless lower links and lightweight uppers, combined with bent rear lowers, enhance clearance and breakover. Multiple shock positions enable broad ride height and geometry tuning.
Specifications
- Scale: 1/10
- Front axle ratio: 5.25:1
- Rear axle ratio: 6.25:1
- Pinion: 15T 32P
- Spur: 52T 32P
- Overall width (hex to hex): 200mm (7.87")
- Wheelbase: 322mm (12.67")
- Overall front ratio: 46.5:1
- Overall rear ratio: 68:1
- Final overdrive: 37%
Required Items to Complete
- Tools
- Paint
- Comp style body
- 1.9 x 4.75" tyres (recommended)
- 1.9 wheels (Vanquish Products or SLW hub compatible wheels required)
- Transmitter / receiver
- Steering servo (25-spline 20mm servo horn included)
- 540 motor
- ESC
- Battery (35mm x 35mm x 100mm maximum)
- Charger
Secured by Stripe
The Vanquish Products VRD Carbon Kit is our very first competition level platform brought to life by some of the industry's most experienced designers in the RC rock crawling segment. Utilizing an all new Lightweight Spec VFD Transmission and updated F10 competition inspired portal axles the VRD Carbon Kit is a highly competitive, predictable and versatile platform. The heart of the VRD Carbon Kit is a matte finish 3mm thick pair of carbon fiber frame rails mated to the 6 degree flat skid plate. The molded chassis components and skid plate place the lightweight spec VFD transmission as low as possible into the VRD chassis. For the first time the front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience.
- Lightweight Spec VFD Transmission
- 3mm Matte Carbon Fiber Frame Rails - 6 degree flat skid plate
- 37% Overdrive
- F10 Portal Axles
- Brass weight tubes in axles
- Alloy heavy portal knuckle weights
- Front Axle Overdrive Portal gears
- Rear Axle Standard Portal Gears
- Lightweight Machined Chromoly VFD Transmission Gears
- Machined Spool, Ring Gear, Pinion gear in axles
- Chromoly Universal axle shafts
- Hard Anodized Shock Bodies
- Stainless Steel Links with HD Bent rear links
- Incision Pro M4 Rod Ends
- Stamped Aluminum Rock Sliders
- Adjustable multi point body mounting system
Chassis
The Vanquish Products VRD Carbon chassis is equipped with all new molded chassis components that provide a tunable platform to adapt to the most demanding terrain. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.
Drivetrain

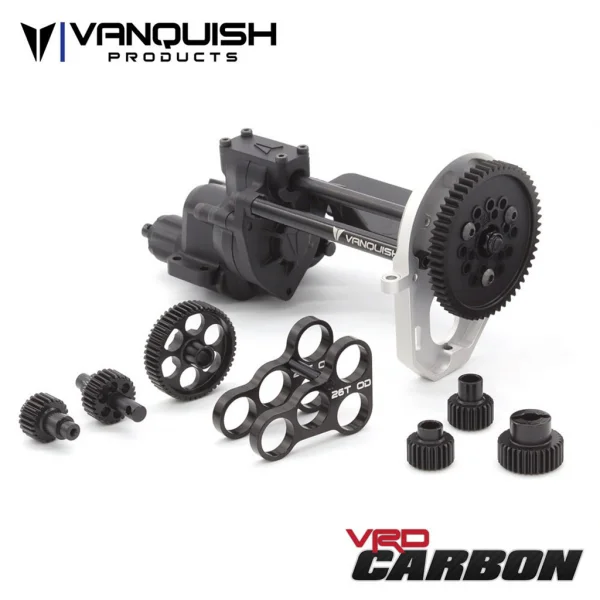

The center of the VRD Carbon Kit is the new lightweight spec VFD transmission. Equipped with a lightweight machined aluminum motor plate, aluminum motor plate standoffs, while omitting the cosmetic VFD tunnel for a high performance appearance. Internally the VFD is equipped with machined aluminum bearing plates and machined lightweight chromoly gears. Each internal gear has been re-designed to be as lightweight as possible dropping the weight of the overall transmission but maintaining a high level of durability. The T-Case has a built in 21% overdrive.

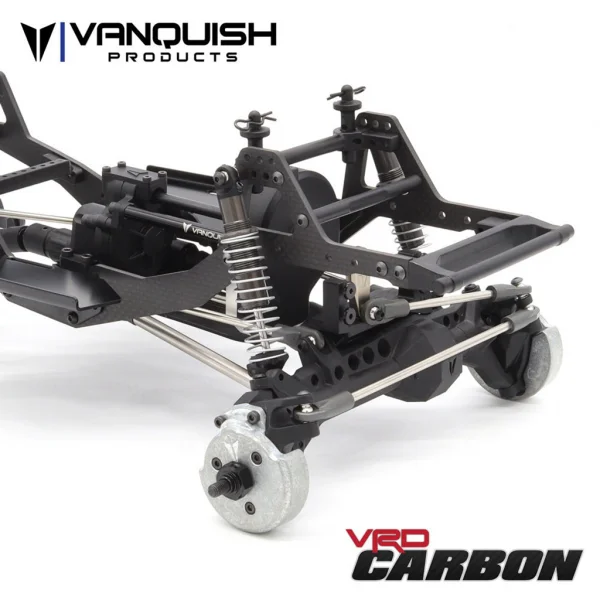

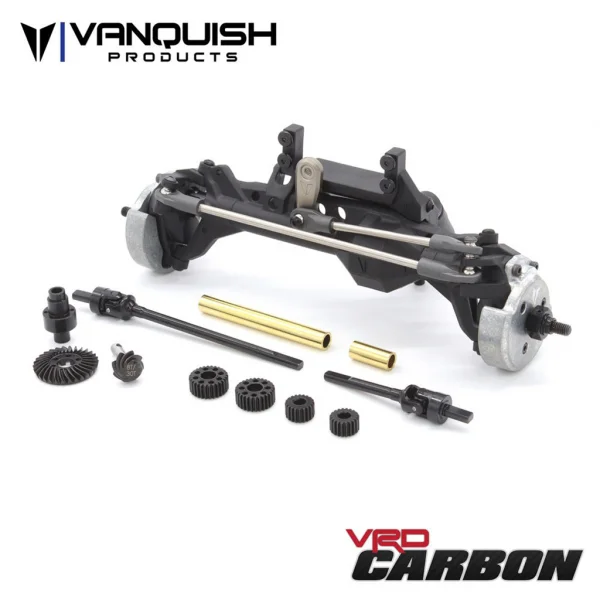

The Front F10 Portal axle has overdrive portal gears while the Rear F10 portal axle has the standard ratio gears, combined with the VFD overdrive the final overdrive percentage is 37%. Both axles include brass weighted tubes inside in addition to the alloy portal knuckle covers on the front axle. This is the heaviest spec F10 axle yet keeping the center of gravity as low as possible and the weight bias forward.
Suspension
The VRD Carbon Kit includes the Incision S8E shocks with hard anodized shock bodies and multiple length tuning rod ends for a final length range of 85-95mm. Heavy duty stainless steel lower suspension links and lightweight upper links connect the chassis to the axles with the new Incision Pro M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.
Specifications
- 1/10th Scale
- Front Axle Ratio 5.25:1
- Rear Axle Ratio 6.25:1
- Pinion 15T 32P
- Spur 52T 32P
- Overall Width Hex to Hex - 200mm (7.87”)
- Wheelbase - 322mm (12.67”)
- Overall Front Ratio 46.5:1
- Overall Rear Ratio 68:1
- Final Overdrive 37%
Required Items to Complete:
Tools
Paint
Comp Style Body
1.9 x 4.75” Tires (recommended)
1.9 Wheels (Vanquish Products or SLW Hub Compatible wheels required)
Transmitter / Receiver
Steering servo (25 spline 20mm Servo Horn included)
540 Motor
ESC
Battery (35mm x 35mm x 100mm Maximum)
Charger
Key Info:
- Brand: Vanquish
- Part No: SCH-VPS09015
- Barcode: 5051294193416
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Vehicle Type: Rock Crawler
- Build Level: Unassembled (Kit)
