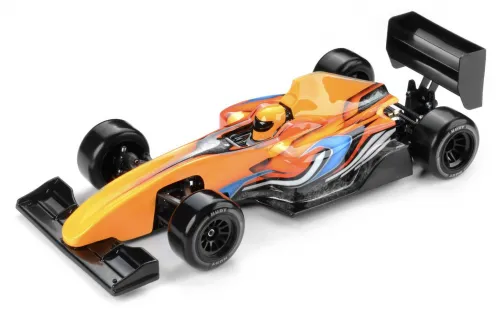

XRay X1 2025

The XRay X1 2025 (XR370709) introduces a redesigned platform centred on a one-piece, narrower chassis and a new top-mounted rear POD to reduce drag, improve tweak resistance and deliver consistent handling across conditions.

Refined adjustability includes set-screw POD angle control, rear droop via spring tension, lower roll centre options, an adjustable wing angle and a spring-free centre shock with a 1-hole piston. Ultra-light bulkheads, carbon fibre components and Snap Lock bushings focus on reliability, serviceability and a lower centre of gravity.

All-New Features For 2025

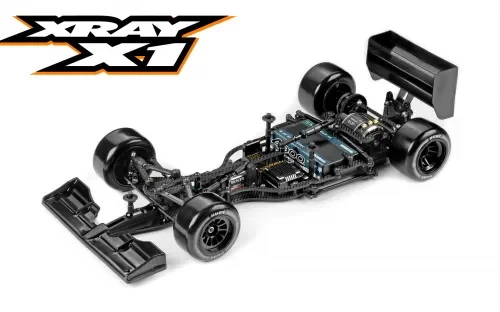

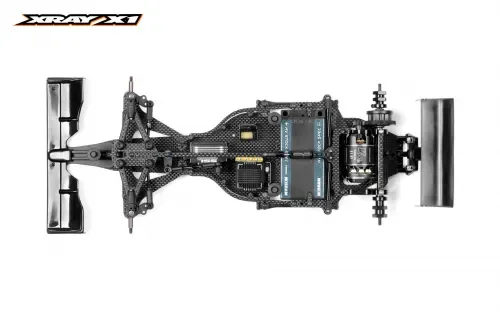

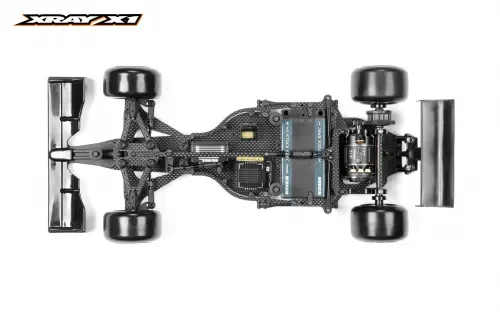

• All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
• Narrower chassis shape reduces chassis drag during cornering
• Rear POD concept on top of chassis for less drag and improved tweak resistance
• Adjustable POD angle controlled by set screw at the rear of chassis for fine tuning
• Rear spring location improves forward traction with increased adjustability and lower CG
• Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
• Universal rear spring nut holder works for both conical and linear springs
• 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs
• Ultra-light, lower CG bulkheads are foundation of new POD system
• Left side bulkhead has mounting holes incorporated to mount optional motor cooling fan
• Lowered pivot holder and small diameter pivot ball offer lower roll centre positions and greater adjustment range
• Carbon fibre top plate for centre shock and side damper mountings
• New rear carbon side spring brace aligns with new POD geometry
• Composite Snap Lock™ bushings press into carbon fibre parts for secure and reliable hardware installation
• All-new spring-free centre shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG
• Side braces with a narrower design save weight and leave more space for electronics and also allow better body fitment
• Narrower side brace mounting holders use M2.5 screws for weight savings
• Aluminium side link holders with 2-pin design for more rigidity and improved tweak resistance
• 2-pin carbon fibre side link plates integrate with aluminium holders for reliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability
• New wing mounting system which saves weight and provides cleaner design and improves the durability and track width adjustment possibilities
• New adjustable wing angle for greater adjustment possibilities
• New redesigned lower arms with more material around the holes for improved durability in serious crashes
• New battery mounting system works with rear brace and front backstop for convenient installation
• Two body post mounting position options for different battery packs allows for different configurations
• Aluminium side spring retainers for more precise and consistent side spring mounting
• Most commonly used soft front springs included in kit for best all-round starting set-up
