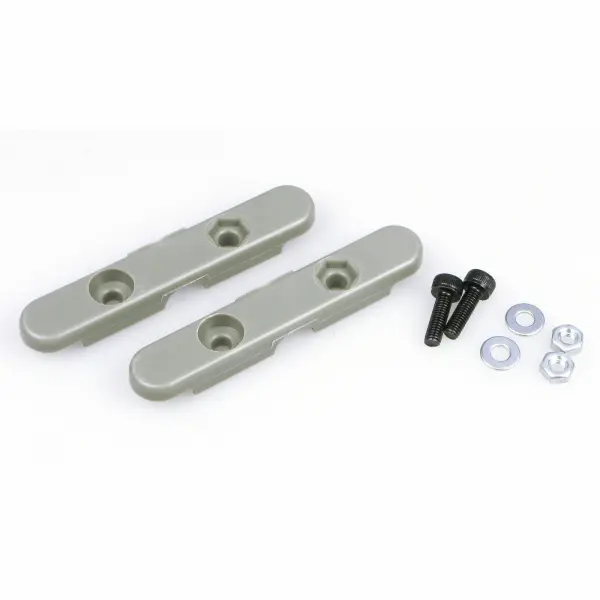

APC Folding Electric Hub For 40mm Spinner
Brand: APC
Part No: APCLPFH3
Backorder: Expected 26th June 2026
Request Stock NotificationThe APC APCLPFH3 Folding Electric Hub is a two-piece grey composite hub for APC folding propeller blades, providing a secure, streamlined setup for electric-powered aircraft. Suggested compatibility includes 40mm spinner systems or similar. The hub features moulded nut insets for easy tightening and is supplied with hardware. Blades and adapter rings are not included.
This 45mm folding hub uses an 8mm inner mounting diameter with a 30° taper for collets and adds 45mm to overall prop diameter. For smaller motor shafts, APC adapter rings LPAR18SF or LPARM12SF can be used (not included).
Key Features
- Two-piece grey composite hub for APC folding prop blades (blades not included)
- Suggested compatibility: 40mm spinners or similar setups
- Electric powered aircraft only (not for gas engines)
- Moulded nut insets for easy tightening
- Includes hardware
- Inner mounting diameter: 8mm ID with 30° taper for collets
- Use LPAR18SF or LPARM12SF adapter rings for centring on smaller shafts (not included)
- Hub adds 45mm to prop diameter
- To fit motor shaft size: 3.2 to 9.5mm
Tech Specs
- Overall length: 58mm
- Length between blade mounting centres: 45mm
- Weight: 9.922g (0.35oz)
- Shipping weight: 0.01kg (0.02lb)
- Colour: Grey
- Application: Folding
Secured by Stripe
45mm Folding Electric Hub for 40mm Spinner
APC Folding Propeller Hub 45mm LPFH3
Two-piece, gray composite propeller hub that goes on each side of the APC folding propeller blades to hold them in place.
(blades are not included)
The 45mm Folding Propeller Hub can be used with a 40mm spinner or similar.
Electric powered aircraft only (not for gas engines).
Hub has molded nut insets for easy tightening and includes hardware.
Overall Length: 58mm
Length between Blade Mounting Centers: 45mm
Inner Mounting Diameter: 8mm ID with 30 deg. taper for collets
Use LPAR18SF or LPARM12SF adapter rings for centering on smaller motor shafts (not included)
APC Folding Electric Hub For 40mm Spinner Key Features:
- 45mm Folding Electric Hub for 40mm Spinner
APC Folding Propeller Hub 45mm LPFH3
Two-piece, gray composite propeller hub that goes on each side of the APC folding propeller blades to hold them in place.
(blades are not included)
The 45mm Folding Propeller Hub can be used with a 40mm spinner or similar.
Electric powered aircraft only (not for gas engines).
Hub has molded nut insets for easy tightening and includes hardware.
Overall Length: 58mm
Length between Blade Mounting Centers: 45mm
Inner Mounting Diameter: 8mm ID with 30 deg. taper for collets
Use LPAR18SF or LPARM12SF adapter rings for centering on smaller motor shafts (not included) - Hub adds 45mm to prop diameter.
- To Fit Motor Shaft Size - 3.2 to 9.5mm
APC Folding Electric Hub For 40mm Spinner Tech Specs:
- Weight: 9.922g / 0.35oz
- Shipping Weight: 0.01kg / 0.02lbs
- Application: Folding
- Colour: Grey
Key Info:
- Brand: APC
- Part No: APCLPFH3
- Barcode: 686661450011
