APC Folding Electric Hub For 50mm Spinner

Brand: APC

Part No: APCLPFH5

£5.65 ~~RRP £5.95~~

Shadow Stock: Usually ships next day

Request Price Match Ask a Question Write a Review

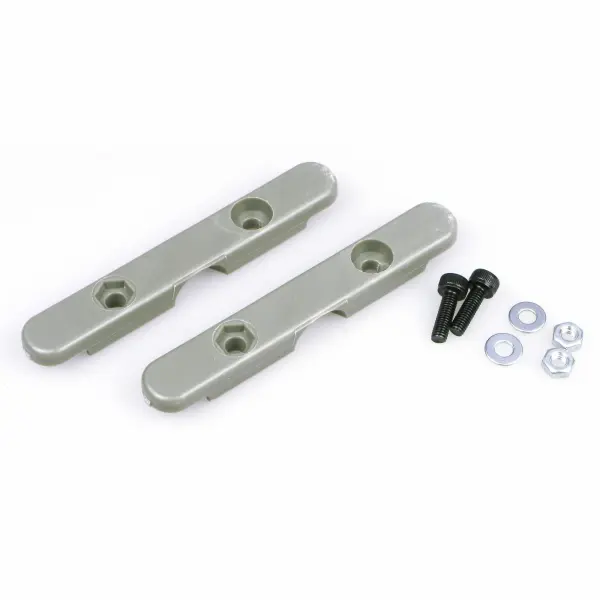

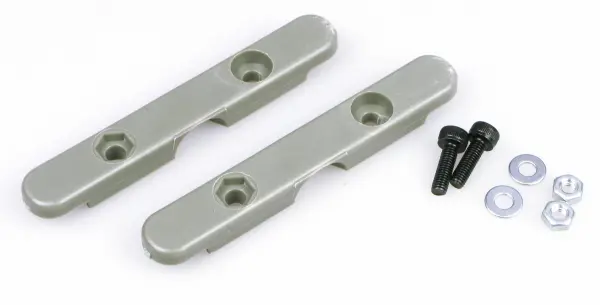

The APC APCLPFH5 (LPFH5) is a two-piece grey composite folding propeller hub designed for electric powered aircraft. It secures APC folding blades (not included) and provides a precise, durable interface with moulded nut insets and included hardware.

Key Features

Two-piece grey composite folding propeller hub (LPFH5) for electric aircraft
Suggested compatibility: 50mm spinner or similar
Moulded nut insets for easy tightening; includes hardware
Adds 55mm to overall propeller diameter
Inner mounting diameter: 8mm ID with 30 deg taper for collets
Use LPAR18SF or LPARM12SF adapter rings to centre on smaller motor shafts (not included)
To fit motor shaft sizes 3.2–9.5mm

Tech Specs

Overall length: 68mm
Blade mounting centre distance: 55mm
Weight: 11.907g (0.42oz)
Application: Folding
Colour: Grey

Notes

For electric powered aircraft only; not suitable for gas engines
Blades not included

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

55mm Folding Electric Hub for 50mm Spinner
APC Folding Propeller Hub 55mm LPFH5
Two-piece, gray composite propeller hub that goes on each side of the APC folding propeller blades to hold them in place.
(blades are not included)
The 55mm Folding Propeller Hub can be used with a 50mm spinner or similar.
Electric powered aircraft only (not for gas engines).
Hub has molded nut insets for easy tightening and includes hardware.
Overall Length: 68mm
Length between Blade Mounting Centers: 55mm
Inner Mounting Diameter: 8mm ID with 30 deg. taper for collets

Use LPAR18SF or LPARM12SF adapter rings for centering on smaller motor shafts (not included)

APC Folding Electric Hub For 50mm Spinner Key Features:

55mm Folding Electric Hub for 50mm Spinner
APC Folding Propeller Hub 55mm LPFH5
Two-piece, gray composite propeller hub that goes on each side of the APC folding propeller blades to hold them in place.
(blades are not included)
The 55mm Folding Propeller Hub can be used with a 50mm spinner or similar.
Electric powered aircraft only (not for gas engines).
Hub has molded nut insets for easy tightening and includes hardware.
Overall Length: 68mm
Length between Blade Mounting Centers: 55mm
Inner Mounting Diameter: 8mm ID with 30 deg. taper for collets

Use LPAR18SF or LPARM12SF adapter rings for centering on smaller motor shafts (not included)
Hub adds 55mm to prop diameter.
To Fit Motor Shaft Size - 3.2 to 9.5mm

APC Folding Electric Hub For 50mm Spinner Tech Specs:

Weight: 11.907g / 0.42oz
Shipping Weight: 0.01kg / 0.02lbs

Application: Folding
Colour: Grey

Key Info:

Brand: APC
Part No: APCLPFH5
Barcode: 686661550018
