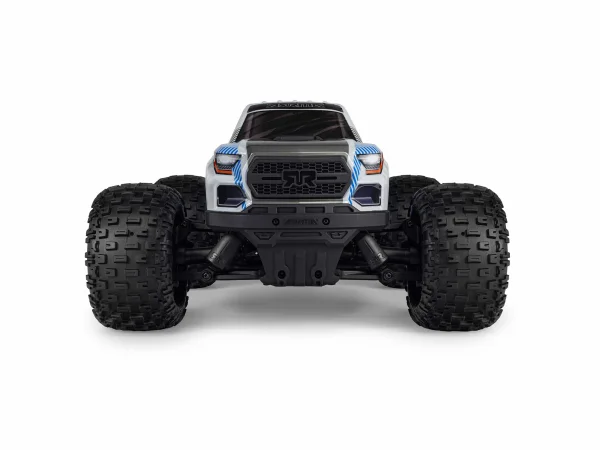

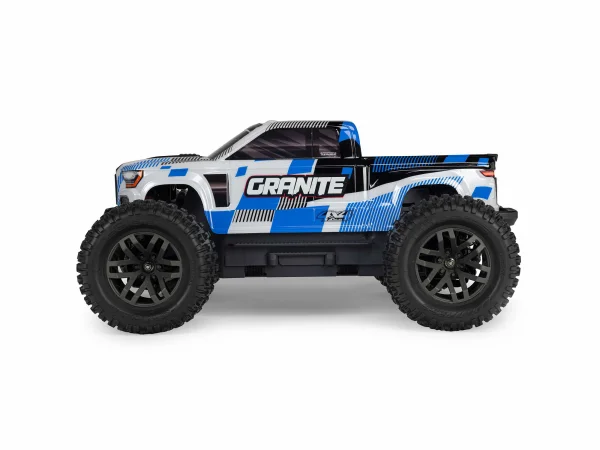

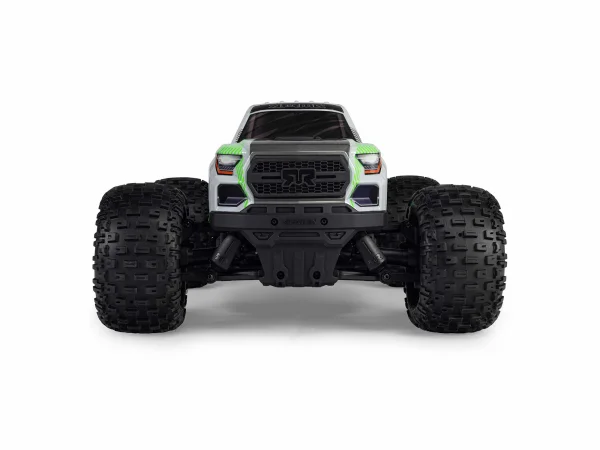

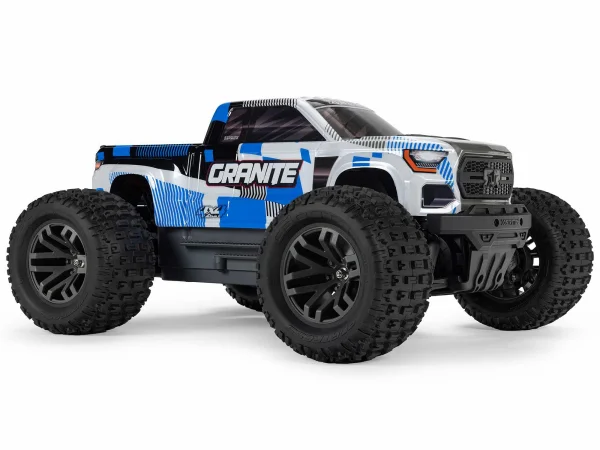

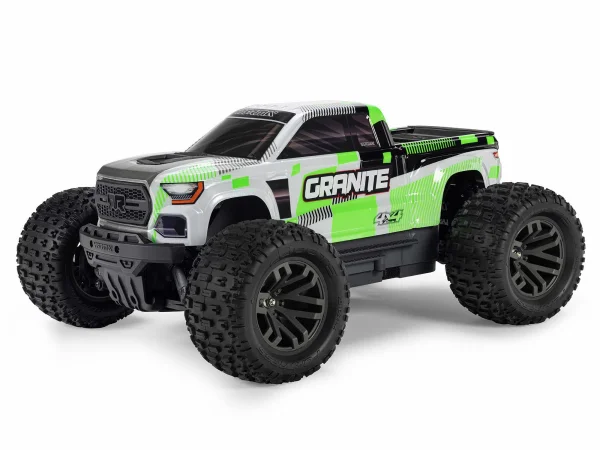

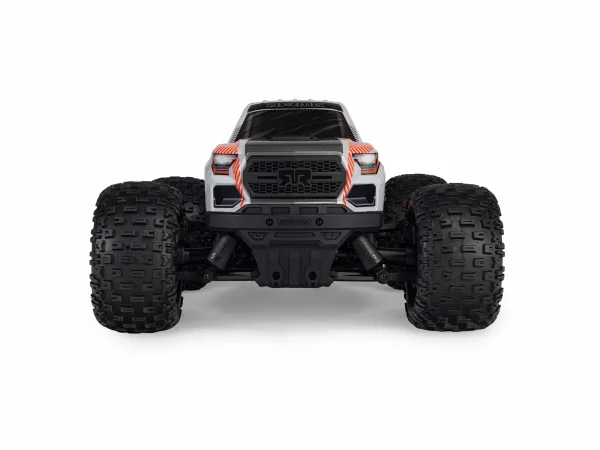

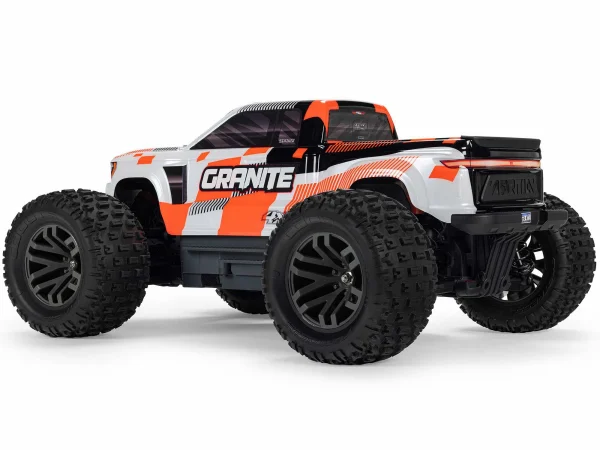

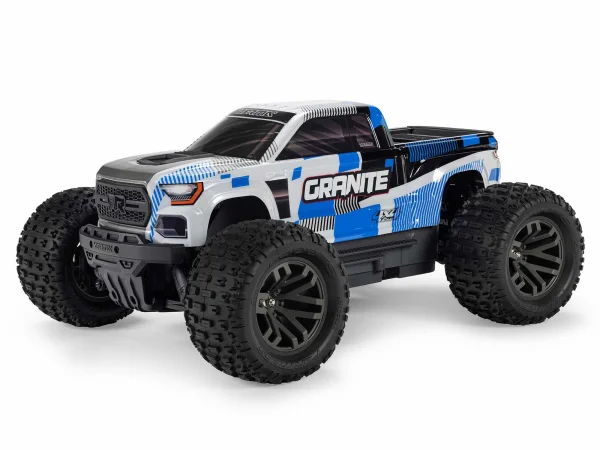

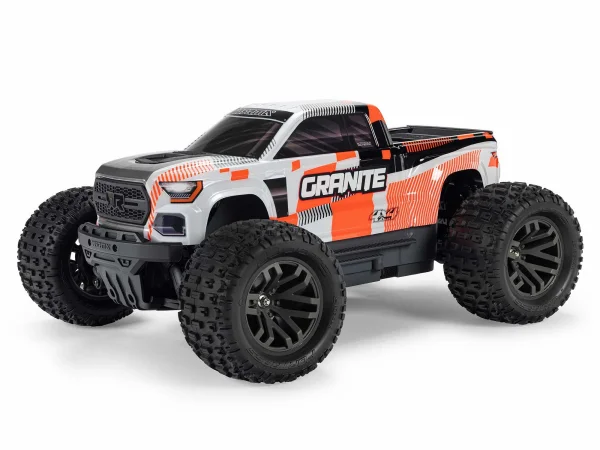

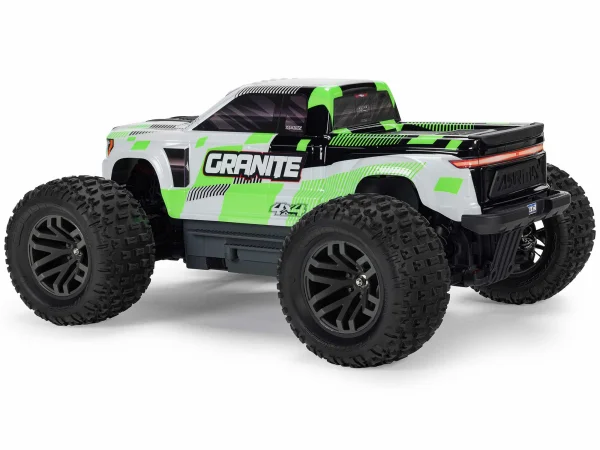

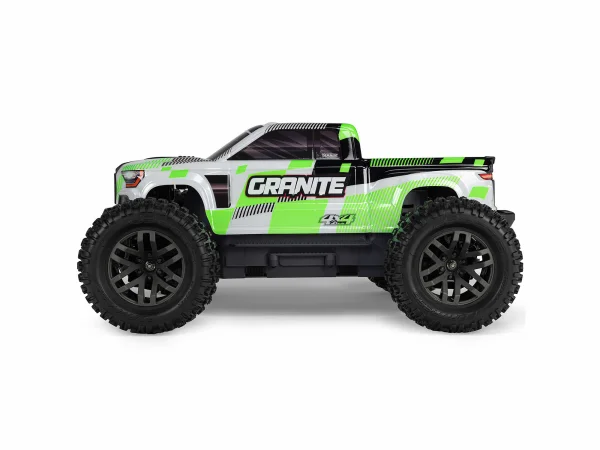

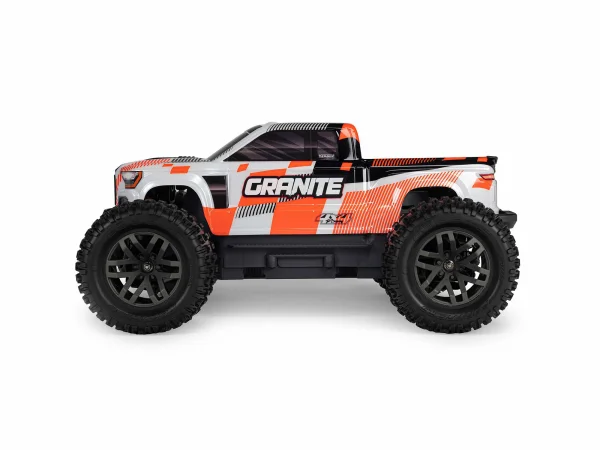

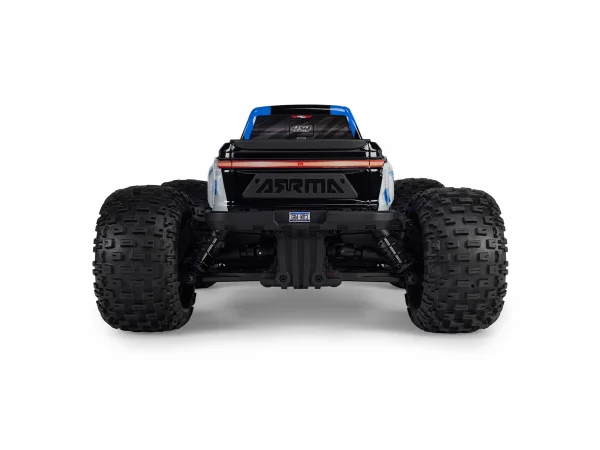

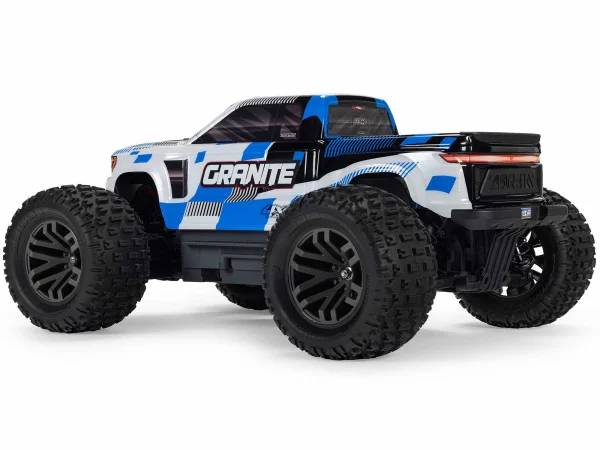

Arrma Granite Mega 665 4x4 RTR Monster Truck - ARA4202V4
Brand: Arrma
Part No: ARA4202V4
Shadow Stock: Usually ships next day
Save with a Combo Package
Our recommended kit, bundled at a combined priceFrequently Bought With
Other items customers often buy with the Arrma Granite Mega 665
Description
The Arrma Granite Mega 665 4x4 brushed monster truck (ARA4202V4) delivers tough, ready-to-run performance with the latest MEGA 665 power system and proven 1/10 scale durability. A high-torque 665 brushed motor with aluminium heatsink and 35mm cooling fan feeds a 3S brushless‑ready transmission that’s protected by a maintenance‑free overload coupling. The strong composite chassis benefits from extended height side guards and ventilation, while oil‑filled, coilover shocks and multi‑surface dBoots Fortress MT tyres keep it composed across dirt, gravel and short grass. A clipless body system preserves the aggressive GRANITE styling, and Spektrum SLT electronics provide reliable control.
Key Features
- MEGA 665 high‑torque brushed motor with aluminium heatsink and 35mm cooling fan
- 3S brushless‑ready transmission with maintenance‑free overload coupling
- Aggressive GRANITE body with hidden clipless body retention
- Strong composite chassis with higher side guards and ventilation
- Oil‑filled, coilover shocks and impact‑absorbing bumpers
- Multi‑surface dBoots FORTRESS MT tyres on tough multi‑spoke wheels
- Spektrum SLT 2‑in‑1 40A waterproof ESC/receiver and SLT2 2.4GHz transmitter
- Spektrum S661 waterproof metal‑gear digital steering servo
- Ready‑to‑Run – only battery and charger required
- Two‑year limited warranty
Specifications
- Scale/Type: 1/10 4WD monster truck
- Completion Level: Ready‑To‑Run
- Power: Electric, brushed (MEGA 665, 14T)
- Drivetrain: 4x4 with gear differentials
- Internal Gear Ratio: 2.85
- Pinion: 15T; Spur Gear: 57
- Shock Type: Oil‑filled, coil‑over springs
- Tires: dBoots Fortress MT; Wheels: multi‑spoke
- Wheel Hex: 14mm
- Electronics: Spektrum SLT 2‑in‑1 40A ESC/receiver; SLT2 2.4GHz transmitter; S661 metal‑gear digital servo
- Connector Type: IC3
- LiPo (suggested compatibility): 2S
- Max Battery Size: 165 x 51 x 48 mm (6.5 x 2.01 x 1.89 in)
- Dimensions (approx.): Length 470 mm (18.5"), Width 340 mm (13.38"), Height 204 mm (8.03"), Wheelbase 284 mm (11.18")
- Weight (approx.): 3.47 kg (7.65 lb)
- Water‑Resistant: Yes
- Technology: SLT protocol
In The Box
- GRANITE MEGA 665 4x4 1/10 Scale Monster Truck RTR
- Spektrum SLT 2‑in‑1 40A LiPo‑ready waterproof ESC & receiver (IC3)
- MEGA 665 14T high‑torque brushed motor with ARRMA heatsink & cooling fan
- Spektrum SLT2 2.4GHz transmitter
- Spektrum S661 waterproof metal‑gear digital servo
- 4x AA transmitter batteries
- Moulded hand tools (2.0mm and 2.5mm)
- Instruction manual
Requires To Complete
- 1x 2S hardcase LiPo battery (IC3 connector)
- Compatible battery charger
- LiPo safe charging bag
Secured by Stripe
Arrma Granite Mega 665 Manuals & Guides
Manuals & Guides
Exploded Diagrams & Parts
- Arrma Granite 665 Front Assembly Interactive Exploded View
- Arrma Granite 665 Chassis Assembly Interactive Exploded View
- Arrma Granite 665 Rear Assembly Interactive Exploded View
- Arrma Granite 665 Transmission Assembly Interactive Exploded View
- Arrma Granite 665 Front & Rear Diff Assembly Interactive Exploded View
- Arrma Granite 665 Shock Absorber Assembly Interactive Exploded View
- Arrma Granite 665 Bodyshell & Clipless System / Wheel & Tyre Interactive Exploded View
- Arrma Granite 665 Front Assembly Interactive Exploded View
- Arrma Granite 665 Chassis Assembly Interactive Exploded View
- Arrma Granite 665 Rear Assembly Interactive Exploded View
- Arrma Granite 665 Transmission Assembly Interactive Exploded View
- Arrma Granite 665 Front & Rear Diff Assembly Interactive Exploded View
- Arrma Granite 665 Shock Absorber Assembly Interactive Exploded View
- Arrma Granite 665 Bodyshell & Clipless System / Wheel & Tyre Interactive Exploded View
- Arrma Granite 665 Front Assembly Interactive Exploded View
- Arrma Granite 665 Chassis Assembly Interactive Exploded View
- Arrma Granite 665 Rear Assembly Interactive Exploded View
- Arrma Granite 665 Transmission Assembly Interactive Exploded View
- Arrma Granite 665 Front & Rear Diff Assembly Interactive Exploded View
- Arrma Granite 665 Shock Absorber Assembly Interactive Exploded View
- Arrma Granite 665 Bodyshell & Clipless System / Wheel & Tyre Interactive Exploded View
Specifications
Arrma Granite Mega 665 4X4 Brushed Monster Truck
Bash with unbeatable 4x4 grip when you step up to the 1/10 scale ARRMA GRANITE MEGA 665 - a ready-to-run brushed monster truck that offers amped-up power and toughness straight out of the box. Later, when you’re ready for even bigger performance, upgrading it to a brushless power system is drop-in easy.
There’s no better way to start your off-road bashing power trip than with the ARRMA GRANITE. And this updated GRANITE MEGA 665 4x4 takes the popular brushed monster truck’s impressive capabilities to the next level.
A high-torque, 11% larger MEGA 665 brushed motor replaces the 550-size motor of its predecessor, with an aluminum heatsink and 35mm cooling fan to boost efficiency and power. The included transmission is already 3S brushless-ready for future upgrades. It’s also protected against damage from excessive torque by a new, maintenance-free overload coupling.
The all-terrain suspension and oil-filled, coilover shocks soak up bumps. You can adjust the ride height to add more ground clearance for uneven surfaces. In any conditions, the multi-surface dBoots Fortress MT tires provide awesome traction. Extended height side guards on the strong composite chassis help keep onboard components free of dirt and debris.
The GRANITE body comes factory-finished in several fresh color schemes, and now uses a clipless body retention system to preserve its realistic, aggressive looks. High-quality Spektrum electronics round out the ready-to-run package, including an SLT2 2.4GHz transmitter, LiPo-ready SLT 2-in-1 40A ESC/Receiver, and S661 digital metal-gear servo for precise, powerful steering.

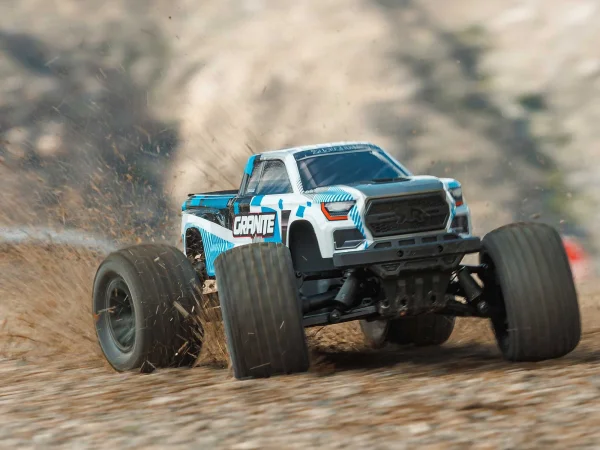

Just add your own battery and charger. Then, take your ARRMA GRANITE MEGA 665 4x4 to your favorite dirt, gravel, or short grass bashing grounds. Set up some ramps or dirt mounds. Grab the transmitter, punch the throttle - and get set for some monster bashing fun!
Arrma Granite Mega 665 4X4 Brushed Monster Truck Features
- 3S brushless-ready transmission for easy upgrades
- Maintenance-free overload coupling transmission protector
- Aggressive GRANITE monster truck body
- Hidden clipless body retention system
- High-torque MEGA 665 brushed motor
- Aluminum motor heatsink
- 35mm Motor cooling fan
- Ventilated chassis
- Higher chassis side guards
- Impact-absorbing bumpers
- Multi-surface dBoots FORTRESS MT tread pattern tires
- Tough, multi-spoke pattern wheels
- Super-tough shock package
- Shock tower protector
- Stealth monochrome electronics
- Spektrum 2-in-1 40A waterproof ESC and receiver
- Spektrum SLT2 2.4GHz transmitter
- Spektrum S661 waterproof metal gear digital servo
- Adjustable battery straps
- Driveshaft stone guard
- Ready to run - only battery and charger required
- Two-year limited warranty
Arrma Granite Mega 665 665 4X4 RTR Monster Truck Specfications:
- Approximate Assembly Time: No Assembly Required
- Battery: Sold Separately
- Body: Painted, decalled and trimmed
- Charger: Sold Separately
- Chassis: 4WD Mid Motor
- Completion Level: Ready-To-Run
- Connector Type: IC3
- Differential: Gear
- Drivetrain: 4WD
- Internal Gear Ratio: 2.85
- LiPo Compatibility: 2S
- Max Battery Dimensions: 6.5 x 2.01 x 1.89 in (165 x 51 x 48mm)
- Motor Type: Brushed
- Pinion: 15T
- Power System: MEGA
- Power Type: Electric
- Product Height: 8.03" (204 mm)
- Product Length: 18.5" (470 mm)
- Product Weight: 7.65 lb (3.47kg)
- Product Width: 13.38" (340 mm)
- Receiver: Included
- Scale: 1/10
- Servos: Included
- Shock Type: Oil-Filled, Coil-Over Springs
- Spur Gear: Included: 57
- Technology: SLT Protocol
- Tire Tread: dBoots Fortress MT
- Vehicle Size: Standard
- Vehicle Type: Monster Truck
- Water-Resistant: Yes
- Wheel Hex Size: 14mm
- Wheelbase: 11.18" (284 mm)
In The Box
- (1) GRANITE MEGA 665 4x4 1/10 Scale Monster Truck RTR
- (1) Spektrum SLT 2-in-1 40A LiPo Ready Waterproof ESC & Receiver with IC3 Connectors
- (1) MEGA 665 14T High Torque Brushed Motor with ARRMA Heatsink & Cooling Fan
- (1) Spektrum SLT2 2.4GHz Transmitter
- (1) Spektrum S661 Waterproof Metal Gear Digital Servo
- (4) AA Transmitter Batteries
- (1) Molded Hand Tools 2.0mm and 2.5mm
- (1) Instruction Manual
Arrma Granite Mega 665 Requires to Complete:
- (1) 2S Hardcase LiPo Battery (IC3 Connector)
- (1) Compatible Charger
- (1) LiPo Safe Charging Bag
Key Info:
- Brand: Arrma
- Part No: ARA4202V4
- Scale: 1:10
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Vehicle Type: Monster Truck
- Surface Type: Off Road
