DPR Navigator Trainer 1.5m - Kit

Trainers that have longevity and a life after training are not to be sniffed at. Whilst few would argue that the best machines are gentle, sedate and forgiving, aeroplanes that are also able to offer a basic aerobatic capability are considered even more desirable. Spanning 1500mm for a 3S powertrain, the Navigator ticks all the crucial boxes that beginners, and builders, need to consider, not least ease of construction, ease of transport and the aforementioned follow-on flying characteristics.

With beautifully selected wood, sublime CNC cutting, a slab-sided fuselage, parallel chord wing and flat tail surfaces the build couldn’t be simpler. Meanwhile, banded wings not only assist storage and transportation, they’re designed to ‘give’ a little when inevitable ‘arrivals’ occur during the learning process. Speaking of which, the Navigator’s classic trike undercarriage affords a high tailplane position and yet more damage resistance. Where flying is concerned, piloting the Navigator is a gentle affair that engenders a relaxed atmosphere, one that will see your ability and confidence grow exponentially.

Suitable for small-field flying, beginners of every kind and even old hands who want something relaxing yet mildly aerobatic to campaign on calm days, the DPR Navigator is perfect.

DPR Navigator Trainer / 3S Electric (Kit) 1.5m / 59in Key Features:

• Lightweight balsa & ply construction.
• Exceptional wood and cutting quality.
• Pre-profiled control surfaces.
• Comprehensive hardware pack.
• Docile flying characteristics.
• Quick, easy and satisfying to build.
• Damage-limiting banded wing.
• Full four-channel control.
• Symmetrical (aerobatic) wing section.
• Decals & window stickers included.
• Full-size plan.
• Step-by-step instruction manual.

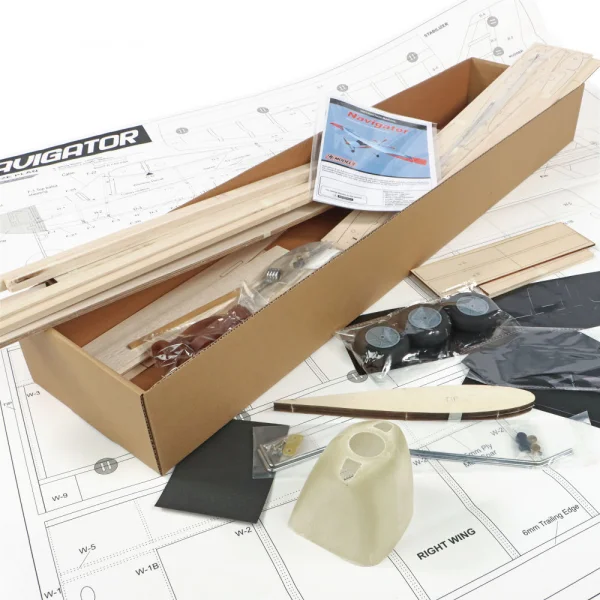

What's in the Box:

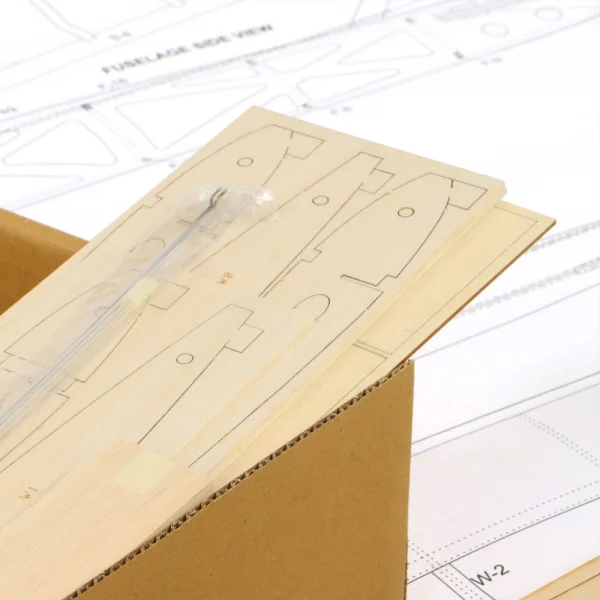

• 1x Quality Laser-cut balsa parts set.

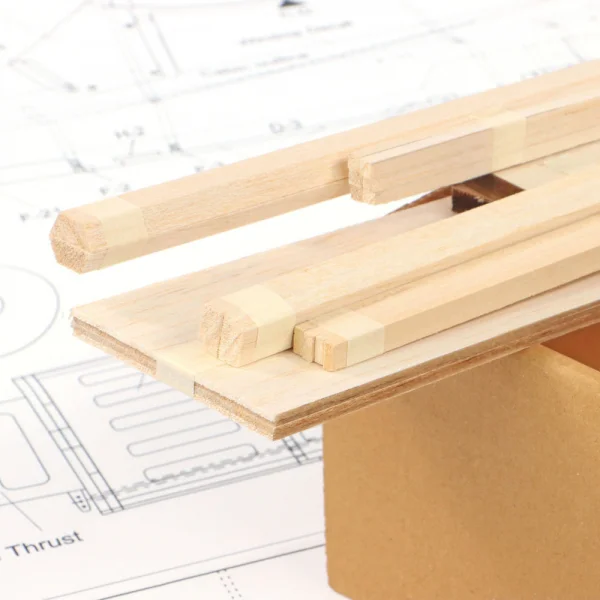

• 1x Strip wood bundle for spars and longerons.

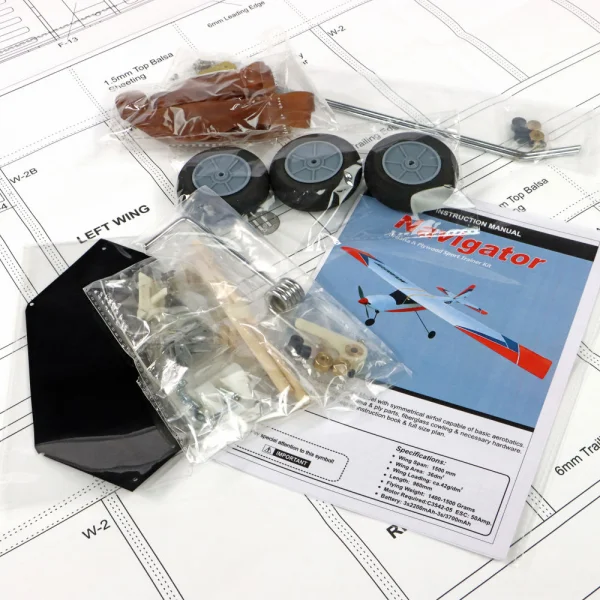

• 1x Hardware pack (horns, hinges, wheels etc.).
• 1x Tricycle undercarriage and wheel set.
• 1x Wing band pack.
• 1x Decal & window sticker sheets.
• 1x Sandpaper sheet.

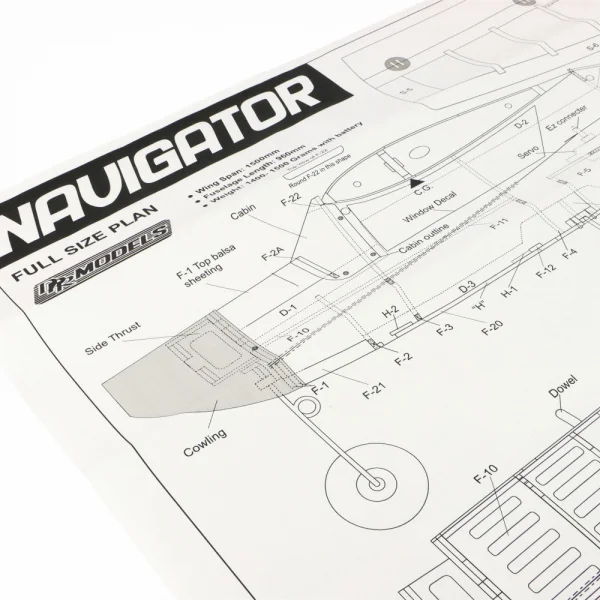

• 1x Full-size plan.
• 1x Comprehensive step-by-step build manual.

Needed to Complete:

• 1x 4-channel Tx / Rx combo.
• 2x Hitec HS-85BB servos.
• 2x Hitec HS-65HB servos (aileron).
• 1x 3542 1250KV brushless motor.
• 1x 50A ESC.
• 1x 10x6" EP propeller.
• 1x 1.5 inch spinner.
• 1x 3S 2200-3700mAh Li-Po.
• 1x Roll of Oracover heat-shrink film.

Manuals & Parts Explosions:

DPR Navigator Trainer / 3S Electric (Kit) 1.5m / 59in Tech Specs:

• Product Length: 960mm / 37.80in
• Product Wingspan: 1,500mm / 59.06in
• Product Wing Area: 36dm2 / 558in2

• Completion Level: ARTF
• Experience Level: Beginner
• Age Recommendation: 14+
• Recommended Usage Environment: Designated R/C model flying site
• Material: Array

• Brand: DPR
• Part No: DPRRC040
• Barcode: 5051121288698
• Power: Electric
• Assembly Level: Kit (Unassembled)
• Flying Style: Trainers
