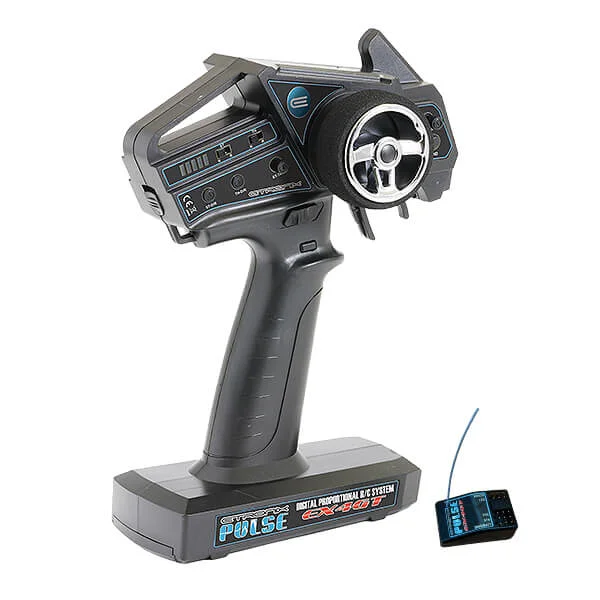

Etronix EX4GT Transmitter With Receiver

Brand: eTronix

Part No: ET1064

£31.49 ~~RRP £34.99~~

In Stock: Usually ships same day

Request Price Match Ask a Question Write a Review

The eTronix EX4GT is a 4-channel 2.4GHz surface radio system supplied as a transmitter and receiver combo (part ET1064). Using spread spectrum GFSK technology with secure FHSS operation, it provides dependable control for RC car and boat applications with a surface range up to 120 m. Two auxiliary switched channels—one two-stage and one three-stage—offer additional control options alongside the main steering and throttle.

Designed for straightforward setup, the EX4GT includes steering and throttle trims, end point adjustment, dual rates, servo reversing and a fail-safe function. The compact IP67-rated receiver adds extra peace of mind for damp running environments, while the lightweight transmitter runs on 4 x AA batteries (not included).

Features

2.4GHz spread spectrum GFSK, crystal free
4 channels: 2 proportional plus 3-stage and 2-stage switched auxiliaries
Easy-to-use control for basic models
Steering and throttle trim adjustment
Steering and throttle end point adjustment
Steering and throttle dual rates
Servo reversing
Fail-safe function
Surface range up to 120 m

Transmitter Specifications

Voltage range: 4.2–8.4 V
Operating frequency: 2.4GHz (FHSS)
Modulation: GFSK
Transmit power: <20 dBm
Batteries required: 4 x AA (not included)
Dimensions: 210 x 160 x 95 mm
Weight: 230 g (without batteries)

Receiver Specifications

Input voltage range: 4–6.5 V
Connector interface: Futaba, JR
Water resistant: IP67 rating
Dimensions: 33 x 22 x 13 mm
Weight: 5 g

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

ETRONIX EX4GT TRANSMITTER & RECEIVER COMBO

Etronix’s EX4GT 4-channel radio control system uses the latest in 2.4ghz radio technology to ensure that each transmitter’s frequency remains secure from external interference. The EX4GT benefits from 2 extra Aux switched channels, one is a 2 stage and the other a three stage switch.

Ideally suited to r/c car and boat applications up to 120m.

Features

2.4GHz Spread Spectrum GFSK Crystal Free
6-Channels (2 x Proportional, 1 x Three Stage Switch, 1 x Two Stage Switch)
Easy to use Control for Basic Models
GFSK Modulation
Steering and Throttle Trim Adjustment
Steering and Throttle End Point Adjustment
Steering and Throttle End Dual Rates
Servo Reversing
Fail Safe Function
Surface Range 120M

Transmitter Specifications

Voltage Range: 4.2V – 8.4V
Operating Frequency: 2.4GHz (FHSS)
Modulation: GFSK
Transmit Power: <20dBm
Batteries Required: 4 x AA (Not included)
Dimensions: 210 x 160 x 95mm
Weight: 230g (Without batteries)

Receiver Specifications

Input Voltage Range: 4V – 6.5V
Connector Interface: Futaba, JR
Dimensions: 33 x 22 x 13mm
Water Resistant: IP67 Rating.
Weight: 5g

Receiver Update

Please note that the receiver included with this system has recently been updated. Its AUX1 and AUX2 channels remain the same and are easily accessible by removing the receiver channel blanking plug (pictured). Two additional channels are now also available, labelled ‘Winch’ and ‘LED’.

Winch: This channel can be used to directly control an aftermarket winch system. When a 2-wire (positive/negative) winch system is connected to the positive and negative terminals of this channel, forward and reverse rotation of the motor can be controlled via the transmitter’s three-position AUX2 switch. The maximum output of this channel is 3A.
LED: This channel can be used to directly power an aftermarket LED lighting system. The channel features an integrated 200-ohm resistor to prevent LED burnout.

Key Info:

Brand: eTronix
Part No: ET1064
Barcode: 5056135750810
Receivers Included: 1
Frequency: 2.4Ghz
Channels: 4 Channel
Fitment: Standard Part
Format: Steerwheel

Additional Categories:

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Will this work with a Carisma 1:10 M40S Subaru Brz Gt300 Brushless Artr. My Carisma radio system does not have a great range and ask with this would be a direct replacement .

David / 30th July 2024

Yes that would work fine but this would be much better with double the range and 2 receivers and a gyro RLKT041000

Steve @ Wheelspin Models
