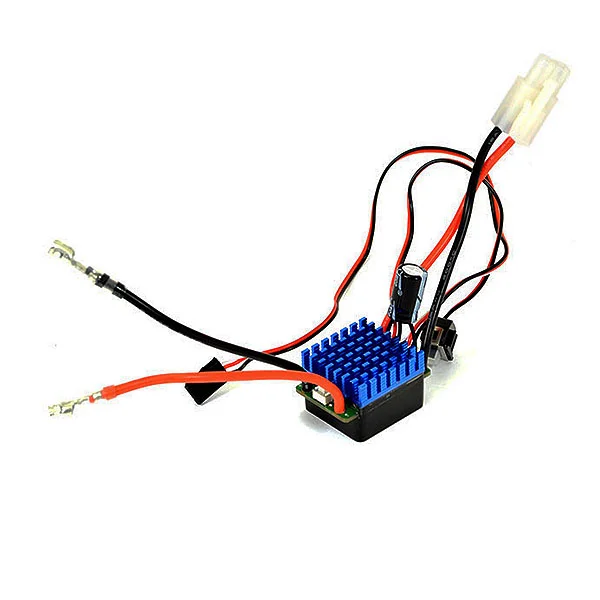

FTX Vantage/Carnage Brushed Waterproof 20A ESC
Brand: FTX
Part No: FTX6557W
In Stock: Usually ships same day
The FTX Vantage/Carnage Brushed Waterproof 20A ESC (FTX6557W) delivers simple, reliable control with a compact footprint. Designed for ease of use, it automatically searches for neutral at power-up and confirms setup with clear “Do”, “Re”, “Me” tones. Two programmable running modes and built-in protections make it a dependable choice for everyday RC driving.
Key Features
- Waterproof protection for confident running in wet conditions
- Automatic neutral setup with confirmation tones
- Two programmable running modes
- Low-voltage protection for LiPo packs
- Thermal protection activates above 90°C
- BEC output: 5.6V, 2A
- Small footprint for easy mounting
Specifications
- Battery compatibility: 5–6 cell NiMH; 7.2–7.4V 2S LiPo
- LiPo safety cut-off: less than 6V
- BEC output: 5.6V / 2A
- Dimensions: 30 x 28 x 22 mm
- Weight: 38 g
Suggested Compatibility
- FTX Vantage
- FTX Carnage
- FTX Outlaw
- FTX Banzai
Secured by Stripe
An affordable brushed ESC that is used in the FTX Vantage/Carnage/Outlaw and Banzai.
This ESC is setup in a simple way for ease of operation. When the ESC is switched on it automatically searches for the neutral point. When the automatic setup is finished the motor sends out “Do” “Re” “Me” indicating the neutral point is set and it is ready to be operated.
The ESC has 2 programmable running modes and a Low voltage protection mode that can be enabled for LiPo batteries.
FTX Vantage/Carnage/Outlaw/Banzai Brushed WP ESC Features:
- Waterproof protection
- 5-6 cell NiMH compatibility
- 7.2-7.4V 2S Li-Po compatibility
- Li-Po Safety cut off when less than 6V
- Thermal Protection: When more than 90°C
- BEC Output: 5.6V 2A
- Small foot print for easy mounting
- Dimensions: 30mm x 28mm x 22mm
- Weight: 38g
Key Info:
- Brand: FTX
- Part No: FTX6557W
- Barcode: 5055323982354
Additional Categories:
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
This is a simple plug in and play system , there are no settings to change.
Yes these are listed for Kanyon
This is an ESC, not a receiver - so no "binding" as such but yes it will work with any receiver
Probably a bit low on output for a 15T
ET0102 would be a better choice
It would work on pretty much any vehicle... It's a 20A brushed ESC, so providing you are using a basic motor it should be fine.
