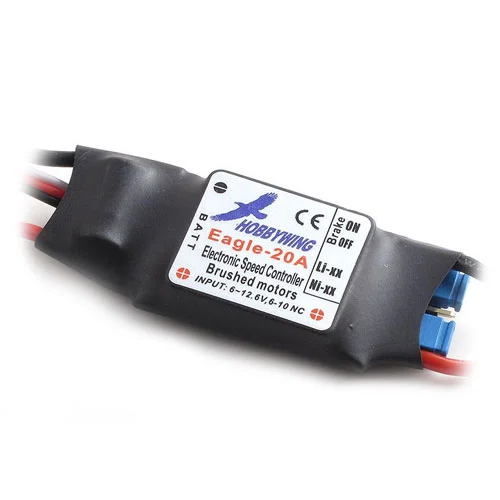

Hobbywing Eagle 20A ESC

The Hobbywing Eagle 20A ESC (HW80050000) is a brushed motor speed controller featuring a built-in 5V/1A linear BEC. It supports 2–3 cell lithium packs and 4–10 cell NiCd/NiMh batteries, delivering 20A continuous current with up to 25A burst for 10 seconds.

Built-in protection functions enhance reliability and longevity, including safety arming, low-voltage cut-off, over-heat and throttle signal-loss protection.

Key Features

• Safety Arming Feature
• Low voltage cut-off protection to prolong the battery life
• Over-heat protection to prolong the ESC life
• Throttle signal loss protection for safe flight
• Compatible with lithium battery and nickel battery

Specifications

• Motor: Brushed
• Output: Continuous 20A, Burst 25A up to 10 seconds
• Input Voltage: 2–3 cells lithium battery or 4–10 cells NiCd/NiMh battery
• BEC: 1A/5V (Linear mode)
• PWM Frequency: 2 kHz
• Size: 45mm (L) * 21mm (W) * 8mm (H)
• Weight: 17g
