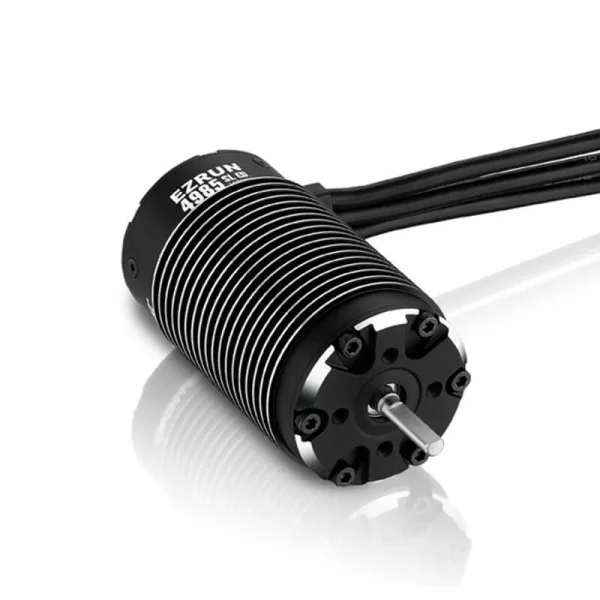

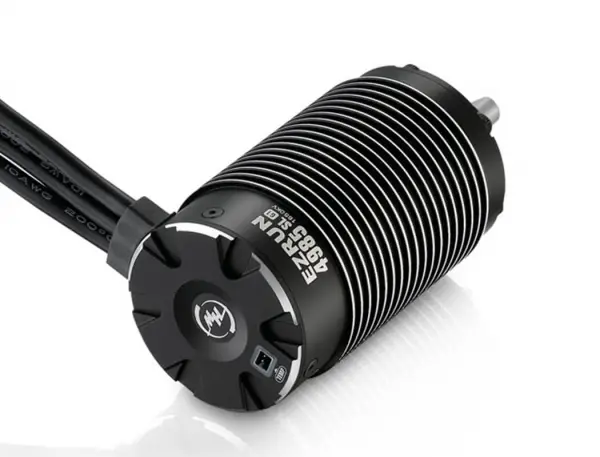

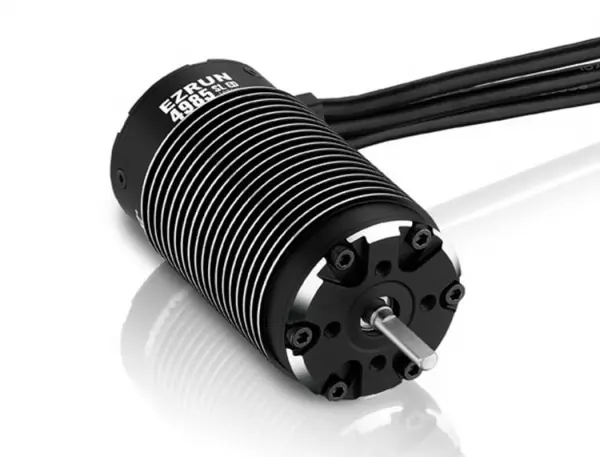

Hobbywing Ezrun 1:6 SL 4985-1650Kv Motor (Black)
Brand: Hobbywing
Part No: HW30402950
Shadow Stock: Usually ships next day
The Hobbywing Ezrun 1:6 SL 4985-1650Kv Motor (Black), part number HW30402950, is a powerful 4‑pole, sensorless brushless motor designed for big‑scale RC performance. It delivers fast acceleration response and a rock‑solid, stable output for wheelies, high‑speed straightaways and tackling rough terrain, while supporting 3–6S LiPo setups.
Thermal Protection
When paired with the Hobbywing EZRUN MAX5 ESC, the built‑in motor temperature sensor and dedicated port help prevent overheating and prolong service life.
High Efficiency
Hobbywing’s temperature control technology helps reduce heat build‑up, allowing the motor to run more efficiently. The output performance is rated up to 90% efficiency.
Great Construction
- CNC‑machined, hard‑anodised aluminium case
- Ultra‑thin silicon steel laminations
- Heat‑resistant, oxygen‑free double‑insulated windings
- High‑quality Japanese bearings
- Strong rotor structure
- High‑quality polished alloy steel output shaft
Specifications
- Motor type: Brushless (BL), Sensorless (SL), 4‑pole
- KV rating: 1650Kv
- LiPo input: 3–6S
- No‑load current: 5.4A
- Dimensions (can): 49mm diameter x 86.5mm length
- Shaft diameter: 5.0mm
- Weight: 587g
- Front bearing: D6×D19×t6 (626ZZ)
- Rear bearing: D6×D19×t6
- Timing: 0°
- Applications: 1/6th & 1/7th RC vehicles
Suggested Compatibility
- Suggested compatibility: Hobbywing EZRUN MAX5 ESC (uses the motor’s temperature sensor port)
Secured by Stripe
HOBBYWING EZRUN 1/6TH SL 4985-1650KV MOTOR (BLACK)

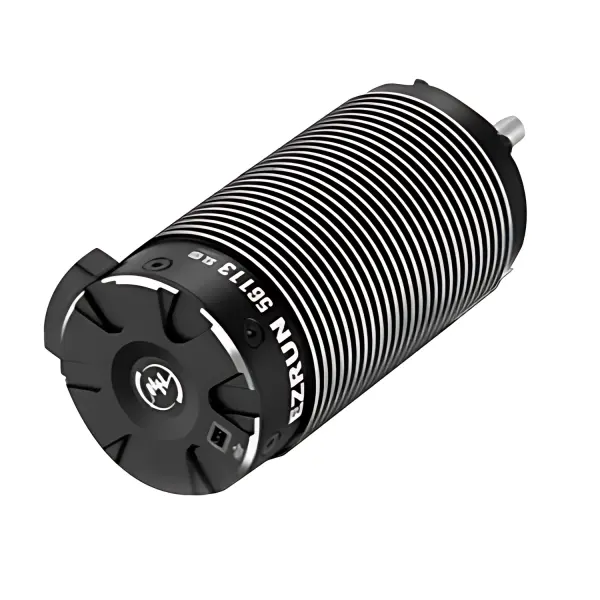

With a fast exceleration response and a rocck-solid, stable output, EZRUN 56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and pwering throuigh the roughiest terrain.
Thermal Protection

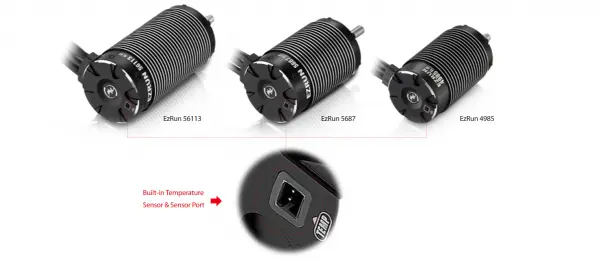

When pairing the EZRUN 56113 motor with the Hobbywing upgraded MAX5 ESC, the built-in temperature sensor & port will effectively prevent the motor from being damaged due to over heating and prolong its service life.
High Efficency
Hobbywing's temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficent the motor will run and perform. The output performance of this motor has an efficency rate of upto 90% (an industry leading level).
Compatibale with EZRUN MAX5 ESC

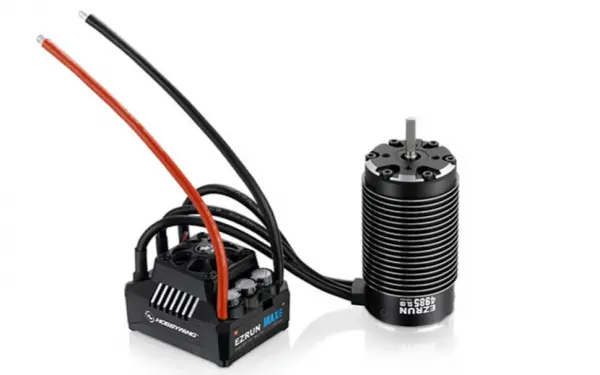

When pairing the EZRUN 56113 motor with the Hobbywing EZRUN MAX5 ESC, the excellent bmatch between ESC and motor will give you large torque plus a very smooth and linear power band.
Great Construction
The use of CNC-machined hard anodised al;uminium case, ultra-thin silicon steel laminations, heat resistant oxygen-free double insulated wings, high quality japanese bearings, rotor with a strong structure and output shaft made from high quality polished alloy steel garanteesoutstanding performance and super durabnility.
Specifications
Type
Scale: 1/5th
Brushed / Brushless: BL
Sensored / Sensorless: SL
Pole Count: 4
Relevant Parameters
KV Rating: 1650
Lipo Cells: 3-6S
NoLoad Current (A): 5.4
Size & Weight
O.D.(mm): 49 (1.92in)
Length (mm): 86.5(3.41in)
Shaft Diameter (mm): 5.0(0.20in)
Weight (g): 587 (20oz).71
Front Bearing: D6*D19*t6(626ZZ)
Rear Bearing: D6*D19*t6
Other Parameters
Timing: 0
Applications: 1/6th & 1/7th RCVehicles
Key Info:
- Brand: Hobbywing
- Part No: HW30402950
- Barcode: 6938994405461
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes this is already soldereded.
I'd say this will be too much for the stock ESC.
Best to pair it with the Hobbywing MAX6 in the combo HW38010801
No looks like hobbywing quote 6S max on this
Yes, but these are a bigger motor, designed for use with a MAX5
ASK A QUESTION
