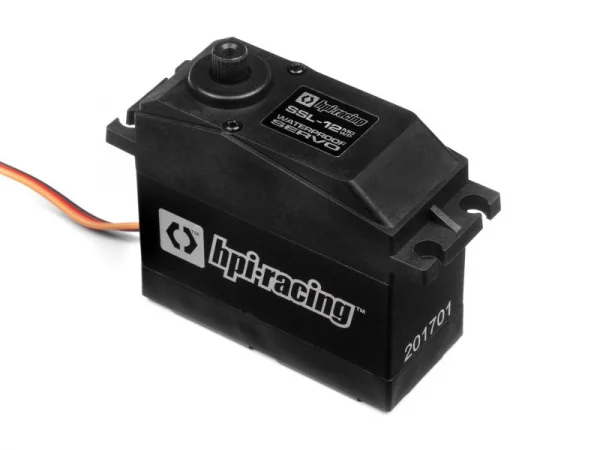

HPI SSL-12MGWP 35kg Waterproof Servo (7.4V)

The HPI SSL-12MGWP Waterproof Hi Voltage Servo – 35kg (HPI-120020) is a digital, large-scale, metal-geared servo built for demanding conditions. Designed for bashers and racers, it offers strong, reliable performance in wet, muddy, or dusty environments where durability matters.

Key Features

• Waterproof digital servo for tough conditions
• Metal-geared construction for durability
• High-torque output up to 35kg-cm at 7.4V
• High-voltage compatible: 6–7.4V
• Large-scale form factor

Specifications

• Operating voltage: 6–7.4V
• 6V: Speed 0.18 sec/60°, Torque 28kg-cm
• 7.4V: Speed 0.15 sec/60°, Torque 35kg-cm
• Servo spline: 25T
• Dimensions (main case): 65.8 × 59.1 × 30.0mm (excluding mounting tabs, servo spline, and cable outlet)
• Mounting tab hole centres: 75.0 × 18mm
• Weight: 200g (excluding servo horn)

Suggested Compatibility

• HPI Baja buggy or truck
• Large-scale RC models requiring a large-scale servo

Note: Waterproof guarantee is voided if the servo case has been opened.
