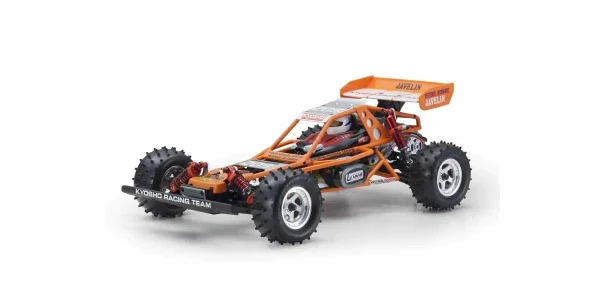

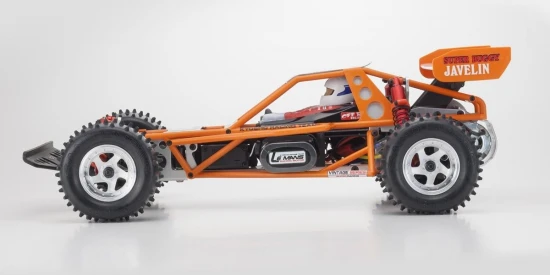

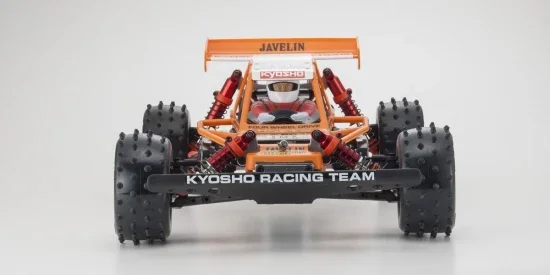

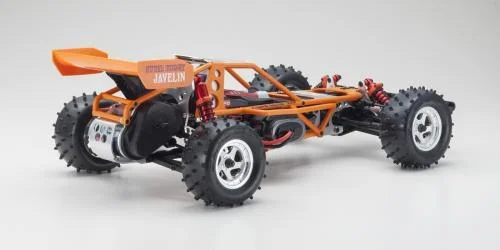

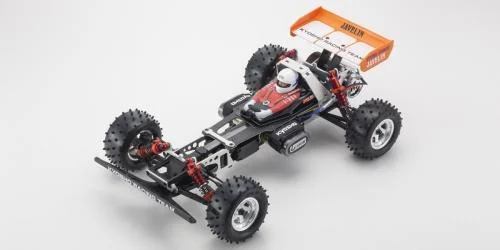

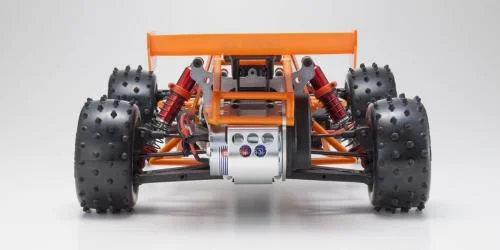

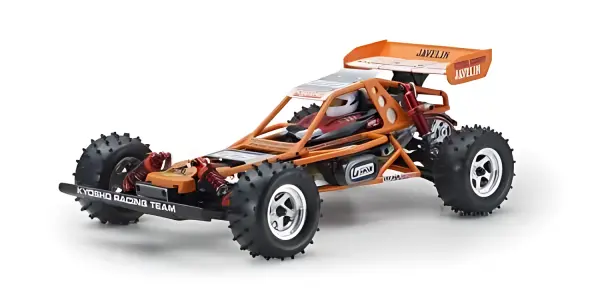

Kyosho Javelin Legendary Series 2017

Brand: Kyosho

Part No: K.30618

£349.00 ~~RRP £381.59~~

Shadow Stock: Usually ships within 4-5 days

Collect Instore

Sport Package

Tamiya Kit Combo With Motor + ESC- Sport £460.87

Add a motor and speed controller, radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939

1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060

1 x EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
SCH-EP3000S

1 x Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
HW30120201

1 x CORE 15T Silver Can Brushed 540 Motor
SCH-CR710

1 x Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
HD-1812MG

1 x Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
ORI30198DNS

Saves £53.06 over RRP

Race Package

Tamiya Kit Combo With Motor + ESC - Race £494.25

Add a motor and speed controller, radio system, steering servo, high capacity batteries and fast charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939

1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060

1 x Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
VZ0025

1 x eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
ET0208

1 x Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
SAV-SW0231MG+

1 x Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
HW30120201

1 x CORE 15T Silver Can Brushed 540 Motor
SCH-CR710

Saves £51.77 over RRP

Request Price Match Ask a Question Write a Review Show Spares and Option Parts

The Kyosho Javelin Legendary Series 2017 (K.30618) revives the iconic 1986 off-road racer with faithful styling and thoroughly modern running gear. A resin pipe-frame body echoes the original’s distinctive look, while a narrow aluminium backbone chassis and double wishbone suspension deliver precise geometry and wide steering angle for today’s tracks.

Under the skin, the sealed 4WD chain-drive system provides dependable traction and durability. A counter gear with slipper function and a strengthened metal final gear case handle modern power, while precision 48-pitch gears and an optimised mix of nylon and sintered alloy reduce loss and noise. Large-diameter aluminium oil shocks and long-stroke suspension boost control across rough terrain, capturing the classic Javelin feel with contemporary performance.

Key Features

Vintage Series recreation with resin pipe-frame body capturing the original Javelin’s style.
Narrow aluminium backbone chassis and double wishbone suspension for responsive handling.
Sealed 4WD chain-drive system; drive can also be changed to a 4WD belt system as per the original optional configuration.
Updated heavy-duty aluminium inner roll bar for increased durability.
Rear wing now chassis-mounted with insert nuts for secure, high-downforce placement.
Aluminium plate on the roll cage nose secured with screws for added rigidity.
One-piece wheels replicate the period look while reducing weight.
Full ball bearings: 18 in standard spec (16 with chain-drive configuration).
Hex hardware for easy assembly and reliable fastening.
Includes separate driver helmet and clear polycarbonate body.
FRP radio plate with suggested compatibility for ESCs of any brand.
Hook-and-loop battery stay with suggested compatibility for various battery sizes.
New wing stay with suggested compatibility for the Kyosho Optima (requires cutting of the polycarbonate body).
Equipped with metallic counter gear; precision 48-pitch gear modules for efficiency.

Specifications

Length: 403 mm
Width: 240 mm
Height: 130 mm
Wheelbase: 260 mm
Front Tread: 204 mm
Rear Tread: 204 mm
Weight: approx. 1,700 g
Tyres (F & R): φ86 × 40 mm
Motor: 540 class (sold separately)
Gear Ratio: 9.24:1

What’s In The Box

Partially assembled kit chassis (gearbox and oil shocks pre-assembled)
Body frame
Decals
L-shape hexagonal wrench
Cross wrench
Shock wrench
Shock oil
Grease

Required To Complete

2-channel R/C system (1 x servo, 1 x ESC)
540 motor (20T–27T recommended). Kyosho No.82140 EP Starter Pack (KT-231P, KR-331, VORTEX WP45A, G2X Motor)
Battery for motor (7.2V NiMH or Li-Po)
Charger for motor battery (stable 12V power supply required if using DC)
Paint for body
Batteries for transmitter
Tools (may be required: 1.5 / 2.0 / 3.0 hex drivers, needle-nose pliers, wire cutters, craft knife, Phillips screwdriver for servo horn)

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

The legend returns… Javelin. A machine that redefines what it means to be the best. The Javelin’s design concept was to create “A machine that redefines what it means to be the best”. After more than 30 years since the original release in 1986, this electric off-road competition model has been recreated as the sixth model in the Kyosho Vintage Series. Incorporating a resin pipe-frame body resembling the innovative aluminum pipe frame body of the 1/8 scale Land Jump engine powered buggy, the new Javelin features the proven performance of double wishbone suspension with a narrow backbone-style skid frame that delivers ideal geometry for wide-angled steering. This combines with the Javelin’s superior sealed compartment 4WD chain-drive system to produce excellent performance and durability. At the heart of the external features that faithfully represent the image of the Javelin of 30 years ago, this Vintage Series version is packed with modern racing performance potential and is compatible with modern power sources. At the heart of the drive system is a counter gear equipped with slipper function and a final gear case made from metal to strengthen its load bearing capacity. The adoption of precision 48-pitch gear modules reduces power loss and the optimal combination of nylon and sintered alloy delivers both improved drive efficiency and reduced noise. In addition to chain drive, the drive system can also be changed to a belt system, which was optional in the original model. Also, the large diameter aluminum shocks, recreated in the original design, combine with long stroke suspension to deliver increased performance potential. Rediscover the joy of off-road buggy racing with the latest in racing technology and the nostalgic style of the ‘Javelin’.

Each part has been upgraded to correspond with modern power sources while retaining Javelin’s unique original design.
New updated heavy duty aluminum inner roll bar for increased durability.
The new wing stay is compatible with the Optima(requires some cutting of the PC body).
Rear wing has been changed to chassis mounting to generate high downforce. The pedestal parts have been included with insert nuts to keep the wing securely fixed. Incorporation of insert nuts into the pedestals delivers even more secure mounting.
Just like the original Javelin, white, pastel green and fluorescent yellow colored roll cage bodies and wings are available. Red and black colors are on plan.
The aluminum plate on the front area of the roll cage body is now securely fixed with screws adding rigidity to the body.
Simple yet high rigidity aluminum backbone type chassis.
Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option.
FRP radio plate is suitable for ESC’s of any brand.
One-piece wheels replicate the original stylish design while delivering a reduction in weight.
Full ball bearing specifications use 18 ball bearings. (chain drive system uses 16).
hex heads ensure easy use and fastening security.
Includes separate helmet and polycarbonate body.
Hook and loop fastener battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal.
Equipped with metallic counter gear.

Specifications:

Length 403mm
Width 240mm
Height 130mm
Wheelbase 260mm
Front Tread 204mm
Rear Tread 204mm
Weight 1,700g (approx.)
Tires (F & R) φ86×40mm
Motor 540 Class size（sold separately）
Gear Ratio 9.24：1

What's in the Box:

Assembled some parts kit chassis (gear box, oil shock are pre assembled)
Body frame
Decals
L-shape hexagonal wrench
Cross wrench
Shock wrench
Shock oil
Grease

Required to Complete:

2 Channel R/C System (1 x servo, 1 x ESC)
540 Motor (20T – 27T recommended) No.82140 EP Starter Pack (KT-231P, KR-331, VORTEX WP45A, G2X Motor)
Battery for motor (7.2V NiMH or Li-Po battery)
Charger for motor battery (stable 12V power supply required if using DC)
Paint for body
Batteries for transmitter
Tools (maybe required: 1.5 / 2.0 / 3.0 hexagonal wrench driver, needle nose pliers, wire cutters, box cutter, Philips screwdriver for replacing servo horn)

Key Info:

Brand: Kyosho
Part No: K.30618
Barcode: 4548565329021
Scale: 1:10
Vehicle Type: Buggy
Power Source: Electric - No Motor
Surface Type: Off Road
Build Level: Unassembled (Kit)
