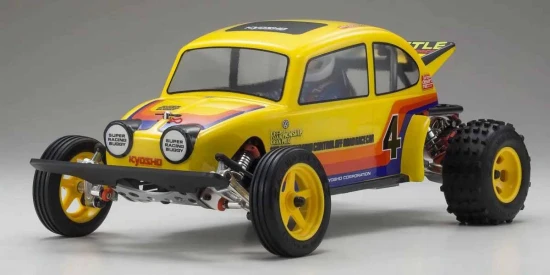

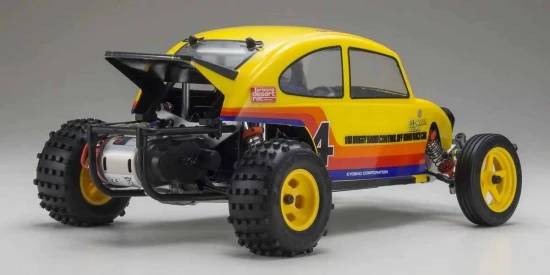

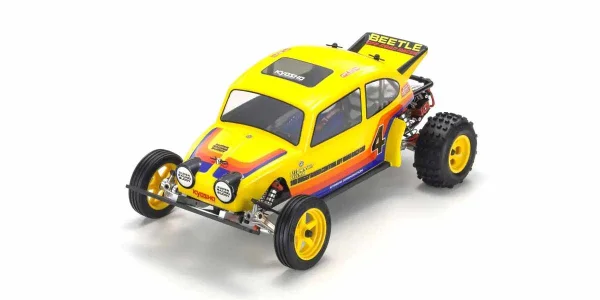

Kyosho Beetle 2WD 1:10 Kit (Legendary Series) K.30614D

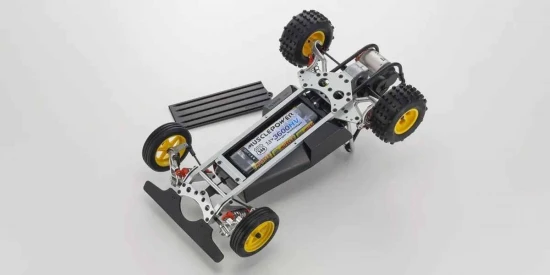

The Kyosho Legendary Series Beetle 2WD 1:10 Kit (K.30614D) revives an icon of 1980s electric buggy racing, pairing authentic Beetle style with modern reliability. Built on the advanced Scorpion 2014 ladder-frame 2WD chassis, it blends classic handling with upgraded materials and components for confident off-road performance and an enjoyable build.

With extensive aluminium hardware, full ball bearings and a tunable drivetrain including a slipper clutch, the Beetle is engineered for durability and smooth control. Key assemblies come pre-built to streamline the process, and the pre-cut clear polycarbonate body with decals makes it easy to finish to your taste.

Key Features

• Revival of the off-road Beetle, updated throughout in the 2014 specification.
• Pre-assembled gearbox and oil shocks to simplify the build.
• 6061-T6 forged aluminium suspension arms for strength and precision.
• Two-piece die-cast aluminium gearbox with built-in differential gears.
• Slipper clutch protects the drivetrain and allows traction tuning.
• Oil shocks with aluminium cylinders and stainless shafts for smooth damping.
• Countersunk chassis surfaces allow screws to sit flush.
• Lightweight design achieved by reducing tapping screws and nuts.
• Near full use of hex screws for secure, consistent assembly.
• One-piece rear wheels for reduced rotating mass.
• Inner sponges in the rear tyres with newly developed block-pattern, high-grip compound tyres.
• High-efficiency full ball bearing specification (14 included).
• Radio box accommodates a variety of modern battery sizes and shapes.
• Suggested compatibility: Ultima RB ball differential can be used as an optional upgrade.

Specifications

• Length: 398 mm
• Width: 236 mm
• Height: 165 mm
• Wheelbase: 263 mm
• Tread (F/R): 198 mm / 195 mm
• Tyres (F/R): 75 × 20 mm / 85 × 41 mm
• Gear ratio: High 6.9:1 / Low 8.3:1 (two combinations included)
• Weight: Approx. 1,040 g (without R/C system and battery)
• Motor: 540-class (sold separately)

What's In The Box

• Pre-assembled kit (gearbox and oil shocks pre-assembled)

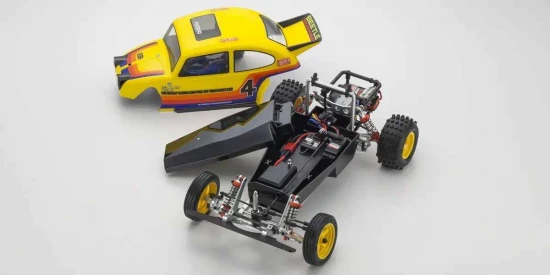

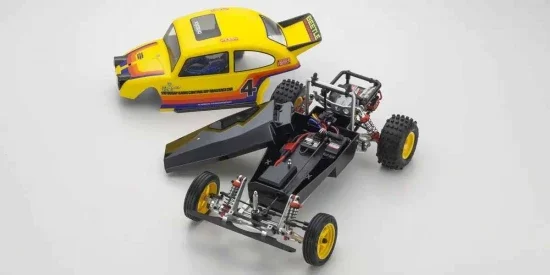

• Pre-cut clear polycarbonate body
• Decals
• L-shape hex wrench
• Cross wrench
• Shock wrench
• Shock oil
• Grease
• Screw locking agent

Required To Complete

• 2-channel, 1-servo R/C system for cars
• 540-class motor (30–27 turns recommended)
• ESC compatible with the chosen motor
• Battery pack for the chassis
• Battery charger
• Paint for the polycarbonate body
• Batteries for the transmitter
• Tools (1.5, 2, 2.5 mm hex wrench drivers)
