Kyosho Optima Mid Legendary Series 2022 Kit (K.30622)
Brand: Kyosho
Part No: K.30622
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Kyosho Optima Mid Legendary Series 2022
Description

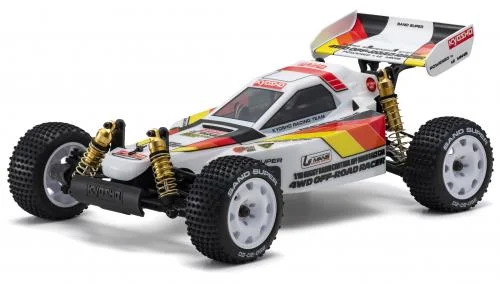

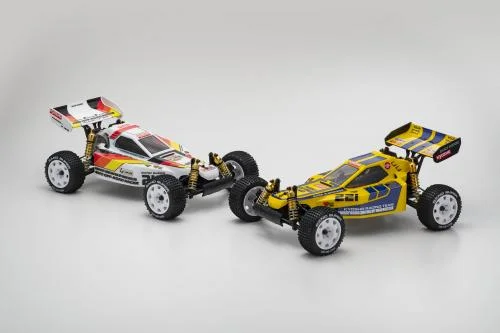

The Kyosho Optima Mid Legendary Series 2022 (K.30622) revives an icon of 1980s electric off-road racing. Faithful to the original’s racy silhouette and midship layout yet updated for modern power systems, this vintage-series kit blends period-correct style with contemporary drivability and efficiency.

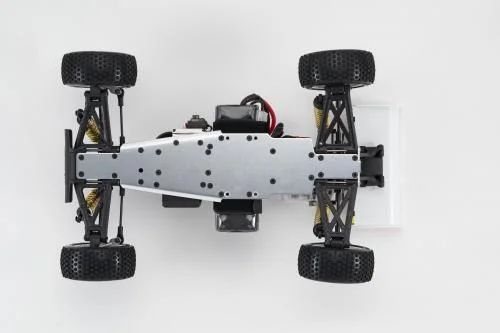

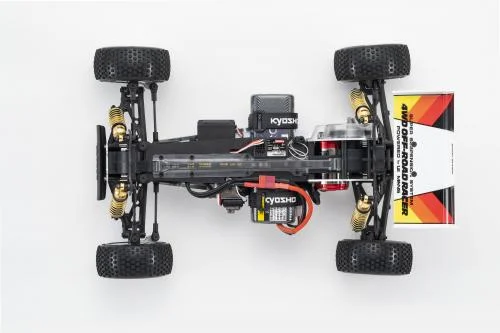

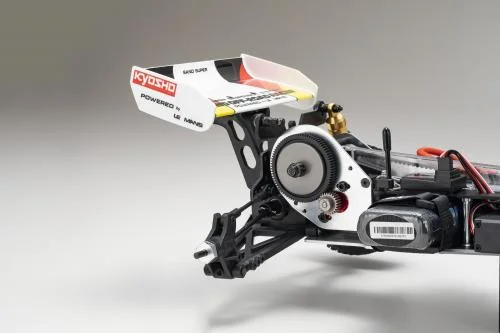

A rigid 6016T6 aluminium main chassis underpins a belt-driven 4WD drivetrain for smooth, efficient power delivery and stability on low-grip surfaces. Modernised running gear includes 48-pitch gearing with an 82T spur for precise ratio tuning, plus an adjustable belt tensioner to minimise loss and keep the drive silky. Equipment derived from the Turbo Optima Mid—such as FRP front and rear shock stays and a countersunk main chassis—further enhances performance and durability. The reinforced slipper clutch supports powerful brushless motors, and the battery holder accepts various pack types with an included KYOSHO-branded hook-and-loop strap.
New wheels echo the classic Optima Mid design and are paired with Turbo Optima tyres for confident grip. A reinforced nylon rear wing (shared with the Javelin) offers three mounting angles for setup flexibility. Even the blister packaging pays homage to the era, rounding out an authentic yet highly capable build.
Key Features
- Recreation of the renowned 4WD racing buggy, updated for modern R/C electronics and power systems
- Belt-type 4WD for excellent efficiency and stability on low-grip tracks
- 6016T6 aluminium chassis for high rigidity and precise handling
- 48-pitch pinion and 82T spur gear; optional 78T/80T spur gears have suggested compatibility
- Reinforced, adjustable slipper clutch suitable for brushless power
- Adjustable belt tensioner for smooth, low-loss drivetrain operation
- FRP front and rear shock stays and countersunk chassis
- Classic-style wheels with Turbo Optima tyres for strong grip
- Reinforced nylon rear wing with three mounting angles; suggested compatibility with Javelin wing
- Vintage-style blister packaging
Specifications
- Length: 375 mm
- Width: 244 mm
- Height: 142 mm
- Wheelbase: 255 mm
- Tread (F/R): 208 mm
- Weight: approx. 1,600 g (with 7.2V 4000 LiPo)
- Tyres (F/R): φ82 × 36 mm
- Motor: 540 class size (sold separately)
- Gear ratio: 8.28:1
Kit Contents
- Kit chassis
- Tyres
- Wheels (white)
- Clear body
- Wing (white)
- Mask sheet
- Decals
- Hexagon wrench
- Cross wrench
- Shock wrench
- Grease
- Shock oil
Required To Complete
- 2-channel R/C system
- Servo
- 540 motor
- ESC
- 210 mm sensor cable
- Battery for chassis (7.4V Ni-MH battery or 7.4V Li-Po battery)
- Charger for chassis battery
- Batteries for transmitter
Secured by Stripe
Kyosho Optima Mid Legendary Series 2022 Manuals & Guides
Specifications
- The 10th model in the Kyosho vintage series. The popular 4WD buggy that made a brilliant world championship debut has been updated in modern style.
- Recreation of the model that dominated the electric racing buggy scene in the 1980’s. Updated to match modern R/C electronics and power systems.
- Belt-type 4WD system delivers excellent drive efficiency and stability, even on roads with low grip. Demonstrates superior driving performance on modern circuits.
- 48-pitch pinion and 82T spur gear, corresponds with the existing Ultima RB7. Optional settings for 78T / 80T spur gears can also be used.
- Equipped with reinforced slipper clutch to support powerful brushless motors. Settings can be adjusted by exchanging with the Ultima RB slipper sheet.
- Battery holder is compatible with various battery types. Includes hook-and-loop fastener with KYOSHO logo.
- New wheels recreate the original Optima Mid design and include the same tires as the Turbo Optima for excellent grip.
- Reinforced nylon rear wing shared with the Javelin, balances flexibility and strength. Three mounting angles provide setting options.
- Blister packaging replicates the original packaging style to recreate the same satisfying experience.
- Wide range of optional parts are available for tuning and upgrades. More than just a recreation of the 1980’s original, this model can be enjoyed like any other high-performance modern equivalent.
- Length 375mm
- Width 244mm
- Height 142mm
- Wheelbase 255mm
- Tread (F/R) 208mm
- Weight approx1,600g(with 7.2V4000 LiPo)
- Tires (F/R) φ82×36mm
- Motor 540 class size (sold separately)
- Gear ratio 8.28：1
- Kit chassis
- Tire
- Wheel (white)
- Clear body
- Wing (white)
- Mask sheet
- Decals
- hexagon wrench
- Cross wrench
- Shock wrench
- Grease
- Shock oil
- 2 channel R/C system
- Servo
- 540Motor
- ESC
- 210mm Sensor cable
- Battery for chassis（7.4V Ni-MH battery or 7.4V Li-Po battery）
- Charger for battery for chassis
- Batteries for transmitter
Key Info:
- Brand: Kyosho
- Part No: K.30622
- Barcode: 4548565415434
- Scale: 1:10
- Vehicle Type: Buggy
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
