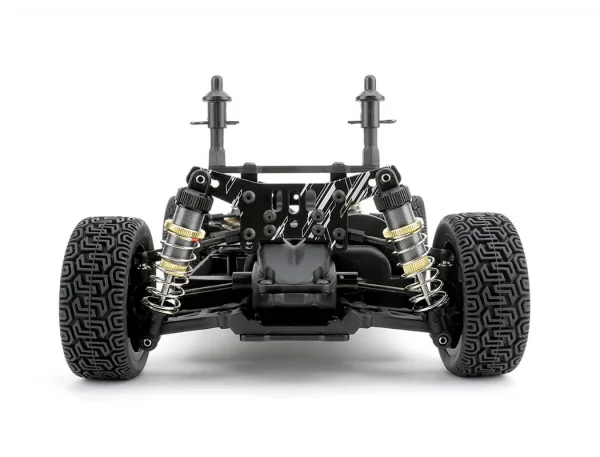

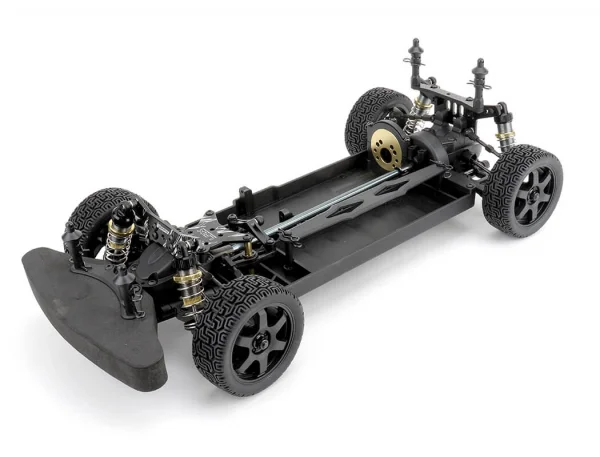

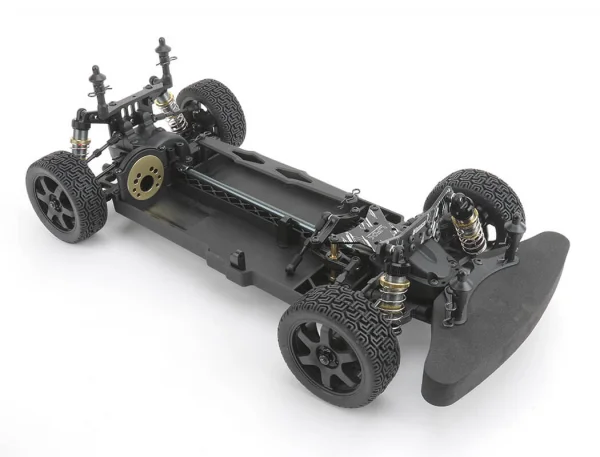

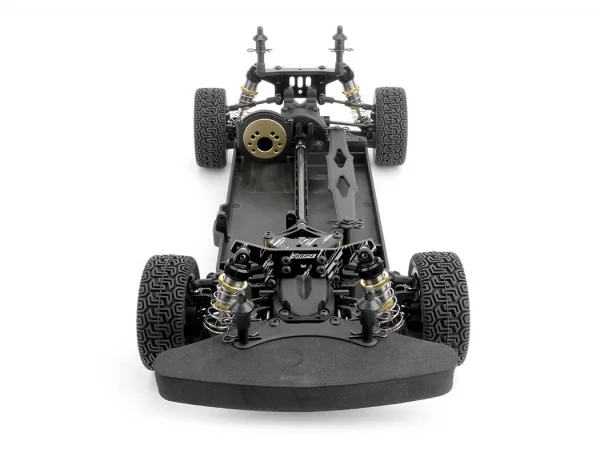

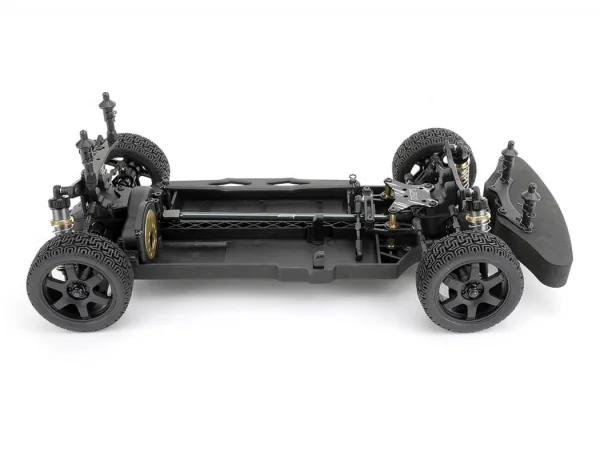

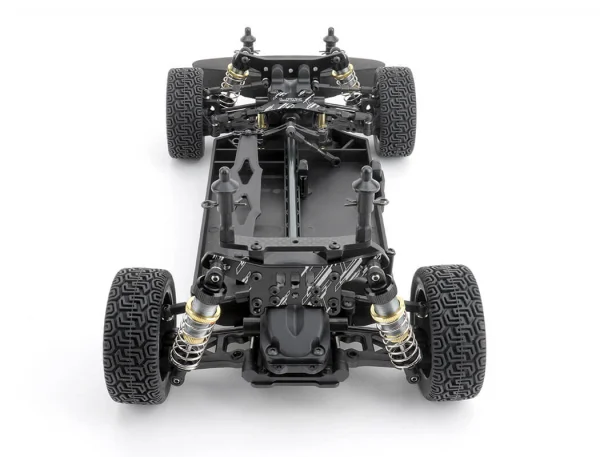

The Louise RC LRX Rally Kit, part number LNHA105, is a 1/10 kit for a shaft-driven 4WD radio-controlled rally car. It combines metal drivetrain components with aluminium and carbon fibre parts for a rally chassis configuration.
Features
The kit uses full bearings throughout the chassis, a CVD drive shaft and a metal gear differential. The drivetrain includes an aluminium centre drive shaft, aluminium motor mount and aluminium spur gear hub. Rally aluminium shocks provide the suspension units, while the aluminium shock tower and front upper steering deck support the front end.
A carbon fibre rear body post plate is included alongside a chassis cover and full turnbuckles. These components form the main structural, drivetrain and suspension elements of the LRX rally kit, with the shaft-drive layout sending power to all four wheels.
Specifications
- Scale: 1/10
- Drivetrain: Shaft-drive 4WD

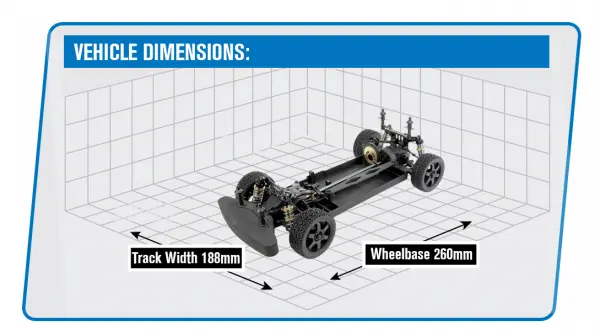

- Track width: 188 mm
- Wheelbase: 257–260 mm
- Final gear ratio: 2.47 (42/17T)
- Gear ratio: 6.59
- Tyre diameter: 70 mm
Secured by Stripe
Louise RC LRX Rally Kit Manuals & Guides
Manuals & Guides
Specifications
- Full Bearing.
- CVD Drive Shaft.
- Aluminium Shock Tower ,Front Upper Steering Deck.
- Carbon Fibre Rear Body Post Plate.
- Aluminium Motor Mount.
- Aluminium Centre Drive Shaft.
- Aluminium Spur Gear Hub.
- Rally Aluminium Shocks.
- Metal Gear Diff.
- Full Turnbuckle.
- Chassis Cover.
Drivetrain: Shaft Drive 4WD
Track Width: 188mm
Wheelbase: 257 - 260mm
Final Gear Ratio: 2.47(42/17T)
Gear Ratio: 6.59
Tyre Diameter: 70mm
Key Info:
- Brand: Louise RC
- Part No: LNHA105
- Barcode: 4711233150146
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
