Louise RC LTX 1/10 Touring Car Kit, Part LNHA102

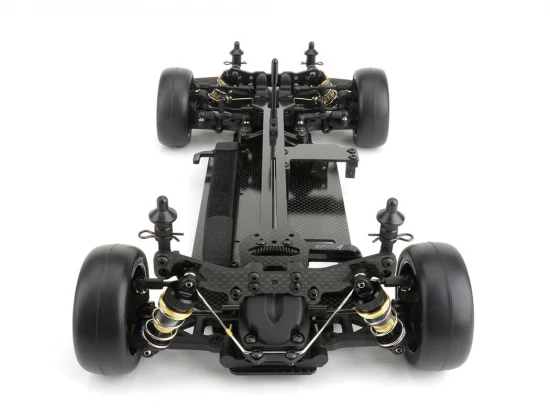

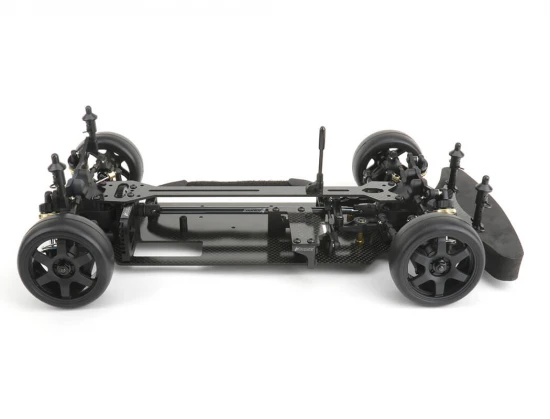

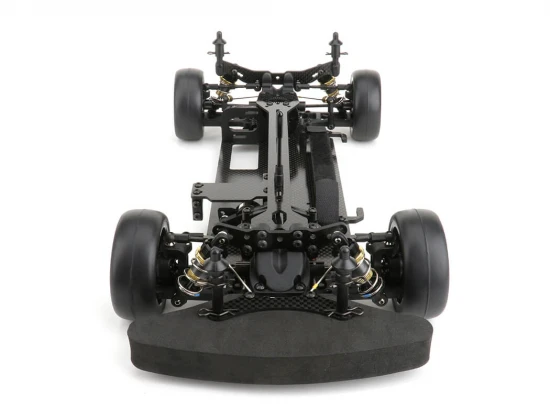

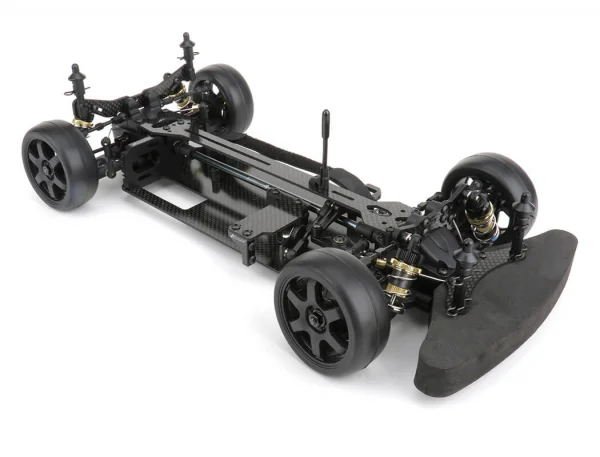

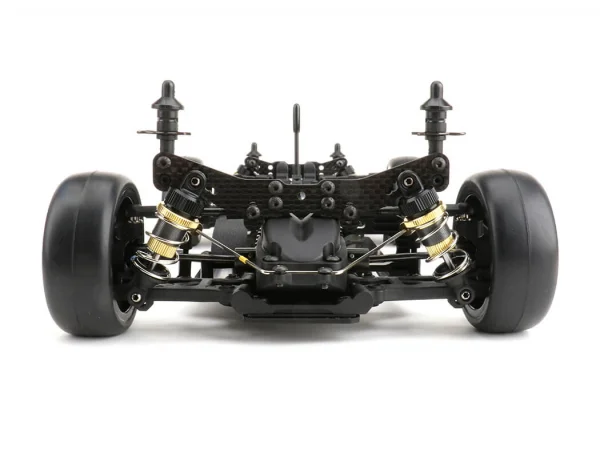

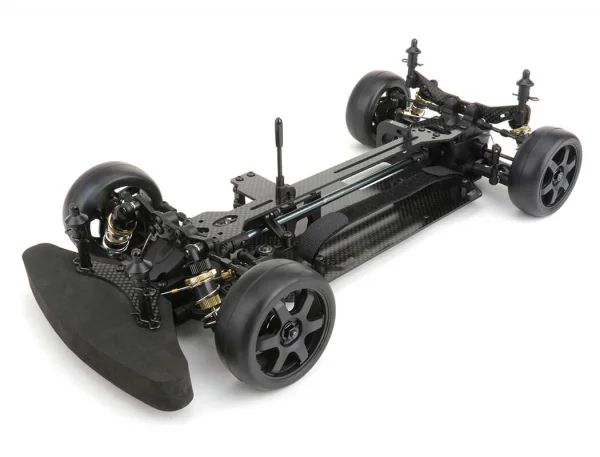

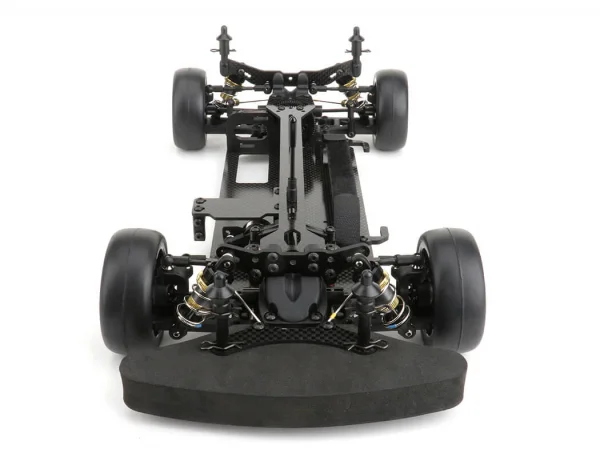

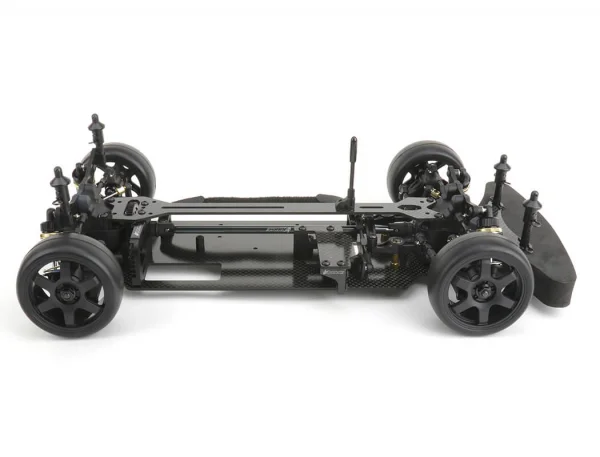

Louise RC LTX Touring Car Kit, part number LNHA102, is a 1/10 touring car kit with a shaft-driven 4WD drivetrain. It is built around a carbon-fibre chassis, upper deck and shock tower, with aluminium components used for the motor mount, servo mount, centre drive shaft, spur gear hub, shocks and 12mm hex hubs.

The drivetrain uses a CVD drive shaft, aluminium centre drive shaft and metal gear differential. Full bearing construction and turnbuckles are also listed among the kit features. Together, these components form the mechanical layout of the LTX touring car kit, while the shaft-drive system transfers power to all four wheels.

Features

The chassis structure combines carbon fibre with aluminium mounting and suspension components. Aluminium shocks are included in the design, along with an aluminium spur gear hub and 12mm hex hubs. The kit also includes a metal gear differential and CVD drive shaft, with turnbuckles used within the adjustable linkage system.

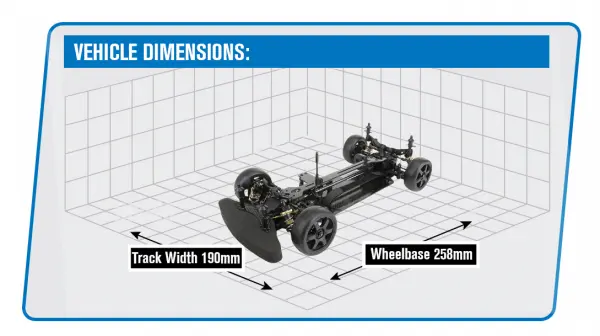

The dimensions and ratios below describe the 1/10 touring car platform. The 190mm track width and 258mm wheelbase define its main chassis proportions, while the stated internal and overall gear ratios identify the drivetrain gearing.

Specifications

• Drivetrain: Shaft-drive 4WD
• Track width: 190mm
• Wheelbase: 258mm
• Internal ratio: 2.47
• Gear ratio: 4.56
• Tyre diameter: 65mm
