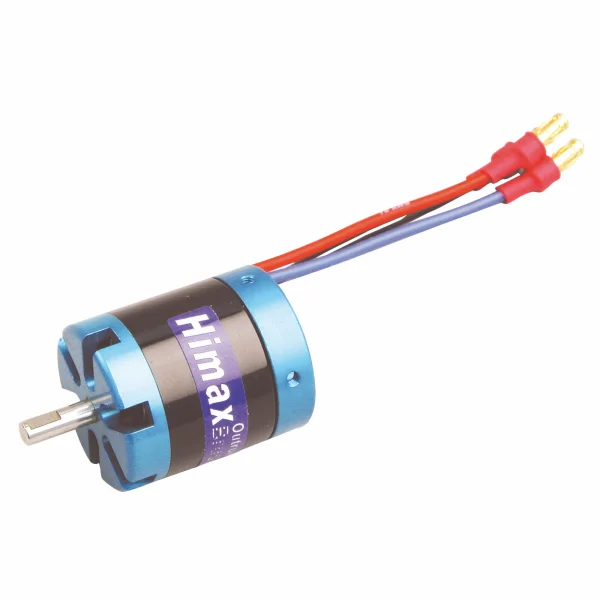

Multiplex O/Runner C 2816-1220 W. Accs 333017

The Multiplex O/Runner C 2816-1220 W. Accs (MPX333017) is a 1220kV, 28 mm brushless outrunner in the 200 W class for model aircraft. It is suitable for 3-D models around 500–700 g, aerobatic models up to 900 g, trainers up to about 1200 g, and gliders up to 2000 g when operated within the stated ranges.

Typical Operating Data

• 2S LiPo with 11 x 4.7 prop: current drain approx. 20.0 A
• 3S LiPo with 9 x 4.7 prop: current drain approx. 22.0 A

Key Features

• 1220kV
• 28mm motor diameter
• 4mm shaft diameter

Technical Specification

• RPM/V: 1220
• Cells (NiXX / LiPo): 6–9 / 2S–3S
• Optimum working range: 7–20 A
• Max current (15 s): 25 A
• Length: 33 mm
• Diameter: 28 mm
• Weight: 77 g
• Shaft diameter: 4 mm
• Mounting: 16 mm pattern, 4 x M2.5
• Connector: Bullet
• Colour: Blue
• Material: Aluminium
• Age recommendation: 14+
• Shipping weight: 0.25 kg (0.55 lb)
