Multiplex RX-6-DR Light M-LINK 2.4GHz Receiver (MPX55809)
Brand: Multiplex
Part No: MPX55809
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (2)
Show all 2 models
Frequently Bought With
Other items customers often buy with the Multiplex Receiver Rx-6-Dr Light M-Link 2.4 G 55809
Description

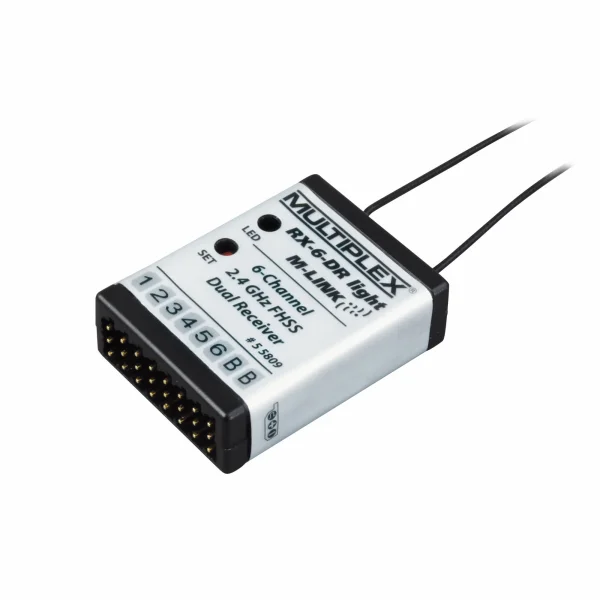

The Multiplex Receiver Rx-6-Dr Light M-Link 2.4 G 55809 is a compact, all-purpose six-channel receiver using MULTIPLEX 2.4 GHz M-LINK FHSS technology. Dual receiver diversity with two parallel receiving circuits helps deliver robust reception in a small, lightweight form factor—well suited to smaller RC aircraft and gliders.
An in-line connector layout and compact case make installation straightforward in tight spaces. Suggested compatibility includes slim glider fuselages such as F3B and F3J. An integral button and LED simplify binding, FAIL-SAFE programming, reset, and status indication.
Key Features
- Dual receiver diversity for reliable signal quality
- HOLD / FAIL-SAFE function
- Integral button and LED for Binding, FAIL-SAFE programming, RESET and status
- In-line connector arrangement for compact installations
Specifications
- Servo channels: 6
- Reception system: 2.4 GHz FHSS (M-LINK)
- Operating voltage: 3.5 V – 9.0 V
- Power supply: 4–5 NiXX cells; 2S LiPo / LiIo
- Operating temperature: -20°C to +55°C
- Dimensions (L x W x H): approx. 38 x 28 x 11.5 mm
- Weight: approx. 10 g
- Colour: Black
- Age recommendation: 14+
- Part number: MPX55809
Secured by Stripe
Multiplex Receiver Rx-6-Dr Light M-Link 2.4 G 55809 Manuals & Guides
Manuals & Guides
Specifications
This is a small, all-purpose six-channel receiver exploiting MULTIPLEX 2.4 GHz M-LINK technology.

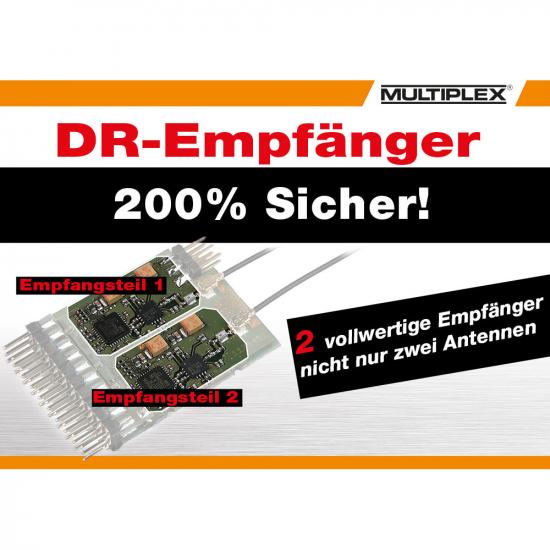

It is a dual receiver, featuring two complete receiving circuits operating in parallel (receiver diversity), ensuring excellent reception quality in spite of the unit's small dimensions.
The RX-6-DR light M-LINK is a particularly good choice for the smaller model as it is so light and compact. The in-line connector arrangement and compact case design make it suitable for installation in slim glider fuselages, e.g. F3B, F3J, …
- HOLD / FAIL-SAFE function
- Integral button and LED for Binding, FAIL-SAFE programming, RESET and operating status information
| Servo channel count: | 6 |
| Reception system: | 2.4 GHz FHSS |
| (Frequency Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 V … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Permissible operating temperature range: | - 20°C … + 55°C |
| Dimensions (L x W x H): | approx. 38 x 28 x 11,5 mm |
| Weight: | approx. 10 g |
Multiplex Receiver Rx-6-Dr Light M-Link 2.4 G 55809 Tech Specs:
- Weight: 0.23g / 0.01oz
- Shipping Weight: 0.23kg / 0.51lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Multiplex
- Part No: MPX55809
- Barcode: 4041033028094
- Frequency: 2.4Ghz
- Channels: 6 Channel
- Fitment: Option Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes B and B are Receiver battery sockets.
