Multiplex RX-7-DR Light M-LINK 2.4GHz Receiver 55810
Brand: Multiplex
Part No: MPX55810
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

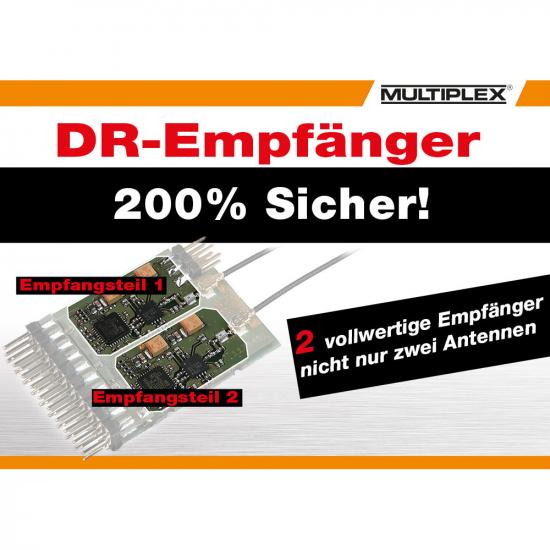

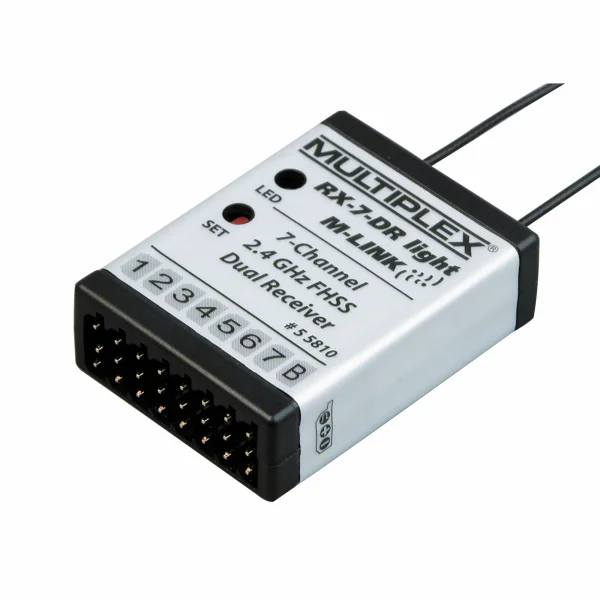

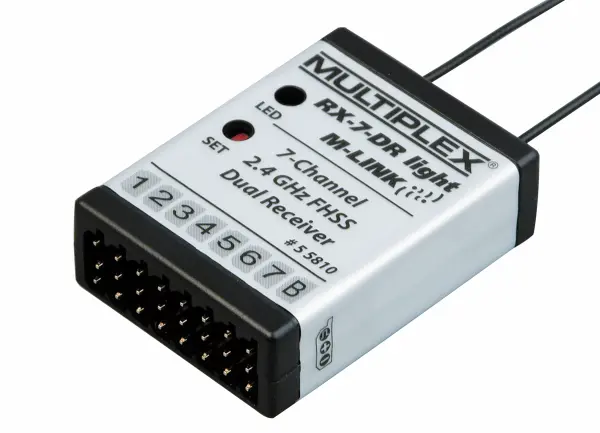

The Multiplex Receiver Rx-7-DR Light M-LINK 2.4 G (part number MPX55810) is a compact, all-purpose seven-channel receiver using MULTIPLEX 2.4 GHz M-LINK technology. Dual parallel receiving circuits (receiver diversity) deliver robust reception quality in a lightweight package. An in-line connector layout and slim case make it well suited to installations where space is at a premium, including narrow glider fuselages.
Key Features
- Seven-channel 2.4 GHz M-LINK FHSS receiver
- Dual receiver diversity architecture for reliable signal reception
- HOLD / FAIL-SAFE function
- Integral button and LED for binding, FAIL-SAFE programming, reset and status indication
- Compact, in-line connector arrangement for easy installation
Specifications
- Servo channels: 7
- Reception system: 2.4 GHz FHSS (Frequency Hopping Spread Spectrum)
- Operating voltage: 3.5–9.0 V
- Recommended power supply: 4–5 NiXX cells, 2S LiPo / Li-Ion
- Operating temperature range: −20°C to +55°C
- Dimensions (L × W × H): approx. 38 × 28 × 11.5 mm
- Weight: approx. 10 g
- Colour: Black
- Age recommendation: 14+
Suggested Compatibility
- Slim glider fuselages and similar space-constrained airframes (e.g. F3B, F3J)
Secured by Stripe
Multiplex Receiver Rx-7-Dr Light M-Link 2.4 G 55810 Manuals & Guides
Manuals & Guides
Specifications
This is a small, all-purpose seven-channel receiver exploiting MULTIPLEX 2.4 GHz M-LINK technology. It is a dual receiver, featuring two complete receiving circuits operating in parallel (receiver diversity), ensuring excellent reception quality in spite of the unit's small dimensions.
The RX-7-DR light M-LINK is a particularly good choice for the smaller model as it is so light and compact. The in-line connector arrangement and compact case design make it suitable for installation in slim glider fuselages, e.g. F3B, F3J, …
- HOLD / FAIL-SAFE function
- Integral button and LED for Binding, FAIL-SAFE programming, RESET and operating status information Specification:
Servo channel count 7
Reception system 2.4 GHz FHSS
(Frequency Hopping Spread Spectrum)
Operating voltage 3.5 V … 9.0 V
Power supply 4 - 5 NiXX cells, 2S LiPo / LiIo
Permissible operating temperature range - 20°C … + 55°C
Dimensions (L x W x H) approx. 38 x 28 x 11,5 mm
Weight approx. 10 g
Multiplex Receiver Rx-7-Dr Light M-Link 2.4 G 55810 Tech Specs:
- Weight: 0.23g / 0.01oz
- Shipping Weight: 0.23kg / 0.51lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Multiplex
- Part No: MPX55810
- Barcode: 4041033038109
- Frequency: 2.4Ghz
- Channels: 7 Channel
