Multiplex Rx-7-DR M-LINK Receiver 2.4GHz (MPX55811)
Brand: Multiplex
Part No: MPX55811
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

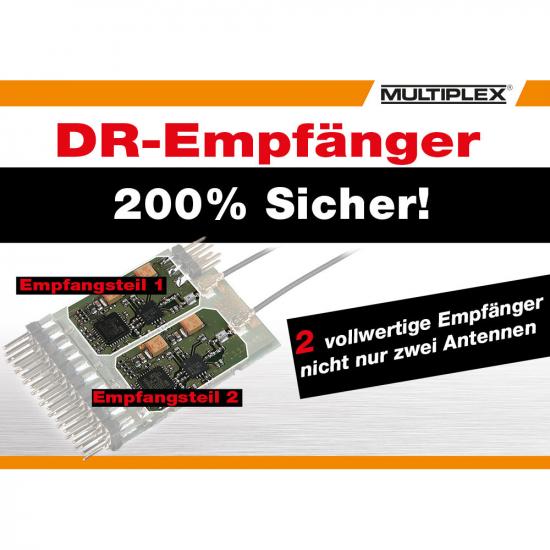

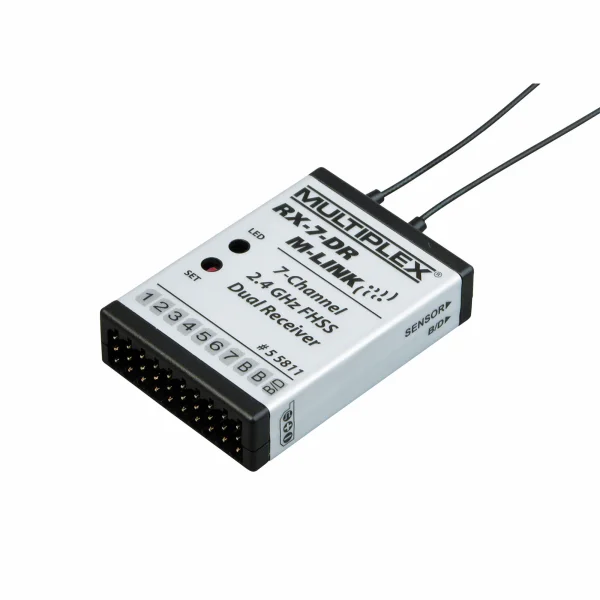

The Multiplex Receiver Rx-7-DR M-LINK 2.4 GHz (MPX55811) is a compact seven-channel FHSS receiver designed for dependable radio control in models where space is at a premium. It features two complete receiving circuits operating in parallel (receiver diversity) and a dedicated amplification stage, aimed at delivering high sensitivity, excellent reception quality and an effective system range. The in-line connector layout and small footprint make installation straightforward.
Features
- HOLD / FAIL-SAFE function
- Telemetry / feedback channel capability
- Integral sensor interface for connecting external sensor modules (max. 16)
- Prepared for dual-receiver diversity operation (diversity lead # 8 5070 required)
- Integral error counter / data logger (voltage errors, signal errors)
- MULTImate compatible
- Integral PC interface
Key Specifications
- Servo channel count: 7
- Reception system: 2.4 GHz FHSS (M-LINK)
- Operating voltage: 3.5–9.0 V
- Power supply: 4–5 NiXX cells; 2S LiPo / LiIo
- Permissible operating temperature range: -20°C to +55°C
- Dimensions (L x W x H): approx. 55 x 35 x 11.5 mm
- Weight: approx. 25 g
- Colour: Black
- Age recommendation: 14+
Secured by Stripe
Multiplex Receiver Rx-7-Dr M-Link 2.4 Ghz 55811 Manuals & Guides
Manuals & Guides
Specifications
High-quality seven-channel / nine-channel receivers exploiting MULTIPLEX 2.4 GHz M-LINK technology. These receivers utilise the latest SMT construction, and are suitable for all types of model. Their compact dimensions and in-line connector arrangement allow them to fit even in models with limited internal space. These receivers feature two complete receiving circuits operating in parallel (receiver diversity). In conjunction with a special signal amplification circuit this ensures very high sensitivity, excellent reception quality and maximum effective system range.
- HOLD / FAIL-SAFE function
- Telemetry / Feedback channel capability
- Integral sensor interface for connecting external sensor modules (max. 16)
- Prepared for dual-receiver diversity operation (diversity lead # 8 5070 required)
- Integral error counter / data logger (voltage errors, signal errors)
- MULTImate compatible
- Integral PC interface
| Servo channel count: | 7 |
| Reception system: | 2.4 GHz FHSS |
| (Frequency Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 V … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Permissible operating temperature range: | - 20°C … + 55°C |
| Dimensions (L x W x H): | approx. 55 x 35 x 11,5 mm |
| Weight: | approx. 25 g |
Multiplex Receiver Rx-7-Dr M-Link 2.4 Ghz 55811 Tech Specs:
- Weight: 0.29g / 0.01oz
- Shipping Weight: 0.29kg / 0.64lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Multiplex
- Part No: MPX55811
- Barcode: 4041033028117
- Frequency: 2.4Ghz
- Channels: 7 Channel
