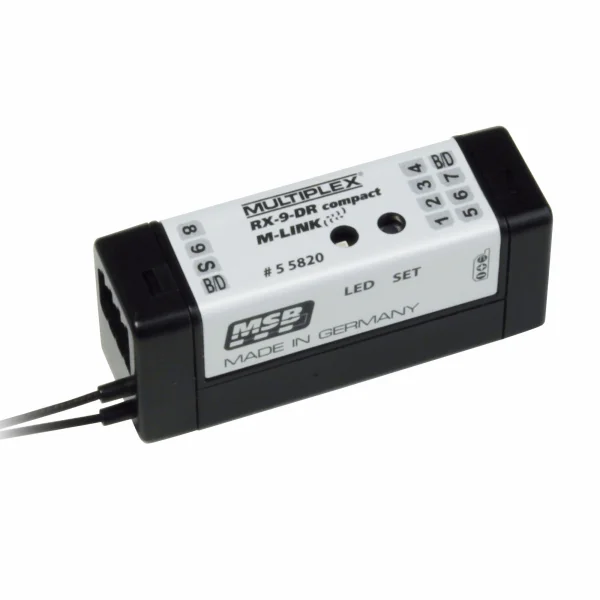

Multiplex Receiver Rx-9-Dr Compact Ml 2.4 G 55820

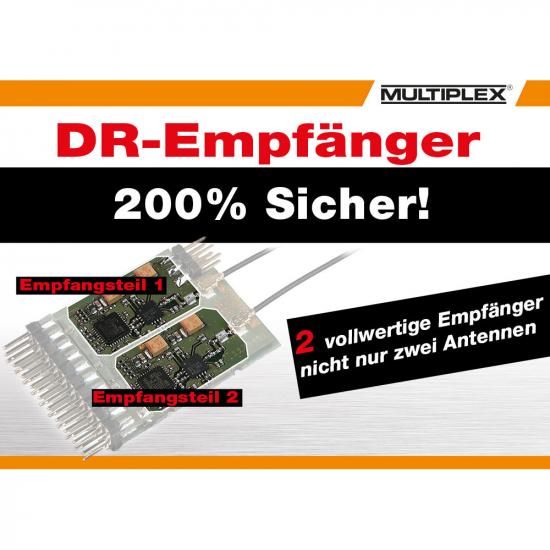

The Multiplex Receiver Rx-9-DR Compact M-LINK 2.4G (MPX55820) delivers top-level performance in a slim, lightweight format. Aimed at discerning glider pilots flying F3B and F3J models, it shares the same core technology as the brand’s pro-series receivers, including dual receive sections and high-performance signal pre-amplifiers for outstanding security and control fidelity.

With nine channels, robust telemetry, and a broad operating voltage range, this RX-9-DR compact unit is designed for reliable operation in high-demand sailplane and performance applications while keeping installation neat and efficient.

Key Features

• Ultra-compact dual receiver with 9 channels
• Signal pre-amplification for maximum sensitivity
• Telemetry/downlink capability: receiver battery voltage and signal quality (LQI) without separate sensors
• Integral sensor interface for external sensors via MSB (MULTIPLEX Sensor Bus), including other makes using MSB
• HOLD / FAIL-SAFE function
• Integral button and LED for binding, FAIL-SAFE programming, RESET and status indication
• Wide operating voltage range: 3.5 – 9.0 V (supports high-voltage servos)
• Option of two-receiver mode (= double diversity)
• Integral error counter / data logger (operating voltage errors, signal errors)
• Sum signal output (e.g. for FBL systems)
• MULTImate support for supplementary receiver settings (e.g. HOLD / FAIL-SAFE times, per-channel settings, telemetry options)
• Integral PC interface for firmware updates and receiver setup via PC

Specifications

• Servo channel count: 9
• Receive system: 2.4 GHz FHSS
• Operating voltage: 3.5 V – 9.0 V
• Power supply: 4–6 NiXX cells, 2S LiXX
• Permissible operating temperature range: -20°C – +55°C
• Dimensions (L x W x H): 53.5 x 17.5 x 22.5 mm
• Weight: 18.5 g
