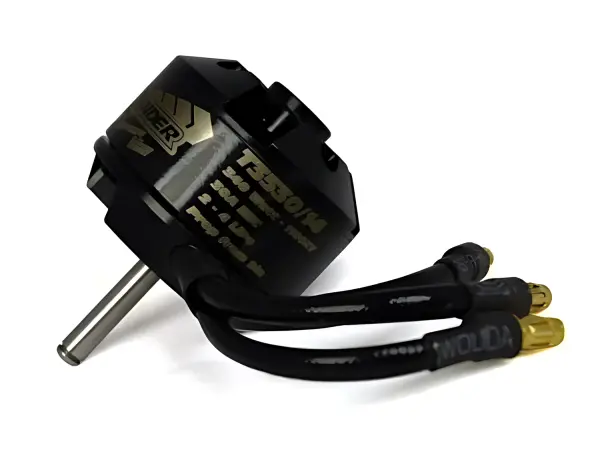

Overlander Tornado Thumper V3 3530/14 1100KV - Brushless Outrunner RC Motor

Brushless Outrunner RC Motor - Tornado Thumper V3 3530/14 1100KV - NEW FOR 2015!

• 340 watt motor
• 6-12 NiMh cells
• 2-4 LiPo cells
• Prop size from 9x5in to 10x4.7 (larger prop with less cells)
• Shaft Diameter 4mm
• Motor weight 70gm (excluding accessory kit)
• 3.5mm gold connectors
• Speed Controller Recommended 30A ESC

The sheer power of Thumper brushless motors far exceeds many motors costing 2 - 3 times their price. All of the Overlander Thumper V3 motors are manufactured to Overlanders demanding standards, using the finest quality components. Our High Tech manufacturer uses state of the art CNC machine tools, giving the unique Overlander Thumper V3 design, this design means a lower weight motor with our exclusive black finish for better heat dissipation.

Every component of the motors are manufactured from the highest quality materials, only the best Neodym magnets are used along with special high temperature wire for windings, giving these motors reliability normally associated with much more expensive products.

Overlander Thumper motors are designed to provide reliable power for your model at respectable prices, a total performance package when used in conjunction with our XP2 Speed Controllers.

Product SKU KV (rpm/v) LiPo Cells (S) NiMH Cells (S) Idle Current (a) ESC (a) Power (w) Weight (g) Prop Size Shaft (mm) From To T2822/27 V3 2973 1200 2 - 4 6 - 12 0.5 20 85 28 7 x 5 (4S) 8 x 5 (2S) 3.2 T2826/09 V3 2974 1900 2 - 4 6 - 12 1.5 20 105 49 7 x 5 (4S) 8 x 4 (2S) 3.2 T2826/18 V3 2975 1000 2 - 4 6 - 12 0.5 20 140 40 8 x 5 (4S) 9 x 4.7 (2S) 3.2 T2836/08 V3 2976 1120 2 - 4 6 - 12 1.2 20 270 67 9 x 6 (4S) 11 x 5.5 (2S) 4 T3530/14 V3 2977 1110 2 - 4 6 - 12 1.5 30 340 70 9 x 5 (4S) 10 x 4.7 (2S) 4 T3536/05 V3 2978 1500 2 - 4 6 - 12 2.8 30 408 98 8 x 4 (4S) 10 x 6 (2S) 4 T3536/08 V3 2979 1050 2 - 4 6 - 12 1.5 30 442 98 9.5 x 5 (4S) 11 x 5.5 (2S) 4 T3548/05 V3 2980 900 2 - 4 6 - 12 1.5 60 710 157 11 x 8 (4S) 14 x 7 (2S) 4 T4240/10 V2 1412 890 3-7 10 - 20 2.6 60 540 127 12 x 6 (7S) 14 x 8 (3S) 5 T4260/06 V3 2985 500 3-7 10 - 20 4.3 60 900 264 13 x 6 (7S) 15 x 8 (3S) 5 T5045/10 V3 2986 720 3-8 10 - 22 1.7 80 860 188 12 x 6 (8S) 14 x 8 (3S) 8 T5055/06 V3 2987 580 3-8 10 - 22 2.3 80 1280 279 14 x 6 (8S) 17 x 10 (3S) 8 T5065/08 V2 857 320 3-8 10 - 22 1.9 80 1600 382 16 x 8 (8S) 19 x 10 (3S) 8 T6354/16 V2 858 200 4-10 10 - 28 0.9 80 2210 471 18 x 10 (10S) 20 x 10 (4S) 10 BM400 V3 1688 2100 2 - 4 6 - 12 0.8 30 220 114 6 x 4 (2-4S) 3.2 BM600 V3 848 1500 3-5 10 - 16 1.4 60 450 177 8 x 6 (5S) 9 x 4 (3S) 5

NOTE: Propellers should always be checked with a Watt Meter to determine the correct diameter snd pitch. The larger the propeller, the lower the number of cells.

Key Info:

• Brand: Overlander
• Part No: OL-2977
• Barcode: 5060386111047
