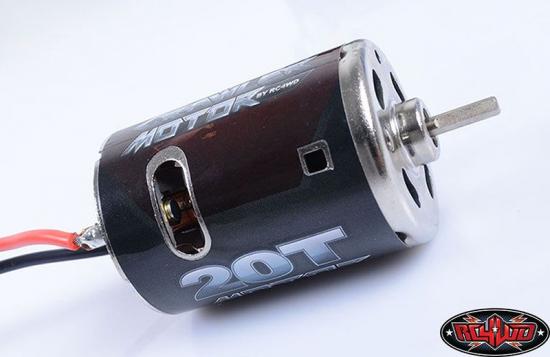

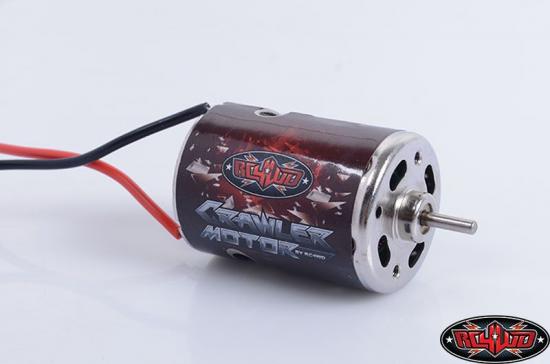

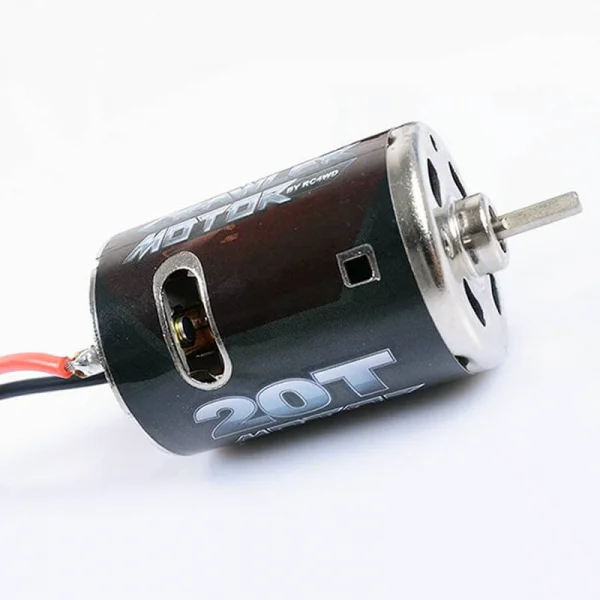

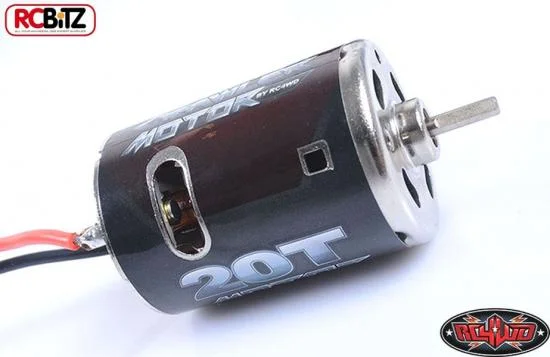

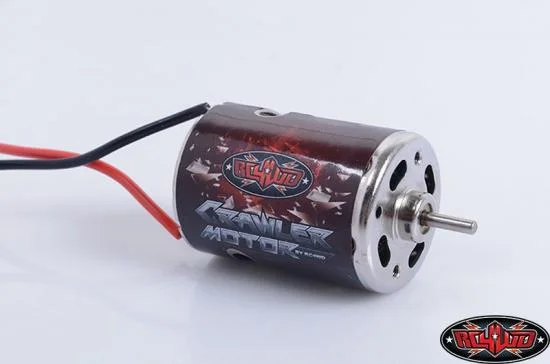

RC4WD 540 Crawler Brushed Motor 20T (Z-E0065)

The RC4WD 540 Crawler Brushed Motor 20T (Z-E0065) is a standard-size 540 can tuned for rock climbing and scale driving. With suggested compatibility across many popular RC trucks and cars, it pairs a chrome-plated steel case with a high-torque magnet and rotor, plus a built-in capacitor to help minimise glitching.

Specifications

• Custom-made 540 steel case with chrome-plated finish
• Built-in capacitor for minimising glitch
• High-torque magnet and rotor
• Small footprint: 50mm length
• Tuned for rock climbing and scale driving
• Polished bushings
• Body OD: 35.5mm
• Length: 50mm

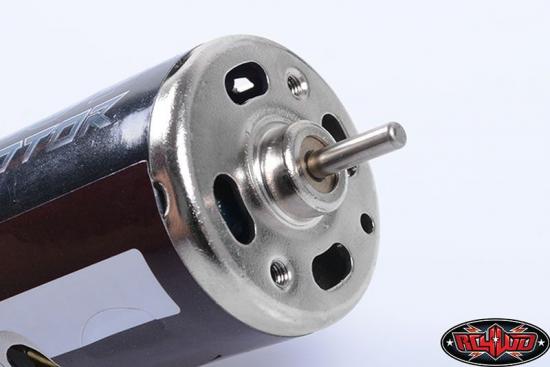

• Output shaft length: 11mm
• Output shaft OD: 3.1mm
• Min/max voltage range: 2.4V–30V
• Weight: 156g

Performance Specs

• No-load: 20,000 RPM @ 7.2V (±10%), 2A current
• Rated load: 18,400 RPM @ 7.2V (±10%), 7.92A current
• Designed operating temperature range: −10°C to +60°C
• Shaft end play: 0.1mm to 0.5mm
• Noise level: < 78 dB

What’s Included

• 1x 540 Crawler Brushed Motor 20T

Optional Parts

• 540 Crawler Brushed Motor 80T (Z-E0001)
• 540 Crawler Brushed Motor 65T (Z-E0002)
• 540 Crawler Brushed Motor 55T (Z-E0003)
• 540 Crawler Brushed Motor 45T (Z-E0004)
• 540 Crawler Brushed Motor 35T (Z-E0005)
• 540 Crawler Brushed Motor 27T (Z-E0067)
