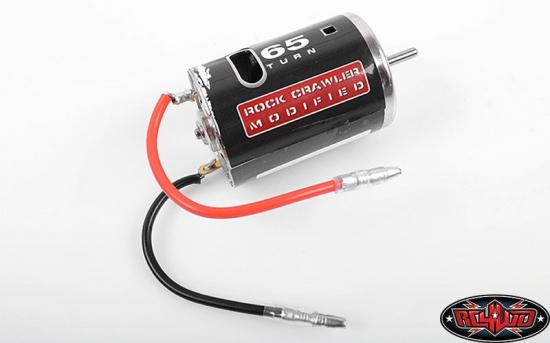

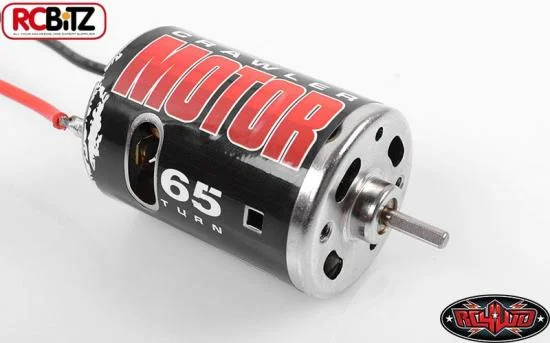

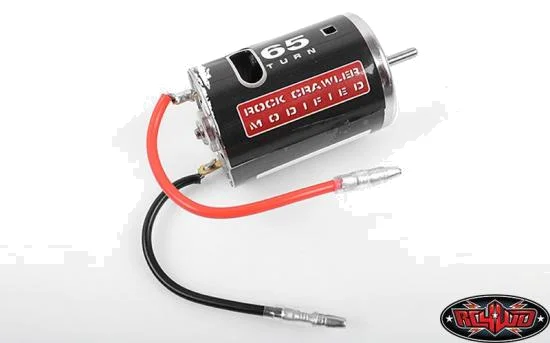

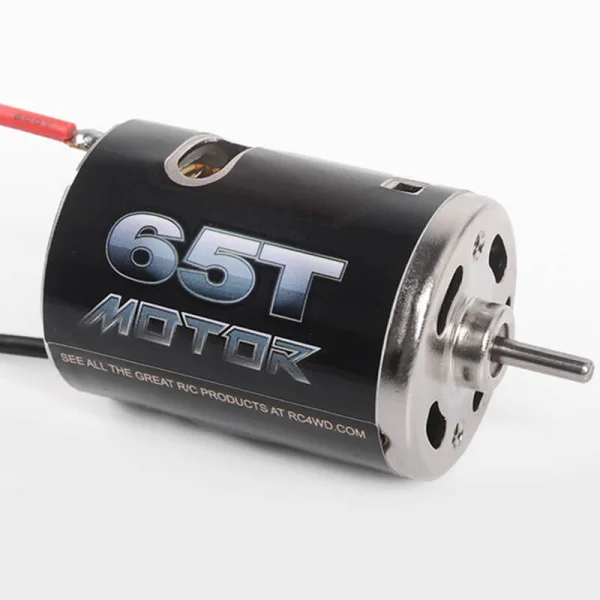

RC4WD 540 Crawler Brushed Motor 65T
Brand: RC4WD
Part No: Z-E0002
Shadow Stock: Usually ships next day
The RC4WD 540 Crawler Brushed Motor 65T (Z-E0002) is tuned for smooth, precise low-speed control and strong torque ideal for rock crawling and scale trail driving. It features a chrome-plated steel 540 can, built-in capacitor to minimise glitches, and a compact 50 mm length to suit tight installations. Pre-wired with 3 mm bullet connectors for easy setup.
Suggested Compatibility
- Bully
- AX10
- Trail Finder
- SCX10 Honcho
- SCX10 Dingo
- Wraith
- Ridgecrest
Key Features
- Custom-made 540 steel case with chrome-plated finish
- Built-in capacitor to minimise glitching
- High-torque magnet and rotor
- Pre-wired with 3 mm bullet connectors (Axial ESCs are 4 mm but can be crimped up)
- Fits 3 mm pinions
- Small footprint: 50 mm long
- Tuned for rock climbing and scale driving
- Polished bushings (non-replaceable)
General Performance Specs
- Designed operating temperature: -30°C to +80°C
- Motor end play: 0.50 mm max
- Noise level: < 60 dB
Performance Specs – 65T
- No-load @ 7.2 V: 7000 RPM (±10%), 0.65 A
- Max efficiency @ 7.2 V: 5900 RPM (±10%), 2.79 A
What’s Included
- 1x RC4WD 540 Crawler Brushed Motor 65T (Z-E0002)
Consider using motor spray after trail runs to help keep the motor in good condition.
Secured by Stripe
Custom made to fit all popular truck such as Bully, AX10, Trail Finder, SCX10 Honcho and Dingo and Wraith and Ridgecrest. You can choose one of 5 different numbers of turns from 35t - 80t. The higher the turn cound the slower the motor but the higher the torque.
- Custom made 540 steel case
- Chrome plated case
- Build in capacitor for minimizing glith
- High torque magnet and rotor
- Pre wired with 3mm bullet connectors for easy installation, (Axial ESC are 4mm but can be crimped up.)
- Will fit all 3mm pinions, See HERE
- Small footprint (50mm long)
- Tuned for rock climbing and scale driving
- Polished Bushings (non replaceable)
Performance Specs for all sizes:
- Designed oprating temperature range: -30°C to +80°C
- Motor end play : .50mm max
- Noise level: < 60db
Performance Specs 35t:
- (At no load) RPM @ 7.2V : 12500 (±10%25), 1.25Amp Current
- (Max Efficiency) RPM @ 7.2V : 10400 (±10%25), 4.62Amp Current
Performance Specs 45t:
- (At no load) RPM @ 7.2V : 9500 (10%25), .95Amp Current
- (Max Efficiency) RPM @ 7.2V : 8100 (10%25), 4.29Amp Current
Performance Specs 55t:
- (At no load) RPM @ 7.2V : 8000 (±10%25), .75Amp Current
- (Max Efficiency) RPM @ 7.2V : 6800 (±10%25), 3.35Amp Current
Performance Specs 65t:
- (At no load) RPM @ 7.2V : 7000 (±10%25), .65Amp Current
- (Max Efficiency) RPM @ 7.2V : 5900 (±10%25), 2.79Amp Current
Performance Specs 80t:
- (At no load) RPM @ 7.2V : 5500 (±10%25), .45Amp Current
- (Max Efficiency) RPM @ 7.2V : 4450 (±10%25), 1.38Amp Current
Size comparison:
What's included:
- 1x RC4WD 540 Crawler Brushed Motor (size and turn depends on your selection above)
You may want to consider some Motor Spray to help keep your motor in good condition when you return from the trails and rocks.
Key Info:
- Brand: RC4WD
- Part No: Z-E0002
- Barcode: 639302606384
