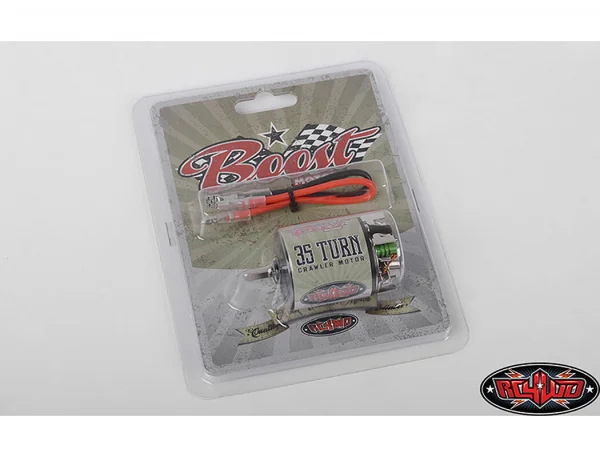

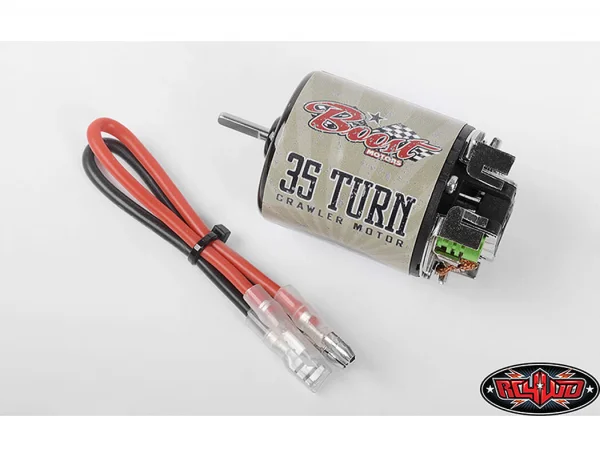

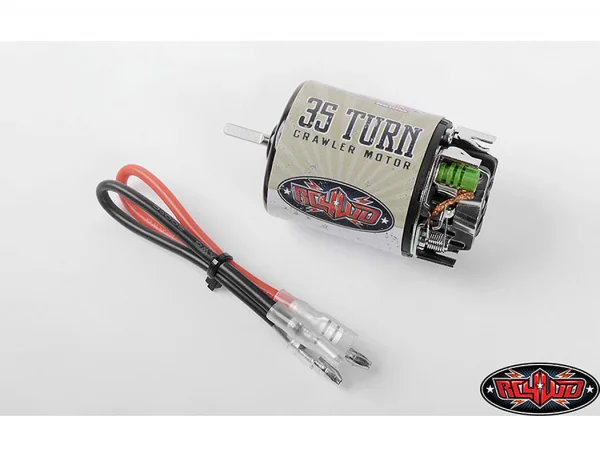

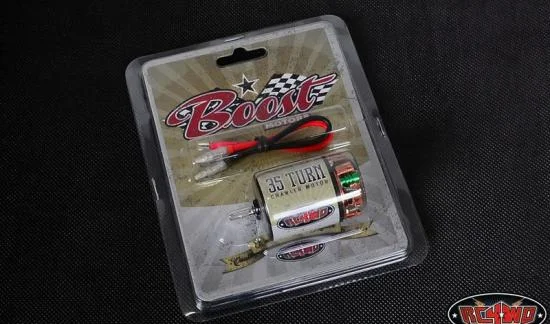

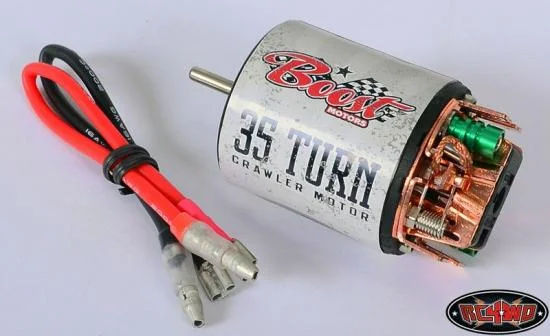

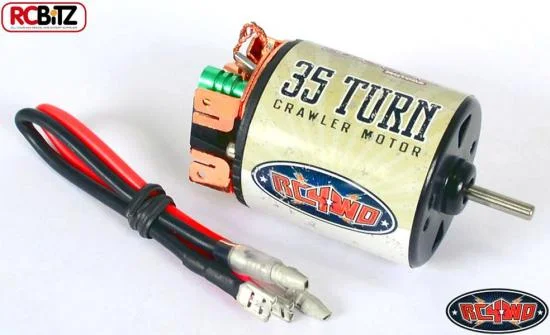

RC4WD 35T Boost Rebuildable 540 Crawler Motor Z-E0045

The RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045) is built for crawling and trail driving, delivering smooth, high-torque control. A brushed design with a machine-wound armature and dual precision ball bearings provides reliable performance, while adjustable timing lets you fine-tune the power delivery to suit terrain and driving style.

Completely rebuildable to extend service life, this 35T 540 motor also includes motor lead wires with connectors for a straightforward, plug-and-play installation.

Features

• Brushed motor design
• Dual precision ball bearings
• Machine wound armature
• High torque specifications
• Completely rebuildable
• Built for crawling and trail driving
• Adjustable timing

Specifications

• Can Length: 52.9mm (2.08")
• Can Diameter: 36mm (1.4")
• Shaft Length: 13mm (0.51")
• Shaft Diameter: 3.15mm (0.12")
• Number of Turns: 35
• Included motor lead wires with connectors (plug and play)
• Min and Max Voltage Range: 2.4V–30V

What’s Included

• 1x 35T Boost Rebuildable Crawler Motor
• 1x Pair of power wires with connectors

Suggested Compatibility

• RC4WD Trail Finder 3 RTR w/ Mojave II Hard Body Set (Z-RTR0045)
• Axial SCX10 III
