RC4WD 45T Boost Rebuildable Crawler 540 Motor
Brand: RC4WD
Part No: Z-E0041
£43.69
RRP £45.99
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (18)
RC4WD Bully II Moa Competition Crawler Kit
RC4WD Carbon Assault 1:10 Monster Truck KIT RC4WD
RC4WD Gelande II RTR - 2015 Land Rover Defender D90
RC4WD Gelande II RTR Truck w/Cruiser Body Set RC4WD
RC4WD Gelande II Truck Kit
RC4WD Gelande II Truck Kit - 2015 Land Rover Defender D90
RC4WD Gelande II Truck Kit With Cruiser Body Set 2025
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Black
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Red
RC4WD Trail Finder 2 RTR with 1985 Toyota 4Runner Hard Body Set - Red
RC4WD Trail Finder 2 RTR With 1985 Toyota Pickup Hard Body Set
RC4WD Trail Finder 2 Truck Kit SWB
RC4WD Trail Finder 2 Truck Kit With 1982 Toyota Pickup Body Set
RC4WD Trail Finder 2 Truck Scale Builders Kit
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Blue
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Red
RC4WD Trailfinder 2 RTR LWB With Chevrolet K10 Scottsdale Body
RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set RC4WD
Description

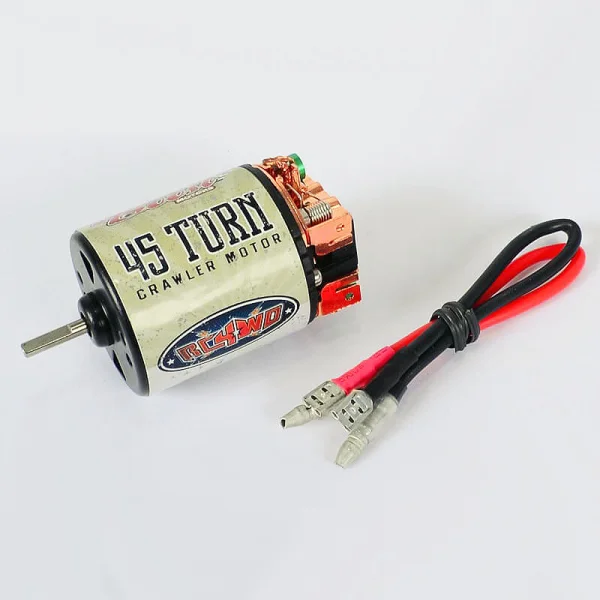

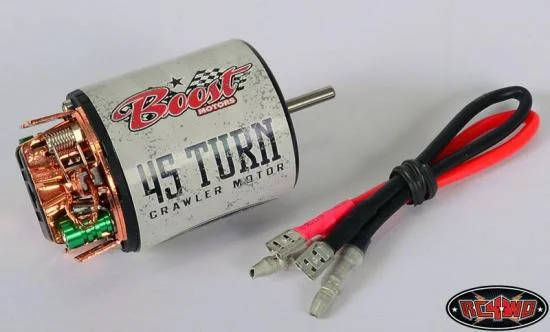

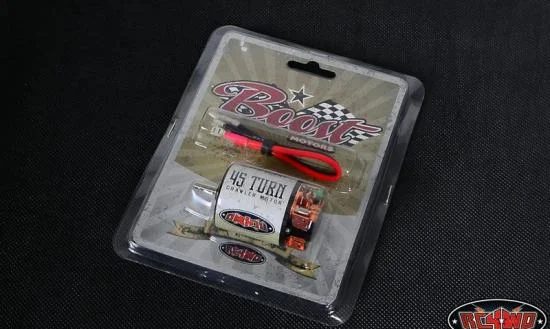

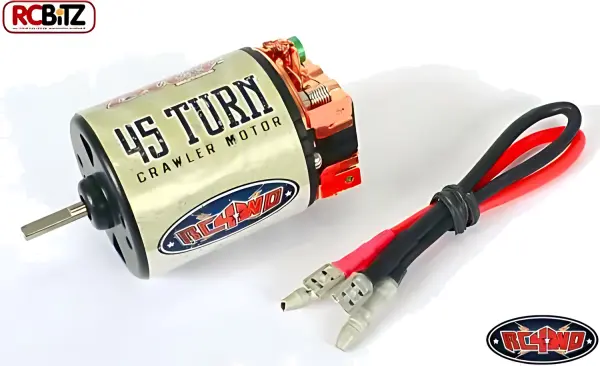

The RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041) offers smooth, controllable torque for crawling and trail driving. Built for reliability and serviceability, it features a fully rebuildable design, adjustable timing, and dual precision ball bearings. Included lead wires with connectors make installation straightforward and plug-and-play.
Features
- Brushed motor design
- High torque specifications for crawling, scalers, trial trucks and competition
- Completely rebuildable
- Adjustable timing
- Dual precision ball bearings
- Machine wound armature
- Included motor lead wires with connectors (plug-and-play)
- Min–max operating voltage: 2.4V–30V
- Number of turns: 45
Specifications
- Can length: 52.9mm (2.08")
- Can diameter: 36mm (1.4")
- Shaft length: 13mm (0.51")
- Shaft diameter: 3.15mm (0.12")
What's Included
- 1x 45T Boost Rebuildable Crawler Motor
- 1x Pair of power wires with connectors
Secure Payments
Secured by Stripe
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor Manuals & Guides
Specifications
RC4WD Brushed 45T Boost Rebuildable Crawler Motor
This is a fully rebuildable motor that can be used for crawler, scalers, trial trucks, competition and more. All attention to detail has been done and its ready to bolt in and supply you with loads of power.
Key Info:
This is a fully rebuildable motor that can be used for crawler, scalers, trial trucks, competition and more. All attention to detail has been done and its ready to bolt in and supply you with loads of power.
Specifications:
- Brushed motor design
- Dual precision ball bearings
- Machine wound armature
- High torque specifications
- Completely rebuildable
- Built for crawling and trail driving
- Adjustable timing
- Can Length: 52.9mm (2.08")
- Can Diameter: 36mm (1.4")
- Shaft Length: 13mm (0.51")
- Shaft Diameter: 3.15mm (0.12")
- Number of Turns: 45
- Included motor leads wires with connectors (Plug and Play)
- Min and Max Voltage Range: 2.4V-30V
- 1x 45T Boost Rebuildable Crawler Motor
- 1x Pair of Power Wires with/connectors
Key Info:
- Brand: RC4WD
- Part No: Z-E0041
- Barcode: 610373637132
- Fitment: Option Part
