RC4WD Super Scale 70mm White Shocks (Internal Springs)
Brand: RC4WD
Part No: Z-D0045
€38.89
RRP €40.94
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (10)
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Black
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Red
RC4WD Trail Finder 2 RTR with 1985 Toyota 4Runner Hard Body Set - Red
RC4WD Trail Finder 2 RTR With 1985 Toyota Pickup Hard Body Set
RC4WD Trail Finder 2 Truck Kit SWB
RC4WD Trail Finder 2 Truck Kit With 1982 Toyota Pickup Body Set
RC4WD Trail Finder 2 Truck Scale Builders Kit
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Blue
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Red
RC4WD Trailfinder 2 RTR LWB With Chevrolet K10 Scottsdale Body
Description
The RC4WD Super Scale 70mm White Shocks with Internal Springs (Z-D0045) deliver clean, scale looks and smooth performance. CNC machined from billet aluminium with a smooth white painted finish, these shocks use an internal spring design and updated internals for a tidy, realistic appearance on your scale crawler.
Features
- CNC machined
- Billet aluminium
- Smooth white painted finish
- Internal spring design
- New internal design
- Uses shock boots (see optional parts)
Specifications
- Hole to hole (compressed): 2.12in / 53.93mm
- Hole to hole (uncompressed): 2.75in / 70mm
- Overall length: 3.11in / 79mm
- Travel length: 0.63in / 16mm
- Shock body OD: 0.39in / 10mm
- Shaft diameter: 0.14in / 3.5mm
- Each weight: 1.48oz / 42g
What's Included
- 2x Super Scale 70mm White Shocks with Internal Springs (White)
Optional Parts
- Black Rubber Boot (Z-S0891)
- Red Rubber Boot (Z-S0948)
- Yellow Rubber Boot (Z-S0962)
- Blue Rubber Boot (Z-S0961)
Suggested Compatibility
- Trail Finder 2 Short WB (Z-K0045)
Notes
- Use blue (medium) thread lock on the bottom shock shaft rod end before installing to help keep it in place.
Secure Payments
Secured by Stripe
RC4WD Super Scale 70mm White Shocks with Internal Springs Manuals & Guides
Specifications

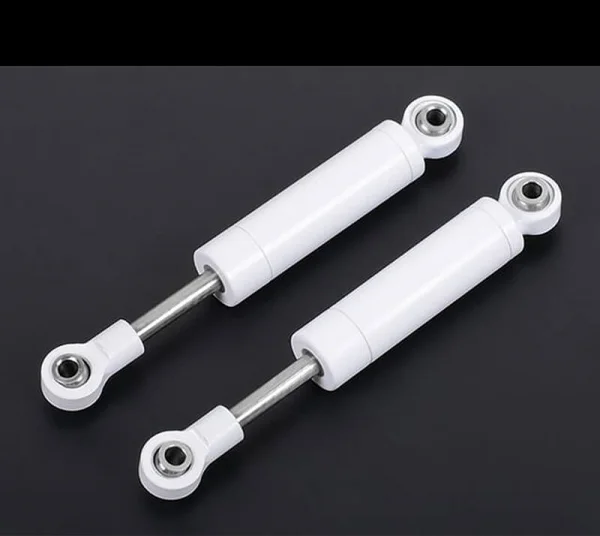

Super Scale 70mm White Shocks with Internal Springs
Specifications:
- CNC Machined
- Billet Aluminum
- Smooth White Painted Finish
- Internal Spring Design
- New Internal Design
- Uses Shock Boots (details below)
- Hole to Hole (Compressed): 2.12in / 53.93mm
- Hole to Hole (Uncompressed): 2.75in / 70mm
- Overall Length: 3.11in / 79mm
- Travel Length: 0.63in / 16mm
- Shock Body OD: 0.39in / 10mm
- Shaft Diameter: 0.14in / 3.5mm
- Each Weight: 1.48oz / 42g

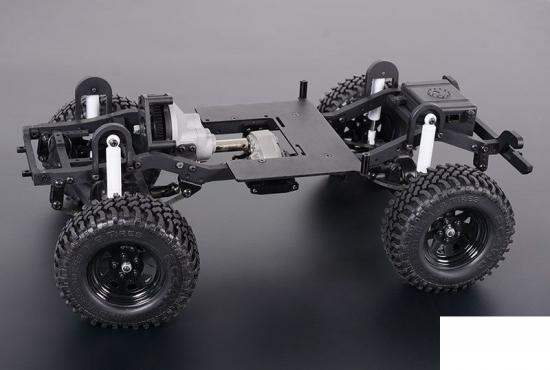

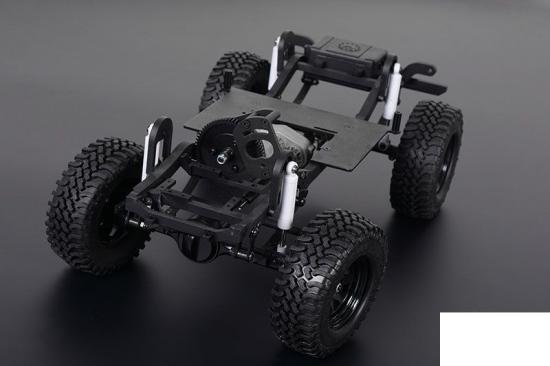

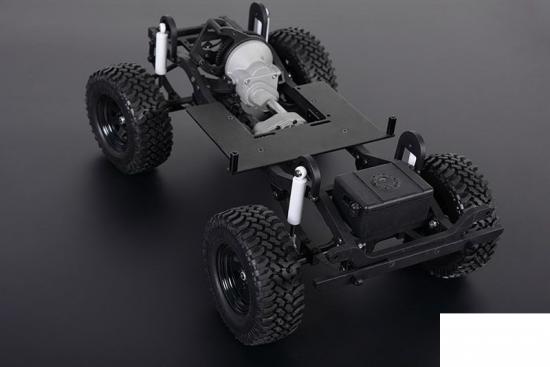

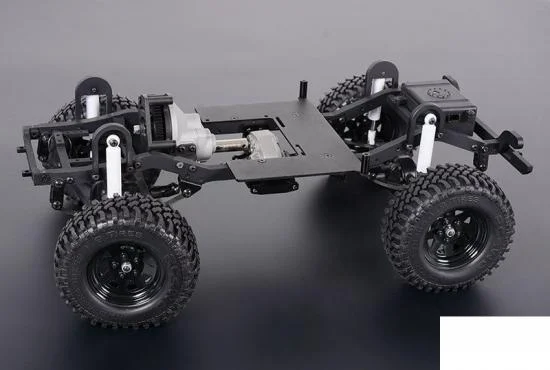

Shown installed on Trail Finder 2 Short WB (Z-K0045) for example (Not Included)

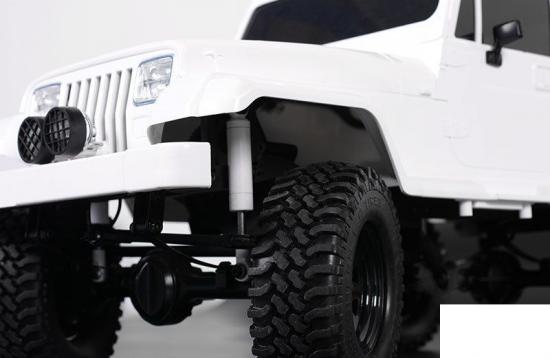

Shown installed on Trail Finder 2 Short WB (Z-K0045) with Tamiya Jeep Wrangler body for example (Not Included)
Different Shocks boots shown installed on 80mm Shock for example (Not Included)
What's Included:
- 2x Super Scale 70mm White Shocks with Internal Springs (White)
Optional Parts:
- For Black Rubber Boot Z-S0891
- For Red Rubber Boot Z-S0948
- For Yellow Rubber Boot Z-S0962
- For Blue Rubber Boot Z-S0961
Notes:
- Fits Trail Finder 2 Short WB (Z-K0045)
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
Key Info:
- Brand: RC4WD
- Part No: Z-D0045
- Barcode: 639302578667
